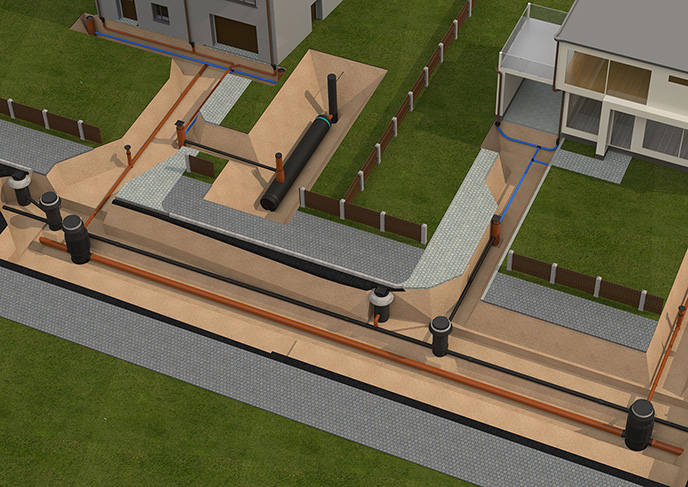

Rain and domestic sewerage network connections of private houses

CID 400/315D

Drainage inspection chamber with sediment trap and telescopic pipe

Connections 110, 160, 200, 250 mm

(inactive) Road gullies DN 600 (500x500 grate)

With 500 x 500 mm grate for construction along road curb

Connections DN/OD 110, 160, 200, 250, 315 mm

Inspection chamber CSS 200.160

Flow-through inspection chamber with telescopic pipe

Connections DN/OD 110, 160, 200 mm

Inspection chamber CSL 600

With corrugated pipe shaft

Connections DN/OD 160, 200, 250, 315 mm

Manhole CSL 1000.625

With an injection moulded shaft rings

Connections DN/OD 160, 200, 250, 315, 400 mm

EVORAIN

Storm water pipe, EN 13476-3 type B

SN8 [kN/m²], DN/OD 160, 200, 250, 315, 400 mm

RIGID MULTI PP

Smooth 3-layer sewage pipes, EN 13476-2 type A

SN8 [kN/m²], DN/OD 110, 160, 200, 250, 315, 400 mm

EVODRAIN FLEX without filter

360° Totally perforated (TP), HDPE, DIN 4262-1

SN4 or SN8 [kN/m²], DN/OD 63, 75, 90, 110, 125, 160 [mm]

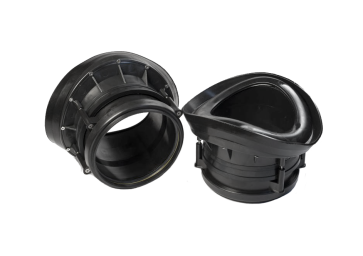

Saddle

For corrugated and smooth pipes

DN 250 .. 1000 mm

Elbow 15°, 30°, 45°, 90° (PP)

For smooth-wall pipes

DN/OD 110 .. 400 mm

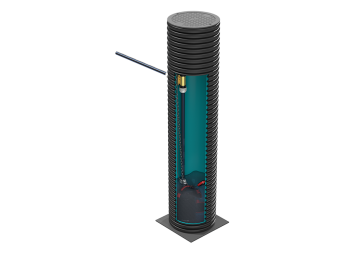

ID 400 chamber with pump

Drainage chamber with pump for private houses

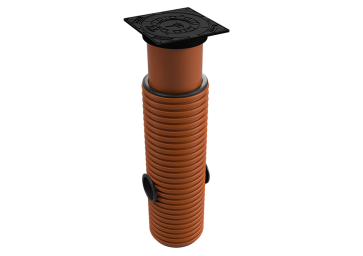

Gullies CRS 400.315

With telescopic pipe and round or square grate D400

Connections DN/OD 110, 160, 200, 250, 315 mm

CID 400

Drainage inspection chamber with sediment trap

Connections 110, 160, 200, 250 mm
