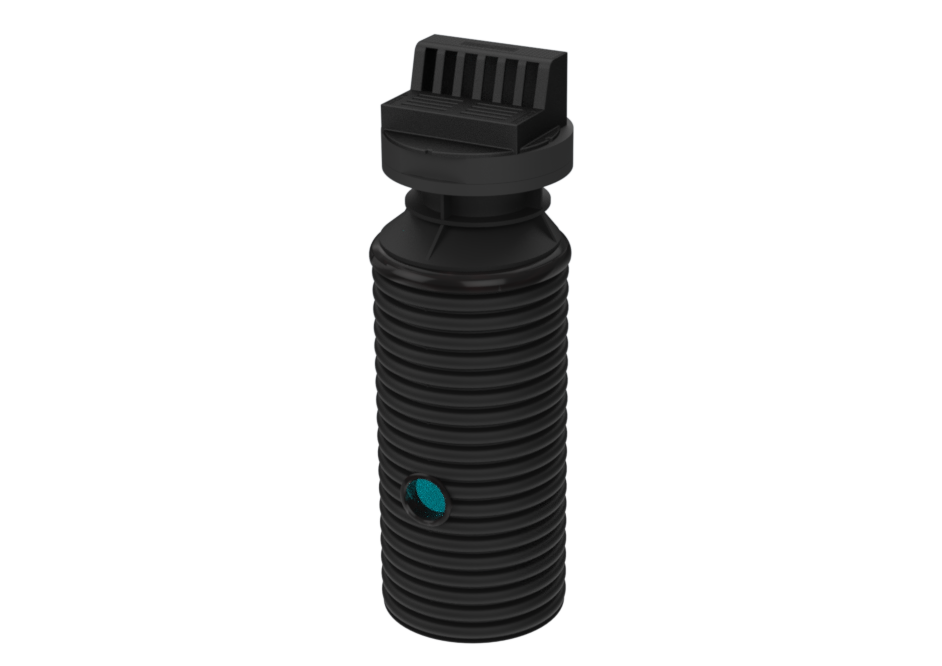

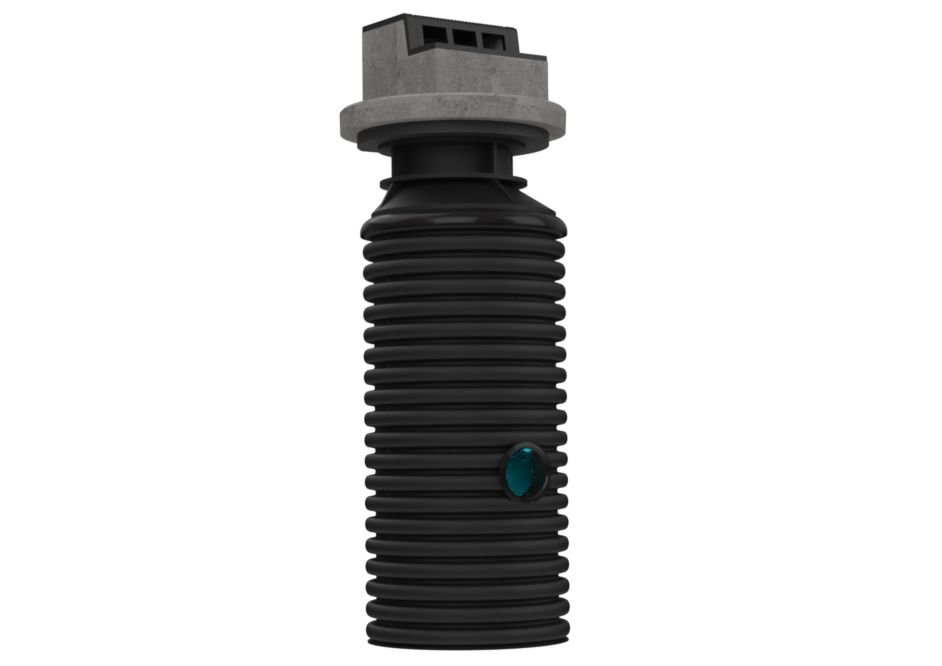

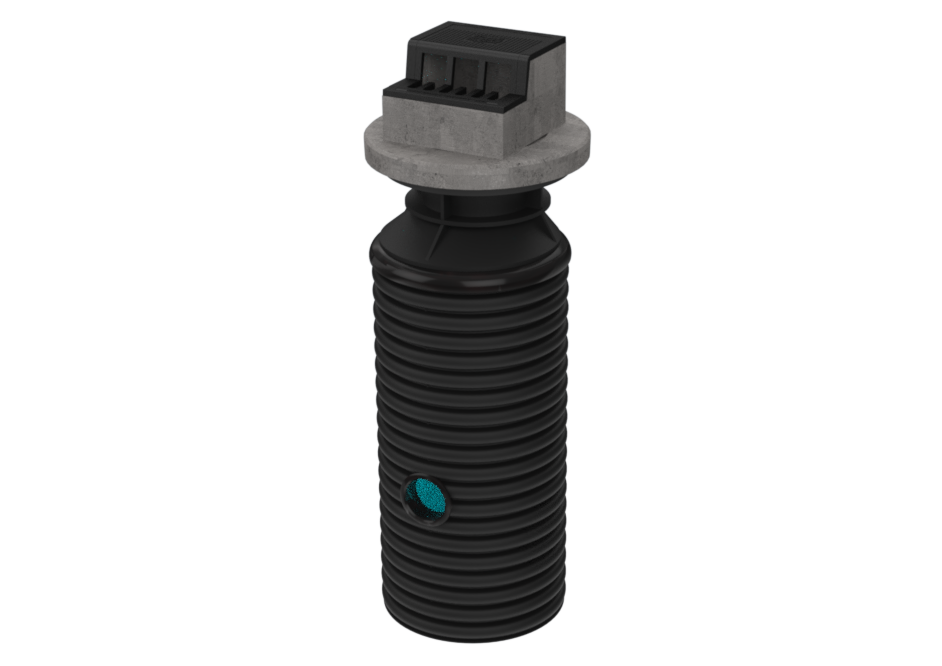

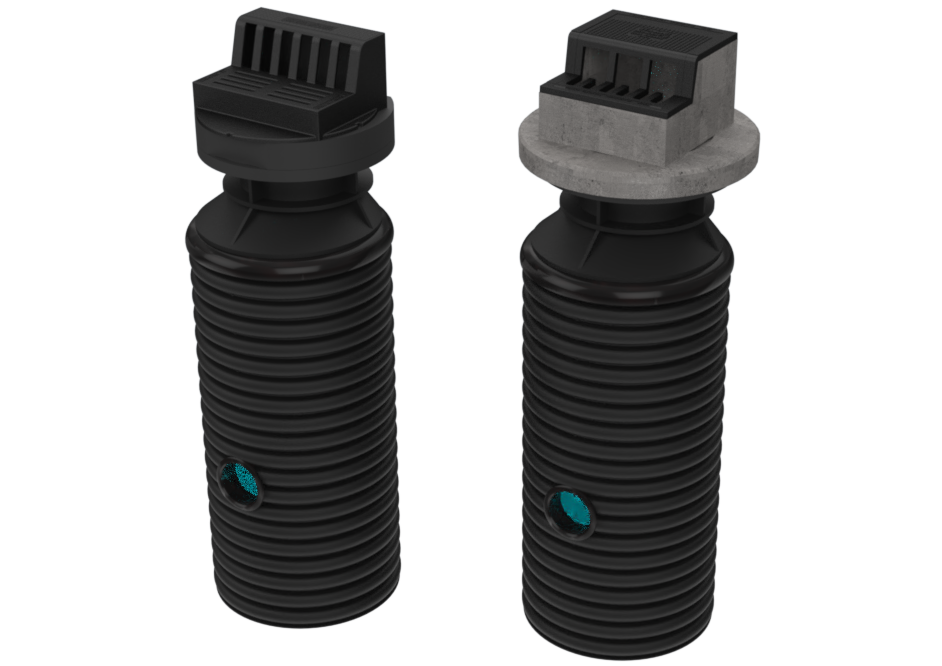

Road gullies CRS 600 with board grate
For construction within road curb
Connections DN/OD 110, 160, 200, 250, 315 mm
Gullies DN/ID 600 [mm] with or without sediment trap and board grate for construction with road curb.
- Connection DN/OD 110, 160, 200, 250, 315 [mm]
- Installation class - C250 or D400
- Sediment trap volume*: 166 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
-
Advantages
Long service life (>50 years)
Water-tightness > 0.5 bar, watertight materials
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
Road construction (with and without transport load)
-

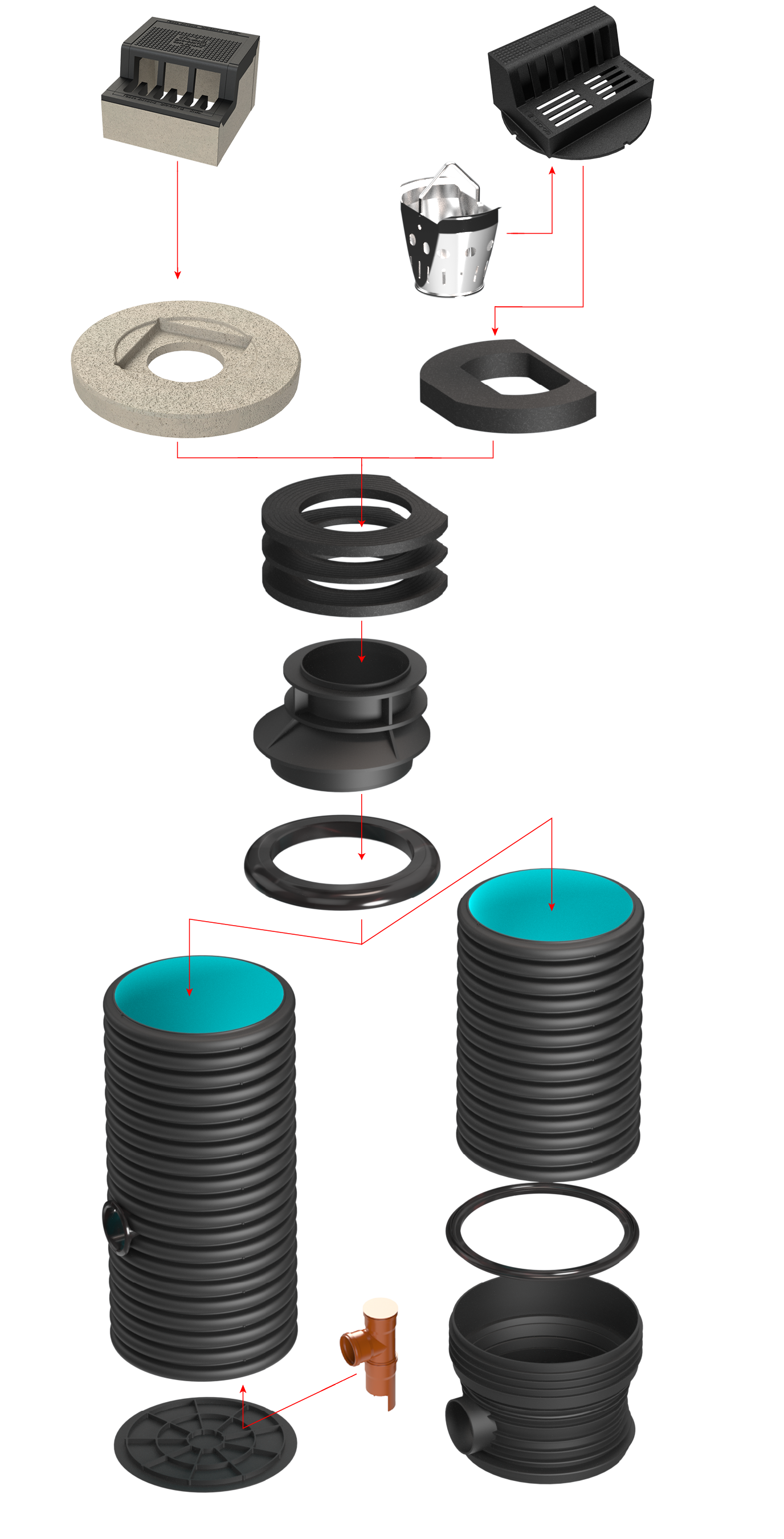

Chamber components
Type With sediment trap Without sediment trap Connections OUT 0° OUT 0° DN/OD [mm] 110 / 160 / 200 / 250 / 315* 160 / 200 / 250 / 315* *connections to gullies from DN/OD 110 to 200 [mm] are formed by use of coupling seal
-
Technical information
Installation depth:
- Minimum instalation depth: 1.0 m
- Maximum installation depth is up to 6.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 5.0 m, according to the requirements of EN 13598-2 standard
Chamber cover:
- Stationary type cast iron board grate, DN 592 mm, h=150/250 mm, installation class D400 (40t) corresponds to the requirements of EN 124-2 standard
- Stationary type cast iron board grate, 450x450 mm, h=125/300 mm, installation class C250 (25t) corresponds to the requirements of EN 124-2 standard
- Steel debris bucket, h=325 mm, type DIN 4052 - D1
- Eccentric adapter, DN500/385/250 mm, type DIN 4052-10a
- Polymer support ring, DN 390/650 mm, conforms to DIN 4052-10a requirements
- Polymer support ring, DN 650/395 mm, conforms to DIN 4052-10b requirements
- Rubber cuff, DN 600/500 mm, conforms to LVS EN 681-1 requirements
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/ID 600 mm correspond to the requirements of EN 13476-3 and EN 14802 standards
- Sealing ring DN 600 mm correspond to the requirements of EN 681-1/A3 and EN 1277 standards
- Base of chamber CSL DN 600 mm PP correspond to the requirements of EN 13598-2 and EN 476
- Polypropylene (PP) base of chamber, type CR-CT, DN 600 mm correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
-

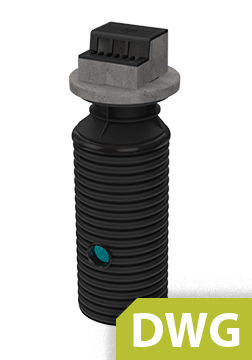

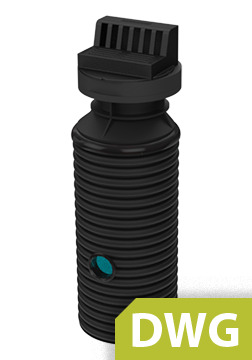

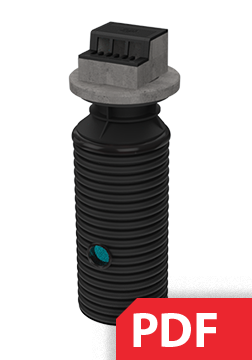

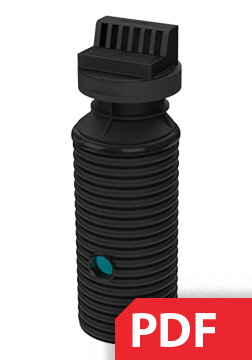

Drawings
