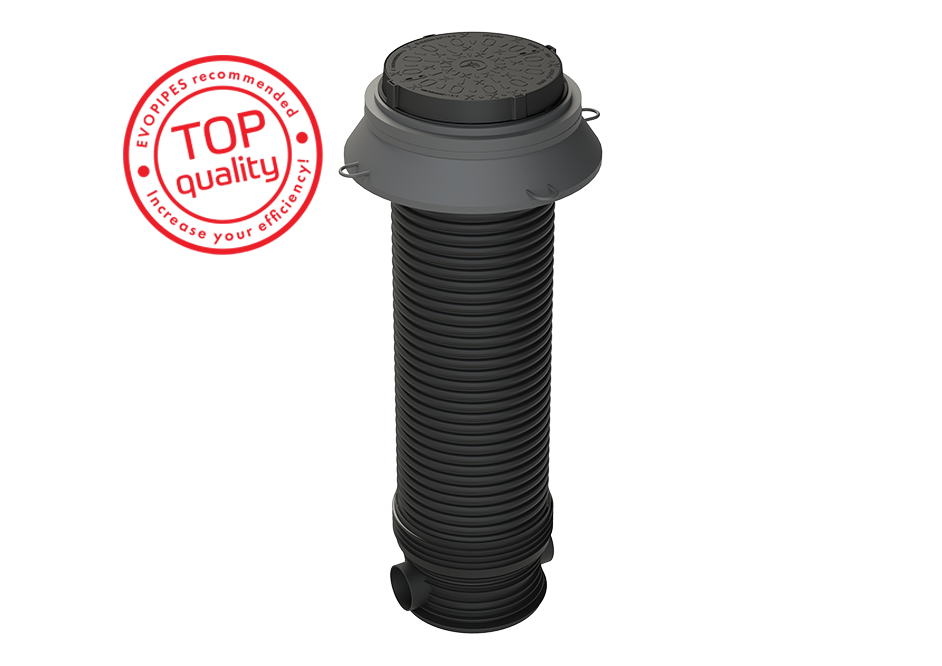

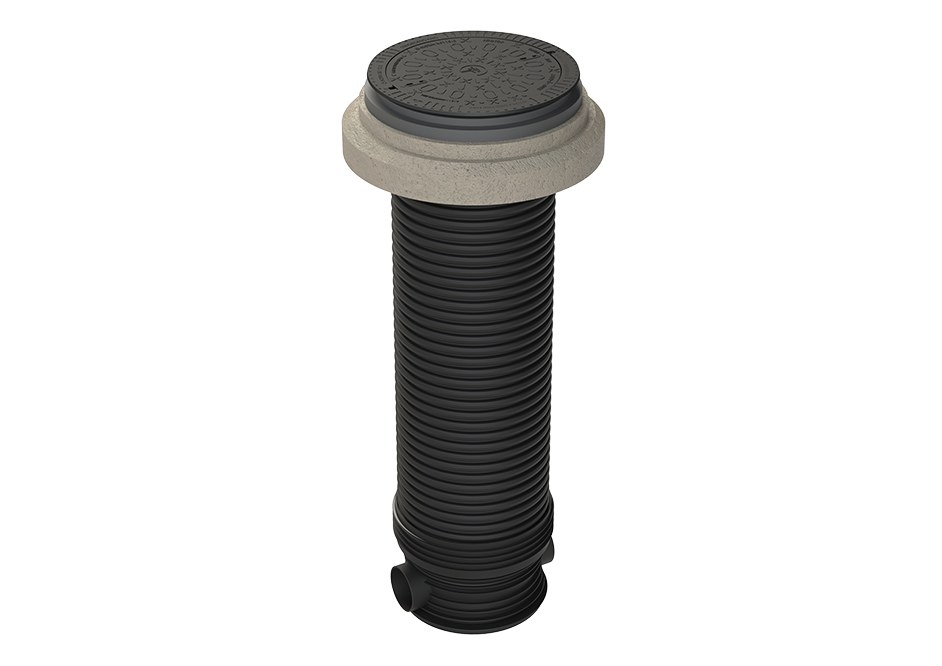

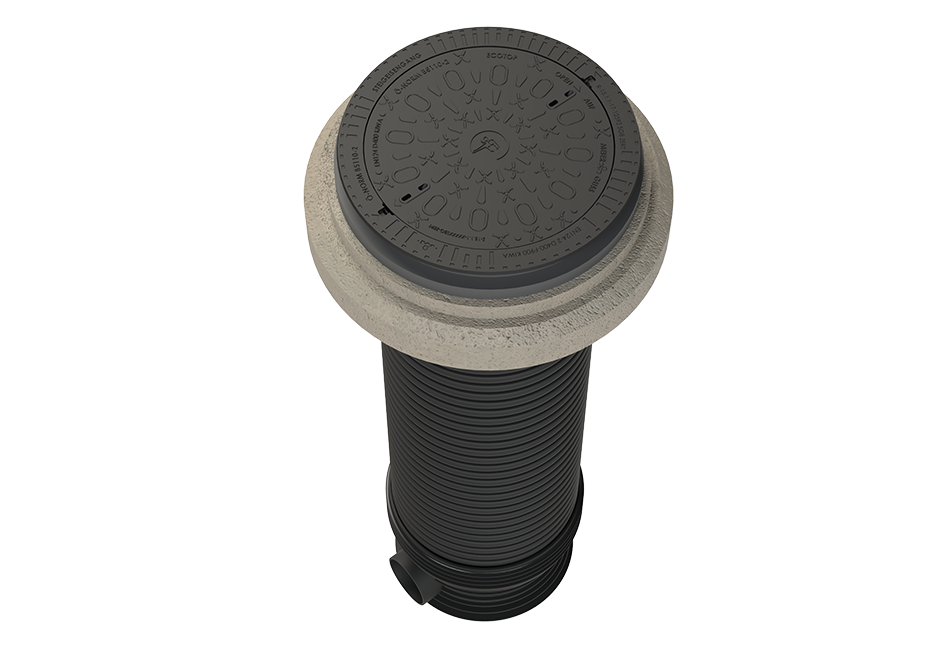

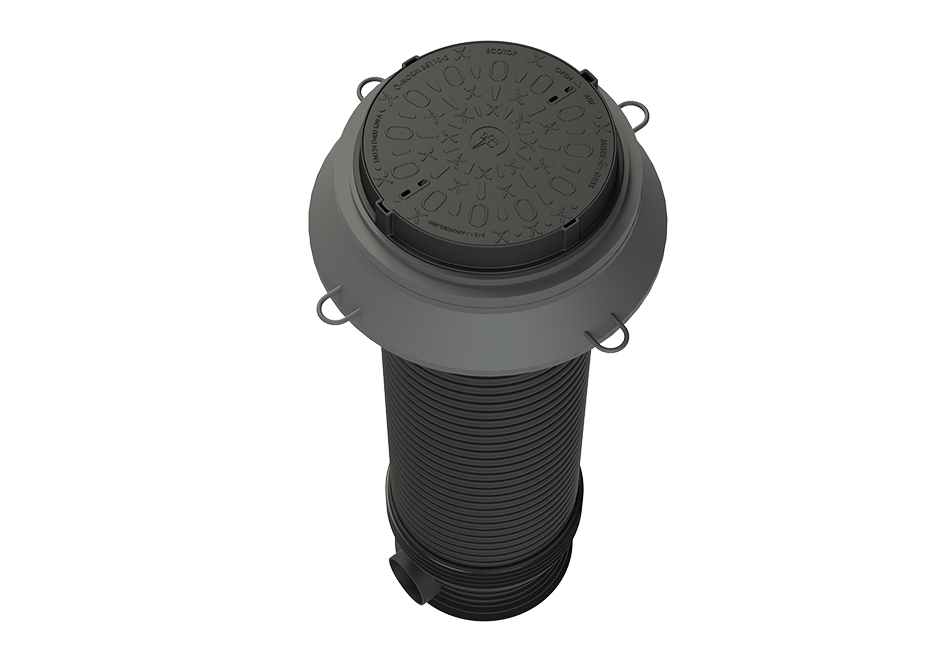

Inspection chamber CSL 600
With corrugated pipe shaft
Connections DN/OD 160, 200, 250, 315 mm
Inspection chamber DN/ID 600 [mm] with stationary or self leveling type D400 class cast iron cover.
- Base connections at 90° .. 270°
- Connection DN/OD 110 .. 315 [mm]
- Cover: D400 class, RAL GZ-692
-
Advantages
Long service life (>50 years)
Flexibile for movements in soil (no cracking of the manhole)
Water-tightness > 0.5 bar, watertight materials
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
Road construction (with and without transport load)
-

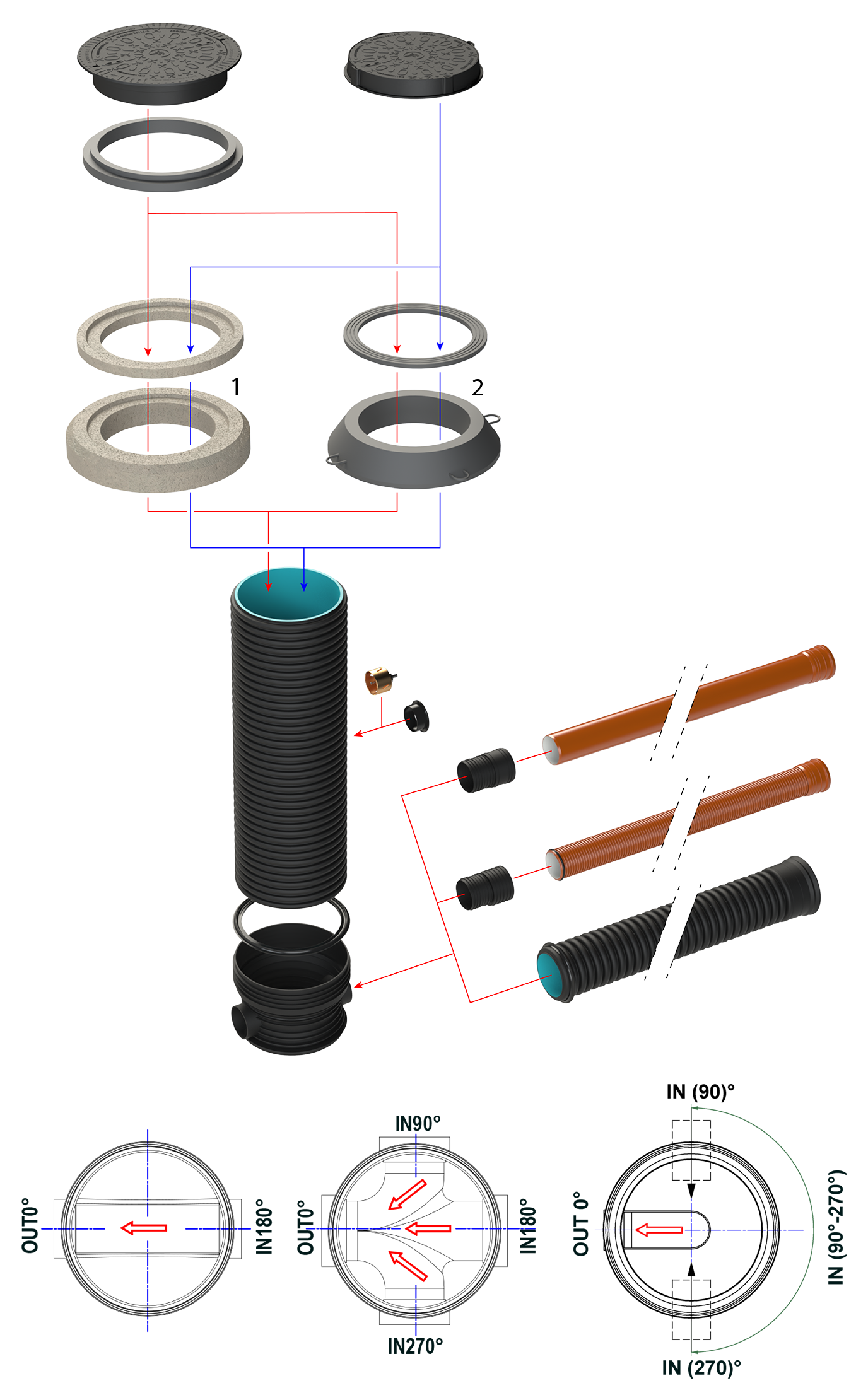

Chamber components
Type 1B 3BL 1C Connections OUT 0° / IN 180° OUT 0°
IN 135° / 180° / 225°OUT 0° DN/OD [mm] 160 / 200 / 315 160 / 200 / 250 160 / 200 / 250 / 315 By using 3BL type base and end cap(s) it is possible to make 1BB, 2BL, 2BT type base configuration
1 to be used in cases of paving stone, gravel or green space.
2 to be used in asphalt concrete pavement.
-
Technical information
Installation depth
Minimum instalation depth: 1.25 m
Maximum installation depth is up to 6.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 5.0 m, according to the requirements of EN 13598-2 standard
Chamber base
Polypropylene (PP) base of chamber DN 600 mm correspond to the requirements of EN 13598-1, EN 13598-2 and EN 476
Sealing ring
Sealing ring DN 600 mm correspond to the requirements of EN 681-1/A3 and EN 1277 standards
Chamber shaft
Height-adjustment corrugated PP double-wall shaft DN/ID 600 mm conform to the requirements of EN 13476-3 and EN 14802 standards

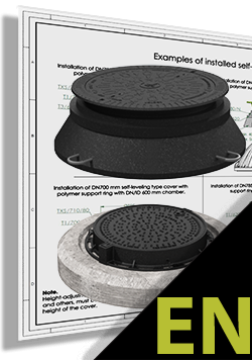

Chamber covers
Self-leveling type cast iron frame and cover, DN 700 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard.
Stationary type cast iron frame and cover, DN 600/746 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 and RAL GZ-692 standard.
Polymer ring adapter for self-leveling cover DN 710/870 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer height adjustment ring DN 700/875 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer support ring DN 680/1050 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Reinforced concrete height adjustmet ring, DN 665/1000 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard.
Reinforced concrete support ring, DN 665/1060 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard.
-

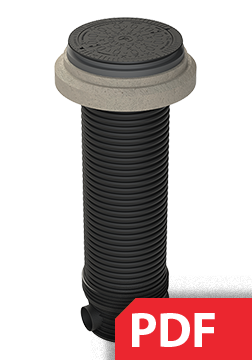

Drawings

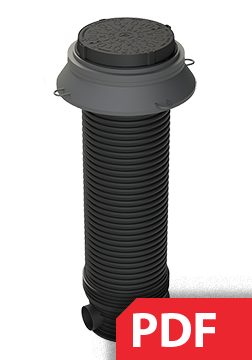

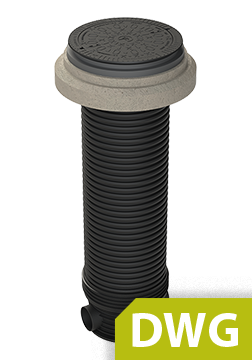

Standard Drawing DN/ID 600 mm with sediment trap PDF
Chamber with sediment trap for gravity type sewer DN/ID 600 mm
