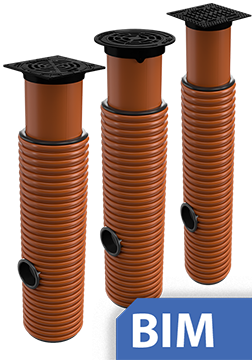

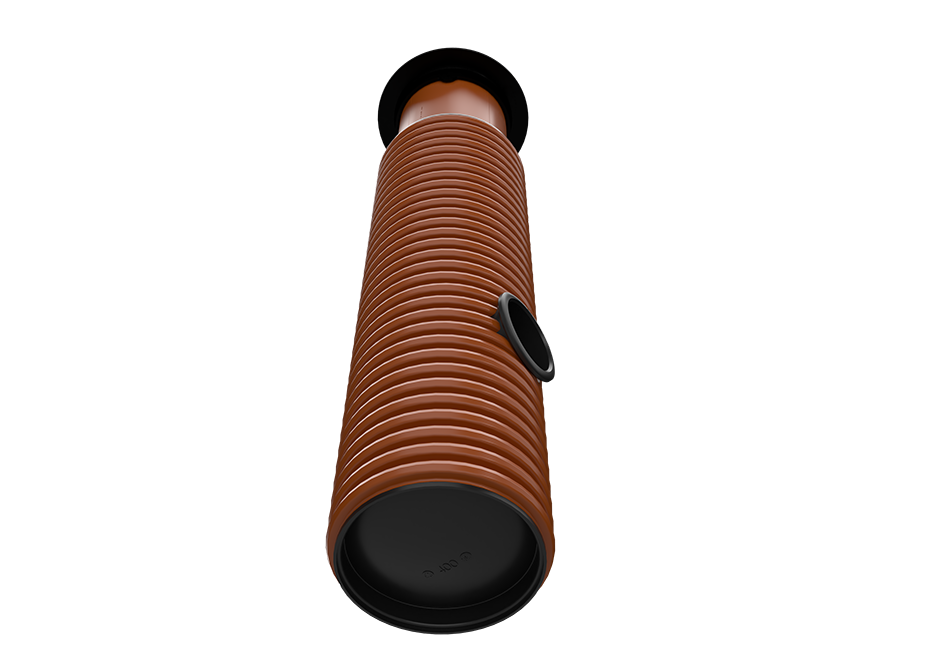

Gullies CRS 400.315
With telescopic pipe and round or square grate D400
Connections DN/OD 110, 160, 200, 250, 315 mm
Gullies DN 400 [mm] with sediment trap, telescopic pipe and D400 class cast iron cover.
- Connection DN/OD 110 .. 315 [mm]
- Telescopic pipe: DN 315 [mm]
- Cover: D400 class (40t)
- Sediment trap volume*: 67 [dm³]
*by default, on request it is possible order different sediment trap volumes (or without one at all)
-
Advantages
Long service life (>50 years)
Flexible for movements in soil (no cracking of the chamber)
Water-tightness > 0.5 bar, watertight materials
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
Road construction (with and without transport load)
-
Chamber components
Connections OUT 0° DN/OD [mm] 110 / 160 / 200 / 250 / 315* *connections in gullies from DN/OD 110 to 200 [mm] may be formed by use of coupling seal, but connections in gullies above DN/OD 200 [mm] should be formed by built-in connection cup -
Technical information
Installation depth:
- Minimum instalation depth: 1.0 [m]
- Maximum instalation depth: 5.0 [m]
Chamber cover:

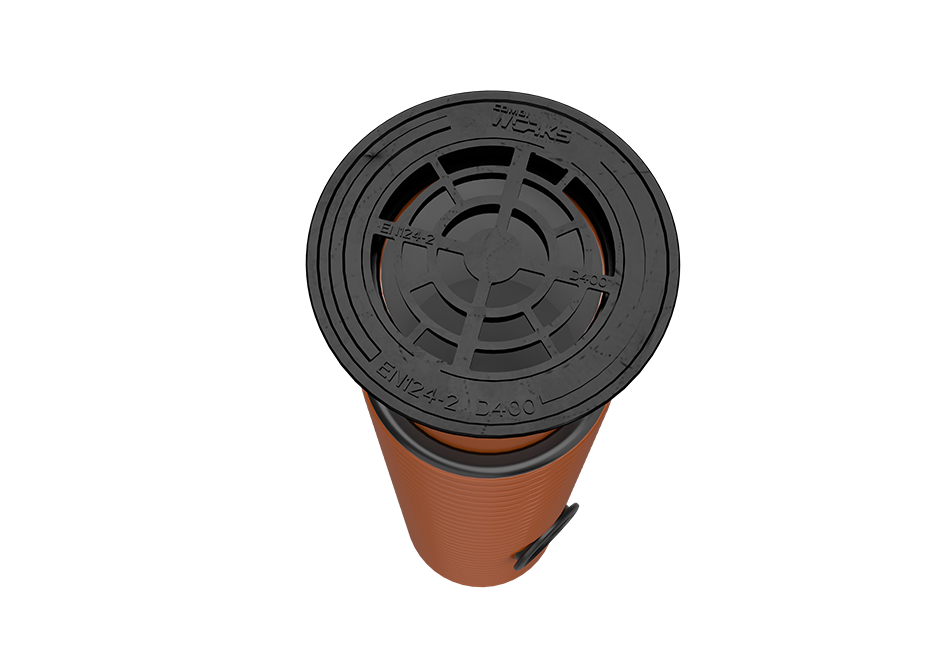

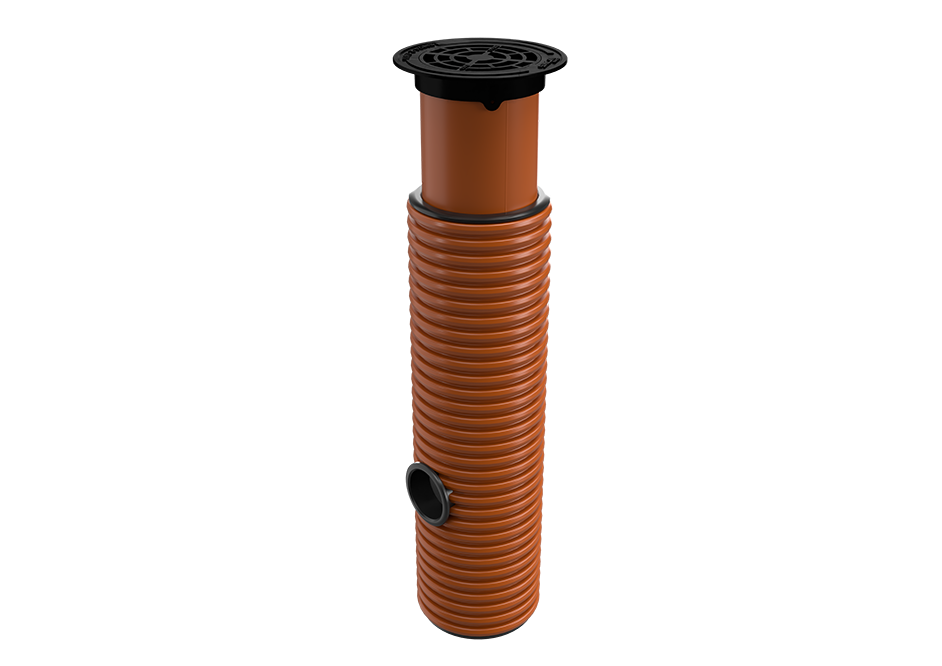

- Round cast iron frame and grate, DN 315 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 standard

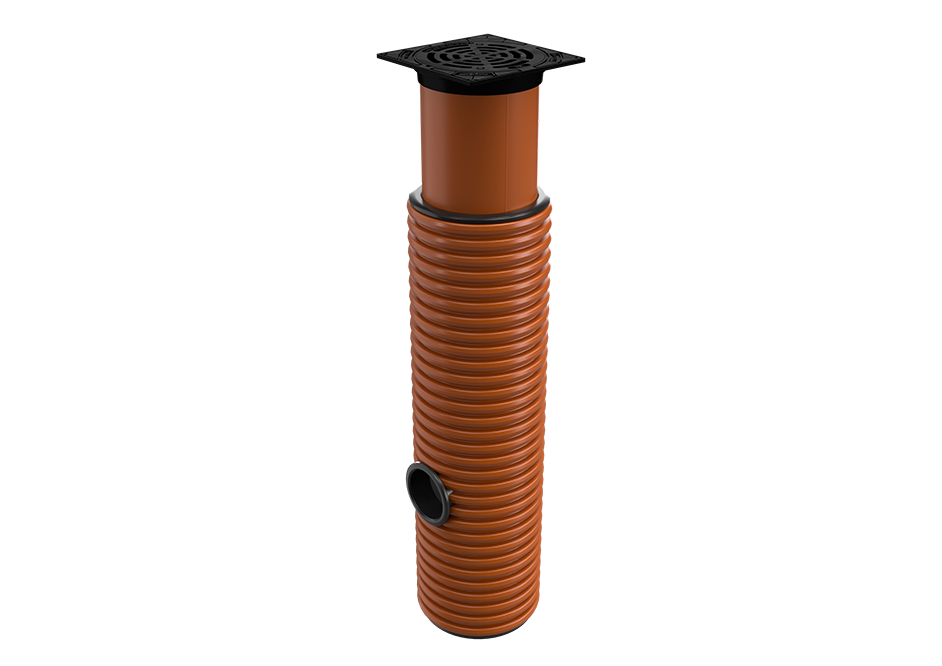

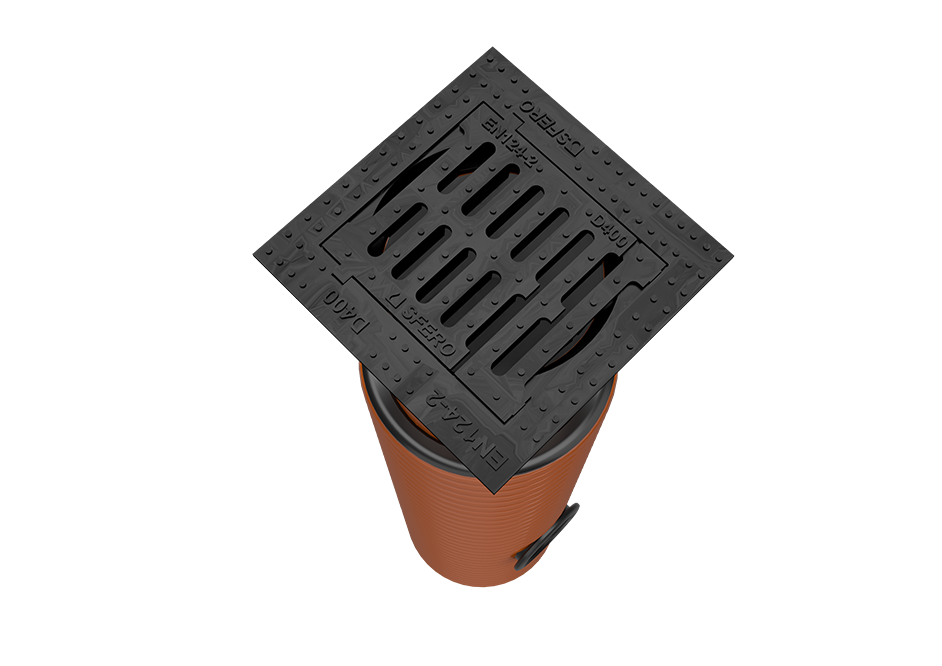

- Square cast iron frame and grate, 415x415 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 standard

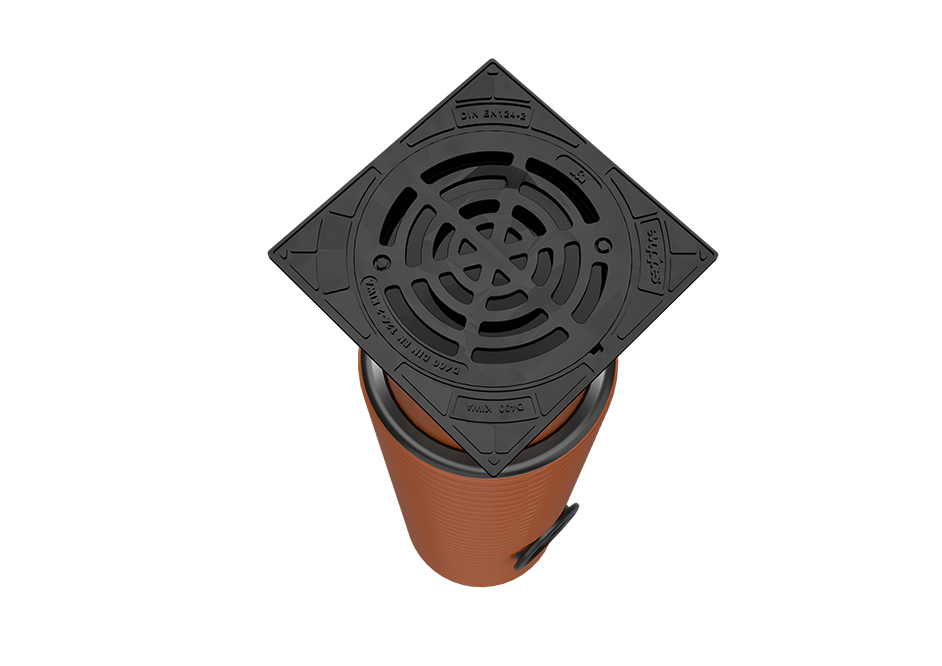

- Square cast iron frame and round grate, 385x385 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 standard
Telescopic section:
- Telescopic pipes:
- PE smooth-wall pipe DN/OD 315 [mm], height 0.6 [m], corresponds to the requirements of EN 12201-2 and EN 14802 standards
- PP smooth-wall pipe DN/OD 315 [mm], height 0.6 [m], corresponds to the requirements of EN 13476-2 standard
- Rubber cuff DN 400/315 and rubber sealing ring DN 400 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/OD 400 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
- Polypropylene (PP) base of gully, type CR-CT, DN 400 [mm] correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
-
Drawings

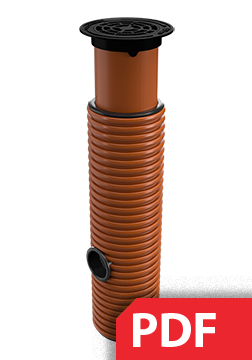

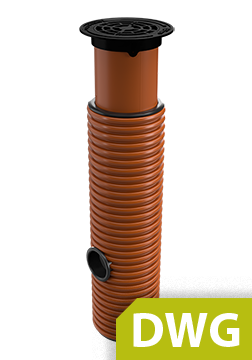

Standard drawing CRS 400.315.RR PDF
Gullies with round grate, class D400, and telescopic pipe.
Download

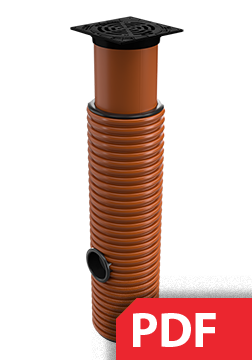

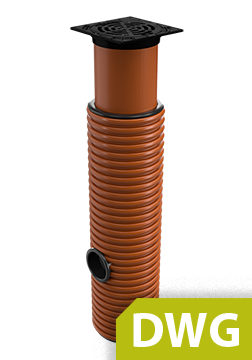

Standard drawing CRS 400.315.SR PDF
Gullies with square frame and round grate, class D400, and telescopic pipe.
Download
Standard drawing CRS 400.315.SS PDF
Gullies with square frame and grate, class D400, and telescopic pipe.
Download
