EVOTOP (grate) 385x385, D400

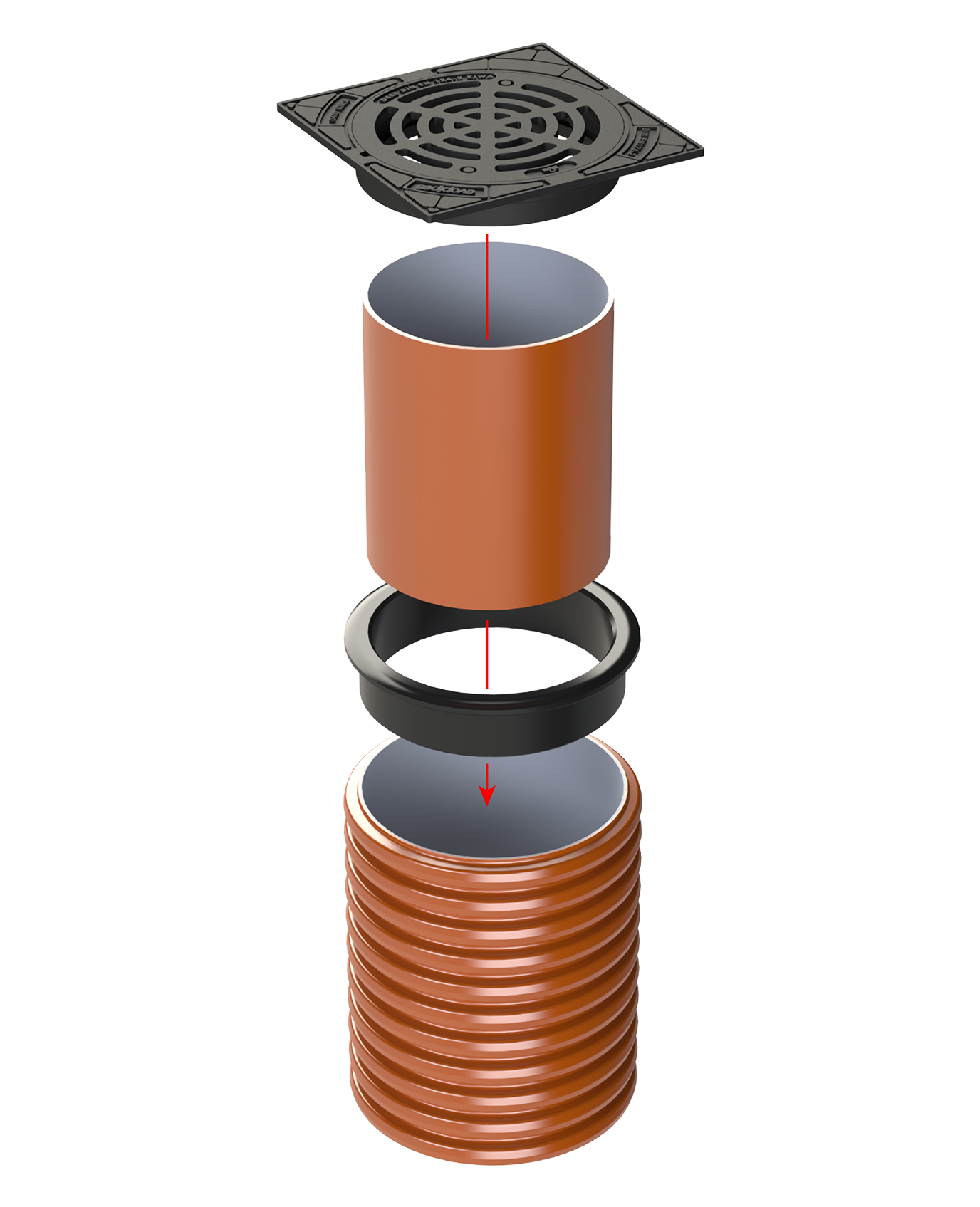

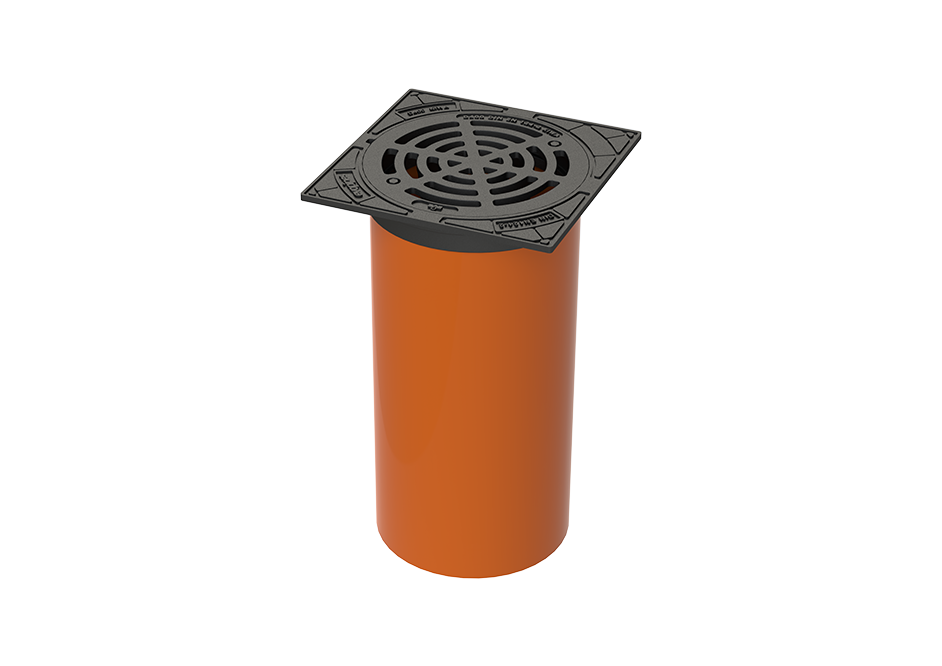

Square cast iron frame and round grate with telescopic pipe, 385x385 [mm], height 0.6 [m].

Components
Technical information
- Load class: D400
- Certification: KIWA
- Waterway area: 247 cm²
- Weight: 19 kg
Drawings

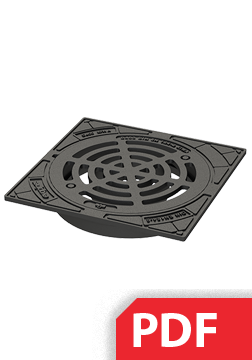

Standard Drawing EVOTOP (grate) 385x385, D400 PDF

Grate 385x385, D400
Download

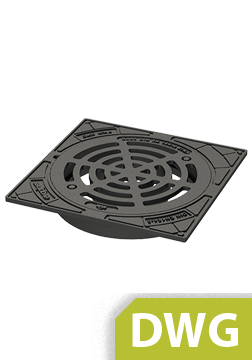

Standard Drawing EVOTOP (grate) 385x385, D400 DWG

DWG file format
Download
Certificates

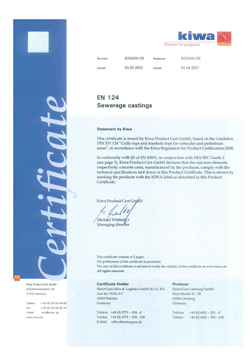

Certificate EN124 KIWA

Certificate of conformity of KIWA
Download

Certificate of conformity of KIWA

Download

Grate 385x385, D400

Download

DWG file format

Download

	Product	Code
	Grate

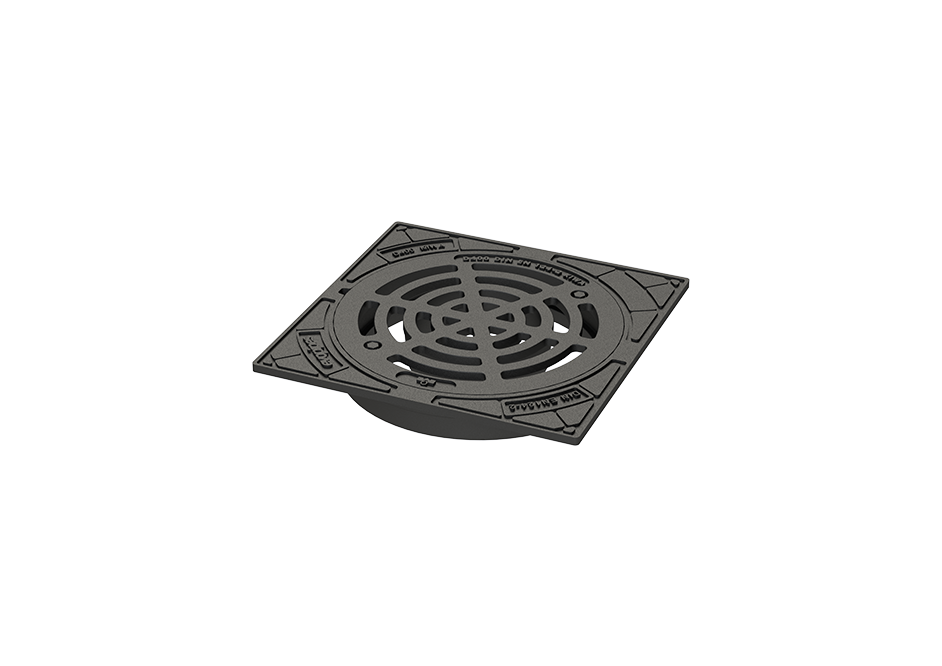

	Square cast iron chamber cover (frame with round grate), 385x385 [mm], D400.	820213315SL730001A
	Telescope set
	Square cast iron frame and round grate with telescopic pipe, 385x385 [mm], height 0.6 [m], D400.	82706431542730001A

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
