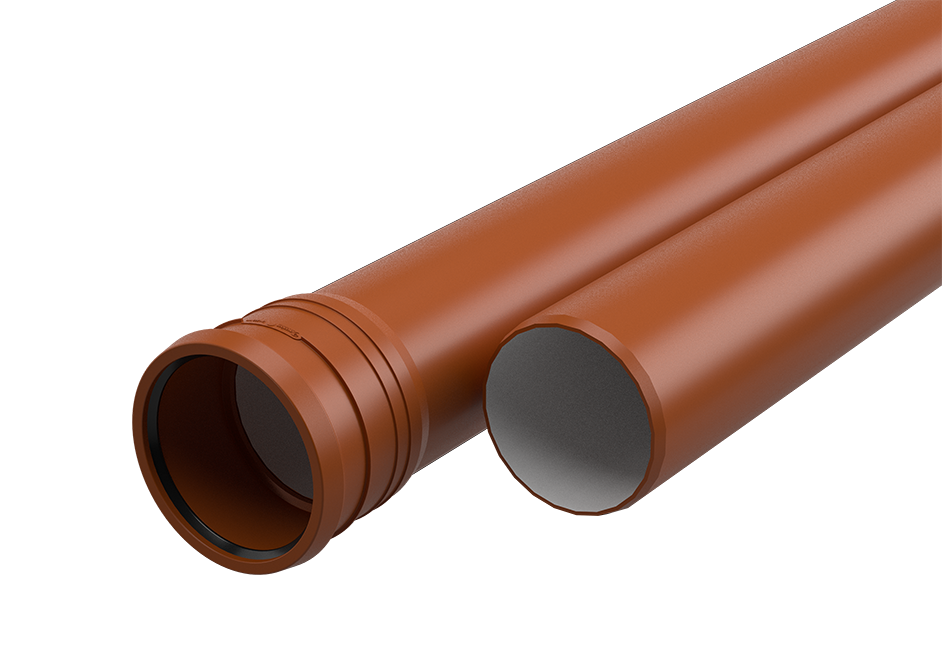

RIGID MULTI PP
Smooth 3-layer sewage pipes, EN 13476-2 type A
SN8 [kN/m²], DN/OD 110, 160, 200, 250, 315, 400 mm
RIGID MULTI PP smooth-wall pipes for gravity sewer network systems with friction welded socket and locking sealing ring.
These pipes are produced using three-layer technology, where the external and internal layer is made of high flexural modulus polypropylene (PP) material but the intermediate layer consists of structured polypropylene (PP) material.
Modern choice for professionals!
- Ring stiffness class SN8 [kN/m²]
- DN/OD 110, 160, 200, 250, 315, 400 [mm]
- Produced according to EN 13476-2
- Standard pipe length¹: 6 [m]
¹ Other lengths are available on request
EVOPIPES has developed a high-quality, safe, and efficient RIGID MULTI PP, RIGID MONO PP, and RIGID MONO PP-MD gravity sewer infrastructure system. This system includes SN8 smooth-wall pipes, chambers, gullies, and different types of fittings that are necessary for effective system construction.
-
Advantages
Good balance between product ring stiffness, ring flexibility and impact resistance
The products can be installed in low temperatures until -10 °C
Products are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The products are environment-friendly and recyclable after several decades in operation
Long operational life - overs 100 years
-
Recommended application
Rain and domestic sewerage network connections of private houses
Rainwater collection in the tank for domestic use of water
Rainwater collection system for transfer to the common network
Separate rain and foundation drainage system for a private house
Utility sewerage systems at building construction areas
Street construction - with and without traffic load
Extension of existing sewerage system networks
Industrial territory utility sewerage systems
Storm water systems for stadiums and sport complexes
Storm water lines for pavements, pedestrian and bicycle paths
In parks, squares and recreational areas
-
Technical information
Pipes are produced using three-layer technology, where external and internal layer is made of high flexural modulus polypropylene (PP) material but the intermediate layer consists of structured polypropylene (PP) material. Standard colour of the outer side of RIGID MULTI PP pipe is reddish brown but inside is white for better visibility during CCTV control thereby facilitating determination of defects within sewerage networks.
- Material: polypropylene (PP-B)
- Produced according to EN 13476-2
- Ring stiffness SN8 [kN/m²]
- Ring flexibility RF30
- Impact resistance determined at -10°C (ice crystal)
- Available sizes: DN/OD 110, 160, 200, 250, 315, 400 [mm]

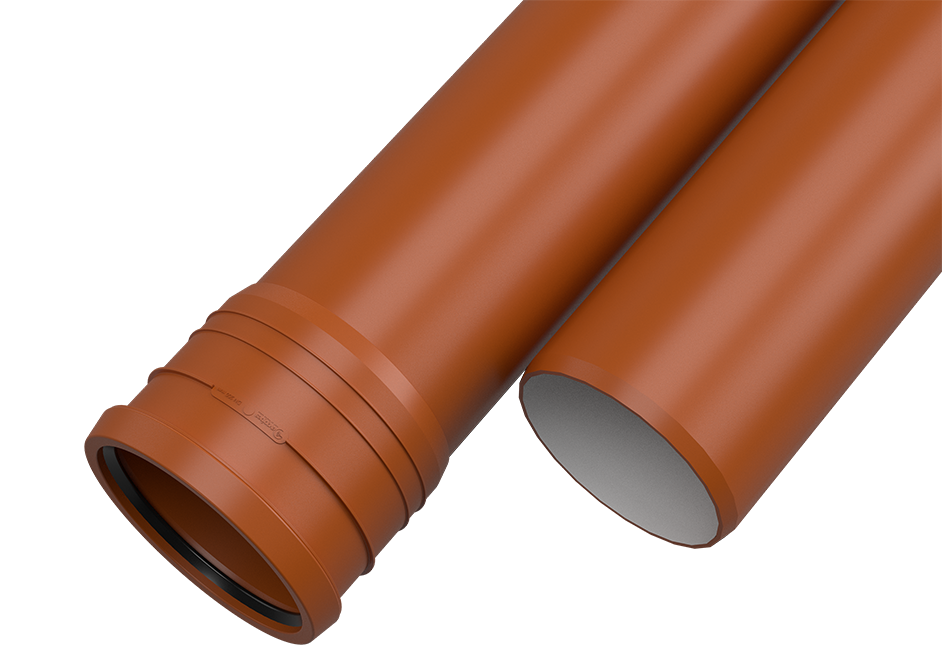

RIGID MULTI pipe is equipped with SEAL LOCK socket and integrated sealing ring¹. The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 [bar] (for the coupling area).
¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
-
Certificates
Pipe conformity:
RIGID MULTI PP SN8 pipes conform to EN 13476-2 requirements and are Nordic Poly Mark certified- bearing the conformity mark.
