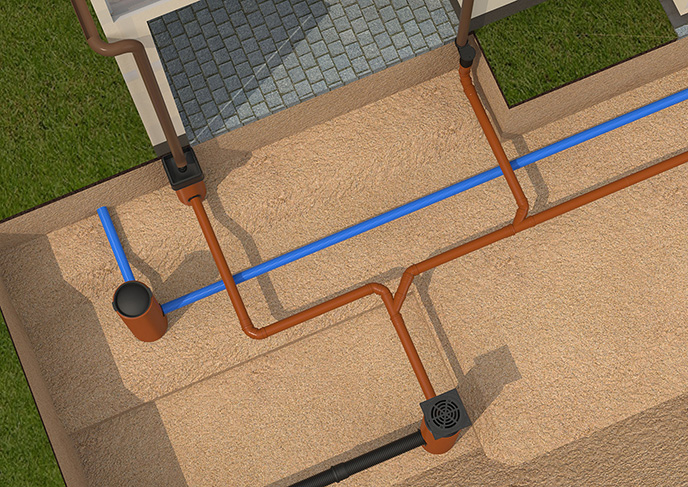

Separate rain and foundation drainage system for a private house

EVODRAIN FLEX without filter

360° Totally perforated (TP), HDPE, DIN 4262-1

SN4 or SN8 [kN/m²], DN/OD 63, 75, 90, 110, 125, 160 [mm]

EVORAIN

Storm water pipe, EN 13476-3 type B

SN8 [kN/m²], DN/OD 160, 200, 250, 315, 400 mm

CID 400

Drainage inspection chamber with sediment trap

Connections 110, 160, 200, 250 mm

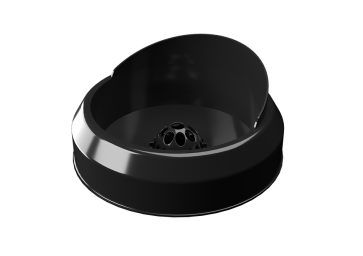

Round rainwater drain DN315/110

Stormwater drainage systems for buildings

DN/OD 110/315 mm

Square rainwater drain 315/110

Stormwater drainage systems for buildings

DN/OD 110/315 mm

RIGID MULTI PP

Smooth 3-layer sewage pipes, EN 13476-2 type A

SN8 [kN/m²], DN/OD 110, 160, 200, 250, 315, 400 mm

CID 400/315D

Drainage inspection chamber with sediment trap and telescopic pipe

Connections 110, 160, 200, 250 mm

DN 100 rainwater collector

Rainwater collector for private houses

Elbow 15°, 30°, 45°, 90° (PP)

For smooth-wall pipes

DN/OD 110 .. 400 mm

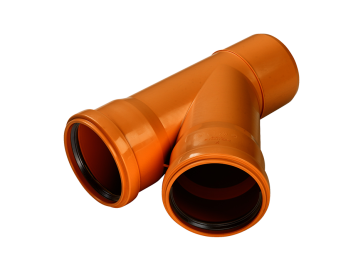

T-piece 45° (PP)

For smooth-wall pipes

DN/OD 110 .. 400 mm
