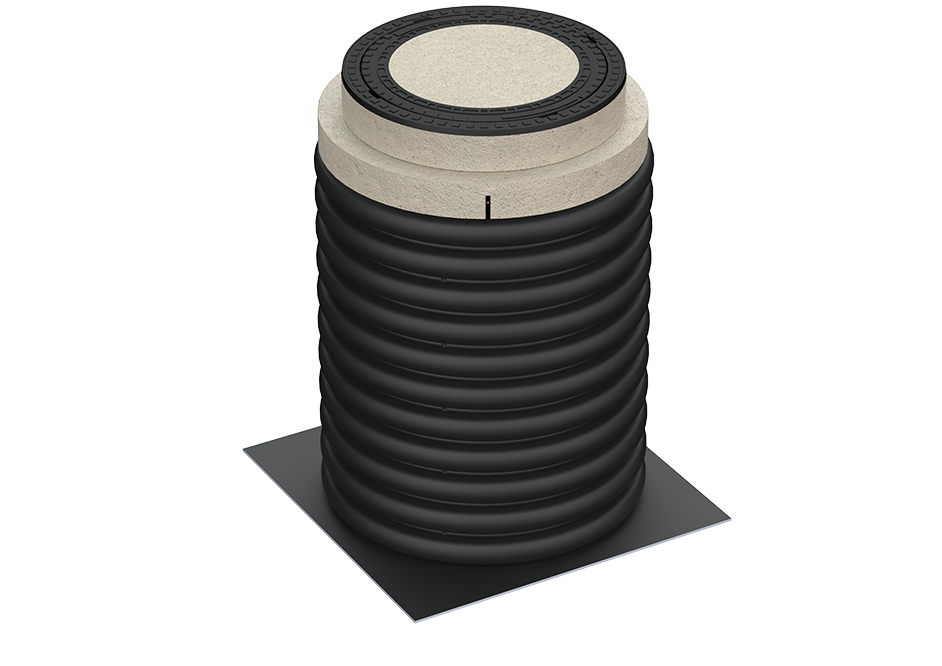

TC 906.800.650
Cable connection chamber
Cable connection chamber TC 906.800.650 is made of polypropylene (PP).
The welded on square base (1000 × 1000 mm) secures the chamber in soil.
-
Advantages
- Large inside diameter (ID 800 mm) gives large workspace
- Easy transportation and handling — no need for crane on construction site
- Fast creation of connection holes from inside (crown-drilling)
- High resistance to corrosion and chemical substances
- Long service life (>50 years)
- Shaft ring stiffness SN4.
-
Chamber components
-
Recommended application
Protection of electrical systems near railway lines
- Telecommunication networks
- Optical cable lines
- Electro cable lines
- Railroad signalisation
- Street lighting
According to EN124, the chamber is meant for use with:
- B125 (125 kN = 12.5 t) cast iron manhole cover. Suitable for use in the following areas:
- sidewalks
- pedestrian zones and similar areas
- parking areas or parking area pavements.
The chamber cannot be used under streets/roads/carriageways.
-
Technical information
- Outer diameter — 906 [mm]
- Inner diameter — 800 [mm]
- Height — 650 [mm] (any height possible on demand)
- Welded square base (thickness: 8 mm) — 1000 × 1000 [mm]
-
Drawings
