EVOCAB FLEX
Corrugated double-wall pipes
Normal Impact resistance, Compression strength: 450, DN/OD 40 .. 160 mm

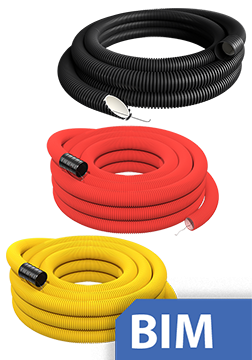

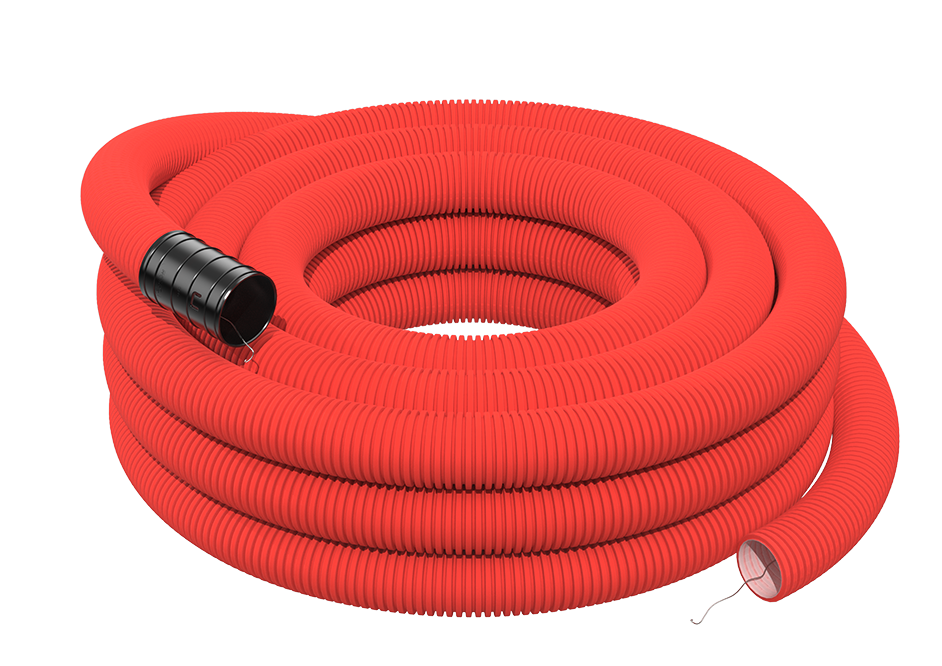

EVOCAB FLEX type halogen-free cable protection pipe is made of a PE composition and is available in rolls and by default, each roll is supplied with a coupler.

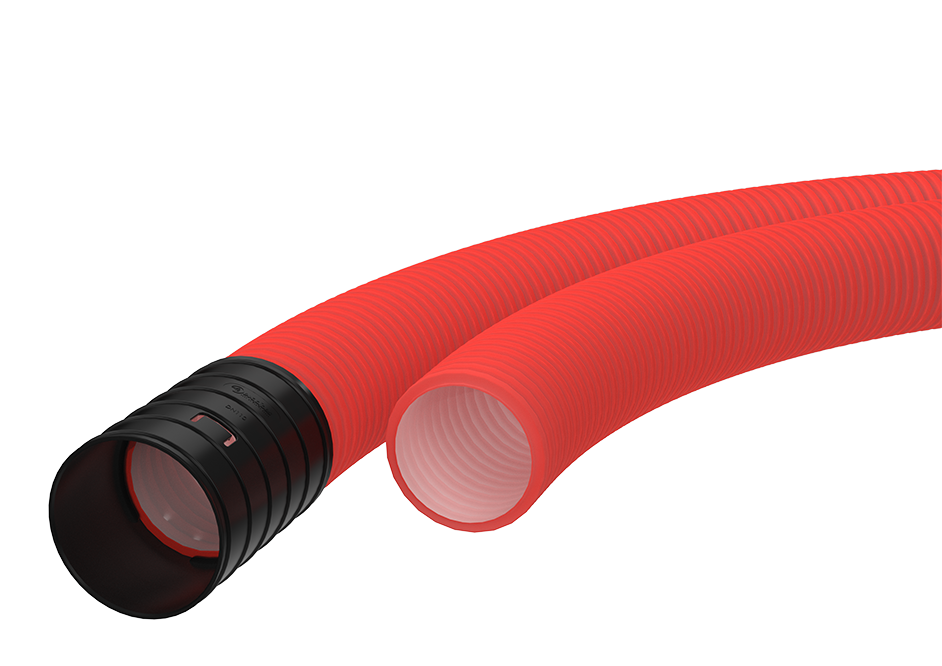

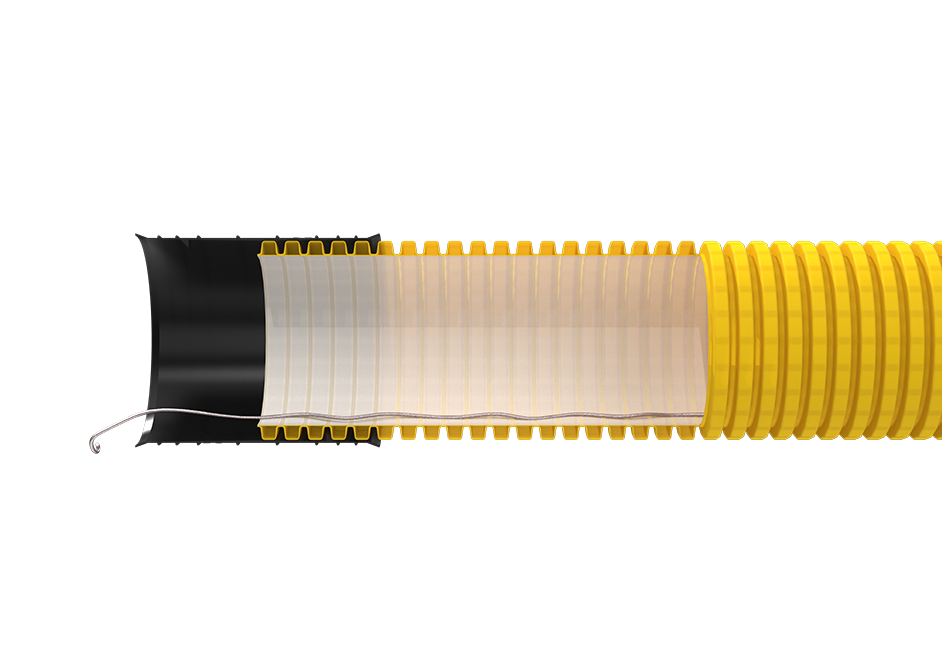

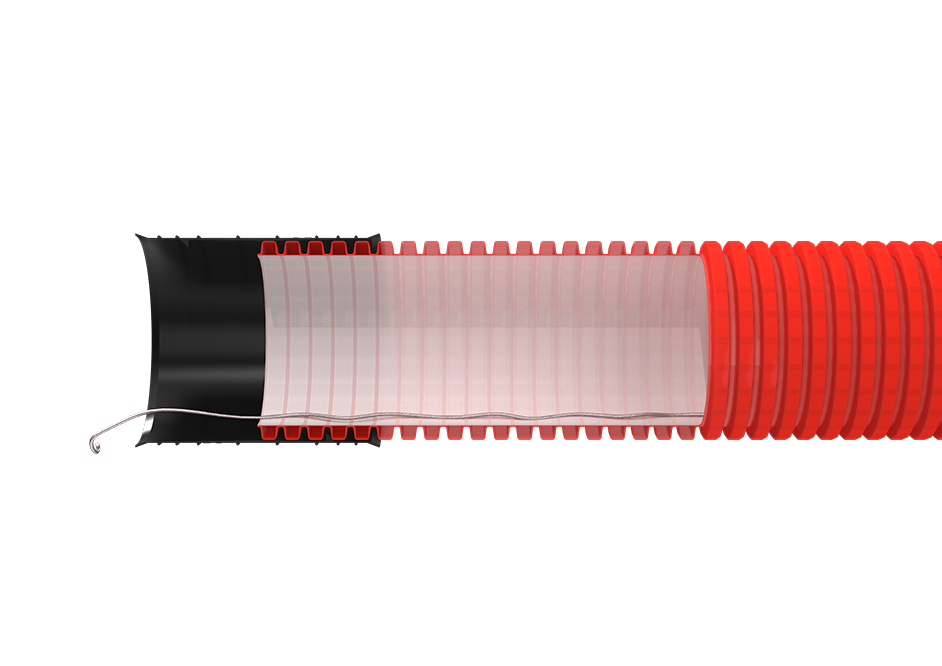

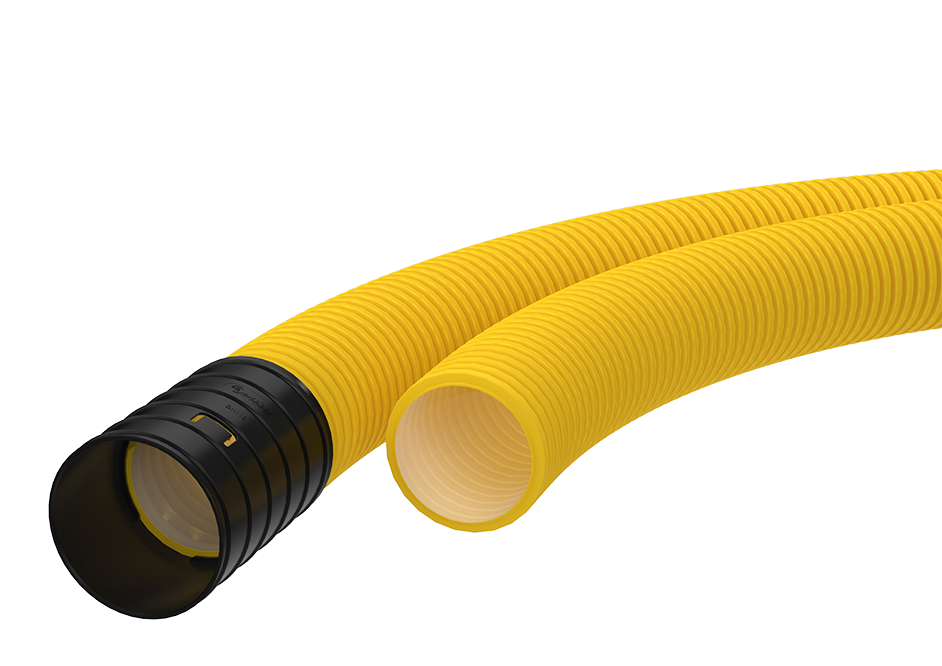

The pipe has a corrugated outer and a smooth inner surface. Due to this, it features high mechanical and impact strength properties.
The use of standard couplers allows a convenient rigid coupling.
- Available sizes: DN/OD 40 .. 160 [mm]
- Compression strength class: 450
-
Recommended application
Solar parks with centralized PV inverter
Low power charging stations for electric cars (>50kW)
Onshore wind parks
Building electrical system connection with entry in the basement
FLEX cable protection pipes can be used for underground protection and insulation of cables and are suitable for systems requiring medium compression strength.
-
Installation
-

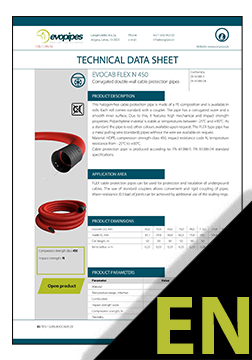

Technical information
Standard colours are red (RAL 3020), and yellow (RAL 1018). Other colours are available upon request.
- Material: Polyethylene (PE)
- Compression strength class: 450
- Impact resistance: N (normal)
- Temperature range -25ºC to +90ºC
- Pipe type: pliable pipe
- Using sealing rings¹, the water resistance (0.5 bar) of joints can be achieved
¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
R- Bend radius
D- Bend diameterOD [mm] ID [mm] Bend radius [mm] Length [m] 40 31.1 230 50 50 39.8 230 50 63 50.9 230 50 75 62.1 230 50 90 75.4 230 50 110 93.1 230 50 125 105.9 280 25 160 136.9 280 25
-
Revit BIM files
-

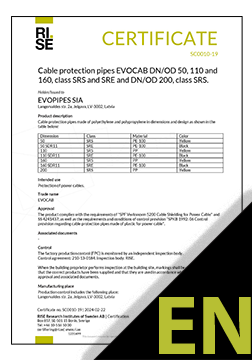

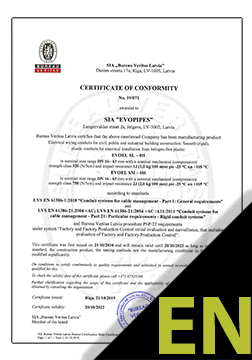

Certificates
The EVOCAB cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
