RIGID MULTI PP N 750
Smooth pipes with socket and sealing ring
Normal Impact resistance, Compression strength: 750, DN/OD 110, 160

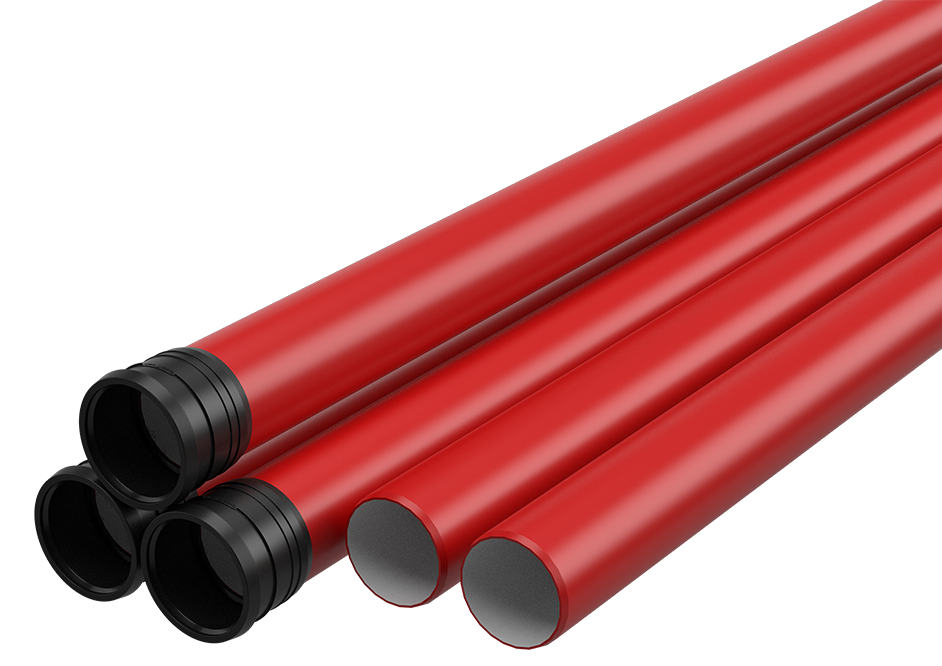

RIGID MULTI PP N 750 3-layer cable protection pipe is made of polypropylene with mechanical strength 750 [N/20cm] in compliance with EN 61386-24. Thanks to multilayer extrusion technology, it has excellent impact and load strength properties.

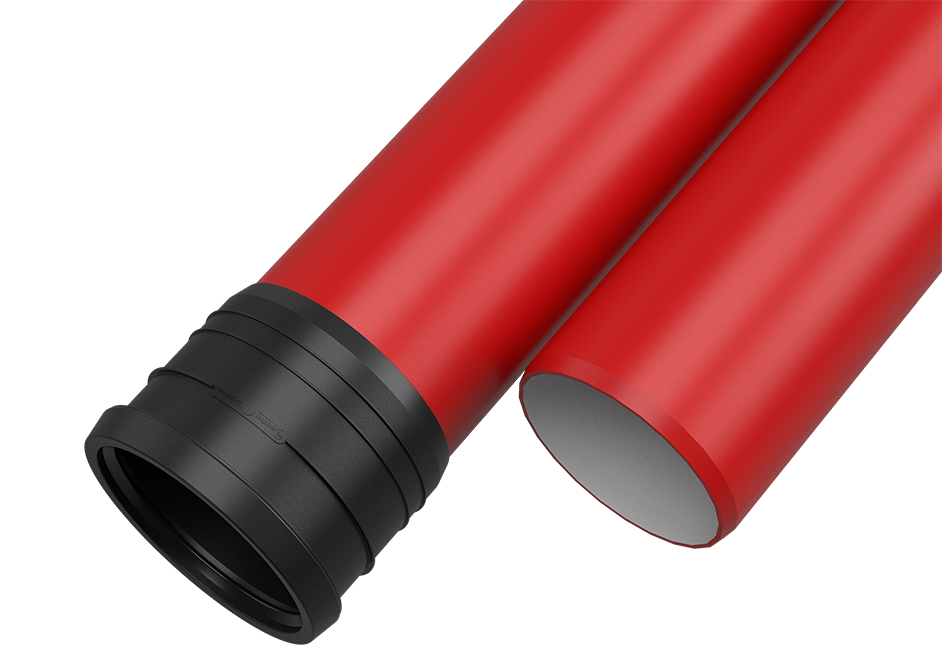

This cable protection pipe features a friction welded socket and locking sealing ring ensuring watertight connections (up to 0,5 bar).
- Available sizes: DN/OD 110 and 160 [mm]
- Compression strength class: 750
- Pipe length: 6 [m]
-
Advantages
- Easy and safe connection of the conduits;
- Watertight conduit system (up to 0,5 bar);
- Chemical inertness, high corrosion resistance;
- Service life > 50 years.
-
Recommended application
Protection of electrical systems near railway lines
High-power charging stations, including connection chamber, for electric cars (100kW<360kW)
RIGID MULTI PP N 750 is used for the protection and installation of telecommunications, medium voltage and high voltage cables.
Especially suited for sites with high traffic intensity.
-
Technical information

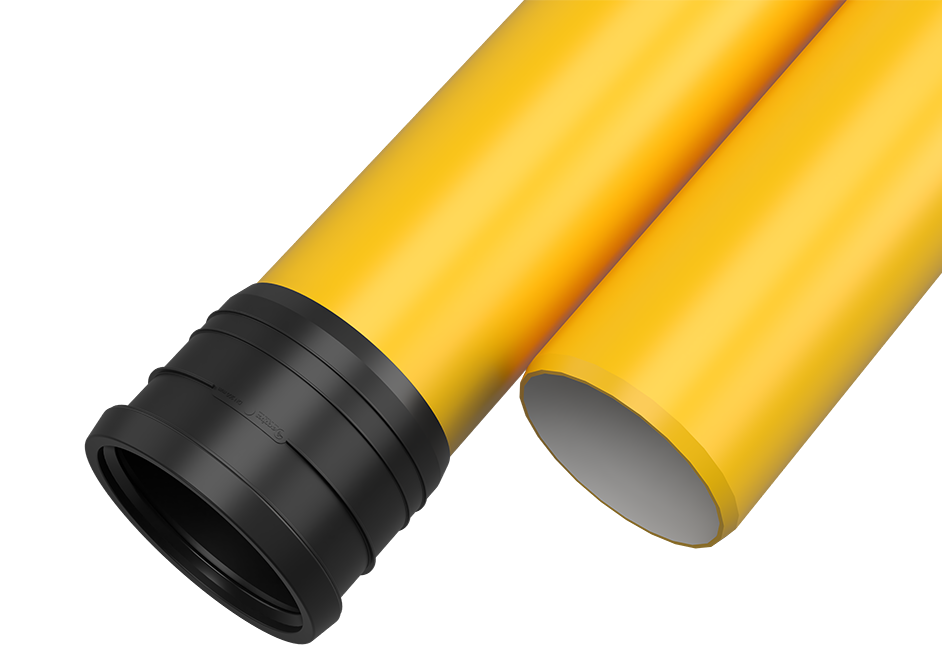

Standard colours are red (RAL 3020) and yellow (RAL 1018) with a white inner layer.
- Material: polypropylene (PP)
- Compression strength class: 750
- Impact resistance: N (normal)
- Temperature range from -25ºC to +90ºC
- Pipe type: rigid
- Integrated oil-resistant¹ sealing rings provide joint water tightness of 0.5 [bar]
¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe dimensions Dimensions 110 160 Outer Ø [mm] 110 160 Inner Ø [mm] 101,2 147.6 Length [m] 6 6 -

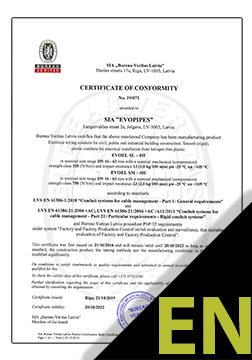

Certificates
The RIGID MULTI cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
