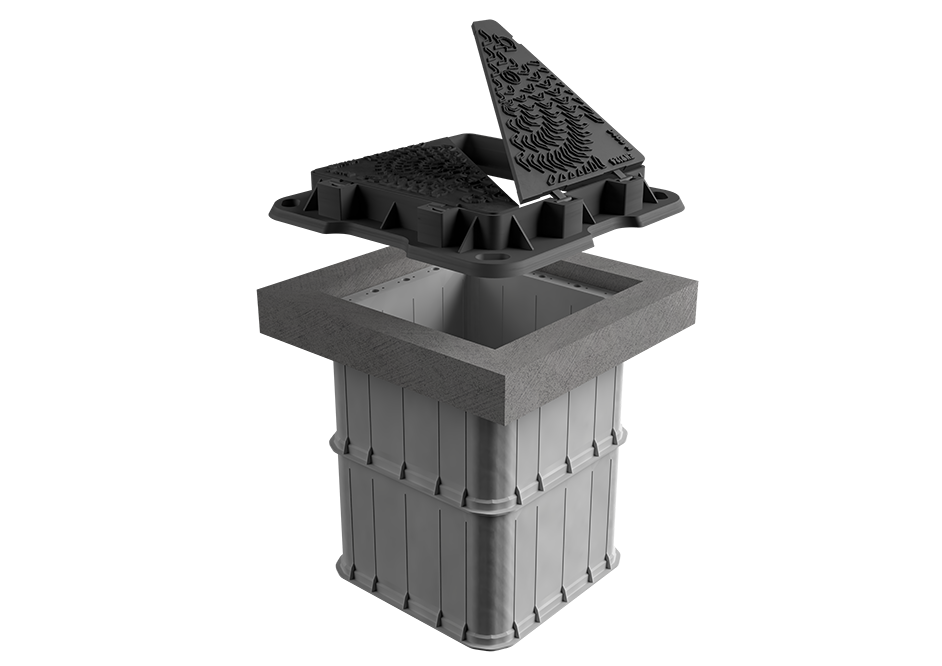

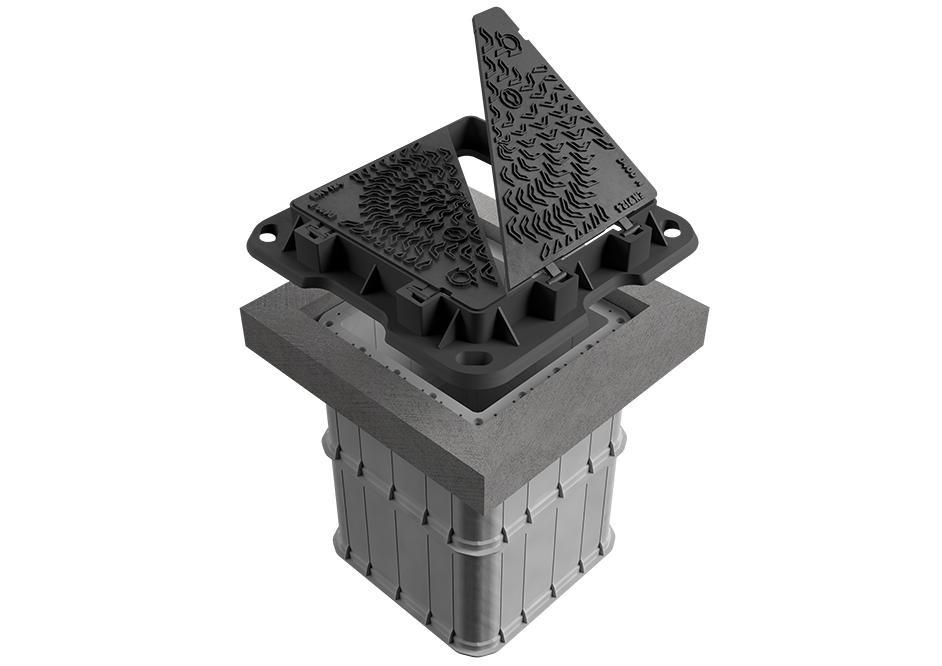

RADBOX 600/600
Modular cable connection chamber
RadBox 600/600 features a modular design — interconnectable panels.
The double wall structure ensures excellent mechanical protection and impact resistance.
- Inner dimensions: 600 x 600 [mm]
- Outer dimensions: 740 x 740 [mm]
- Cast iron material cover with B125 or D400 class
Any combination is possible of panels possible in dimensions up to 2 × 2 × 1.5 [m] (height). Panel height 500 or 150 [mm]. The height of interconnected panels is reduced by 30 [mm]. Larger sizes are available on demand.
-
Advantages
- Quick installation on site
- Interconnecting panels allow you to create the required chamber height quickly and easily on site
- Fast, simple and convenient construction process
- Simple design and no need for lifting machinery for construction
- RADBOX chambers provide easy access to empty perspective utility pipes, no need for excavation works in case of new consumption capacity.
- Easy installation and sealing of cable inlets
- Creation of duct entries is done on construction site by using a core drill
- Excellent chemical durability and resistance to environmental impact
- Quick installation on site
-
Recommended application
- Connection chambers for all types of direct buried networks and utilities
- Perfect for non-standard (unusually sized) chamber projects
An ideal solution for construction in pedestrian areas and green areas. Double wall of the chamber provides excellent durability parameters. The system is perfect for places with fast-growing infrastructure. Radbox cable chamber provide an option for easy and rapid increase in cable power by pulling additional cables into the existing pipes.
-

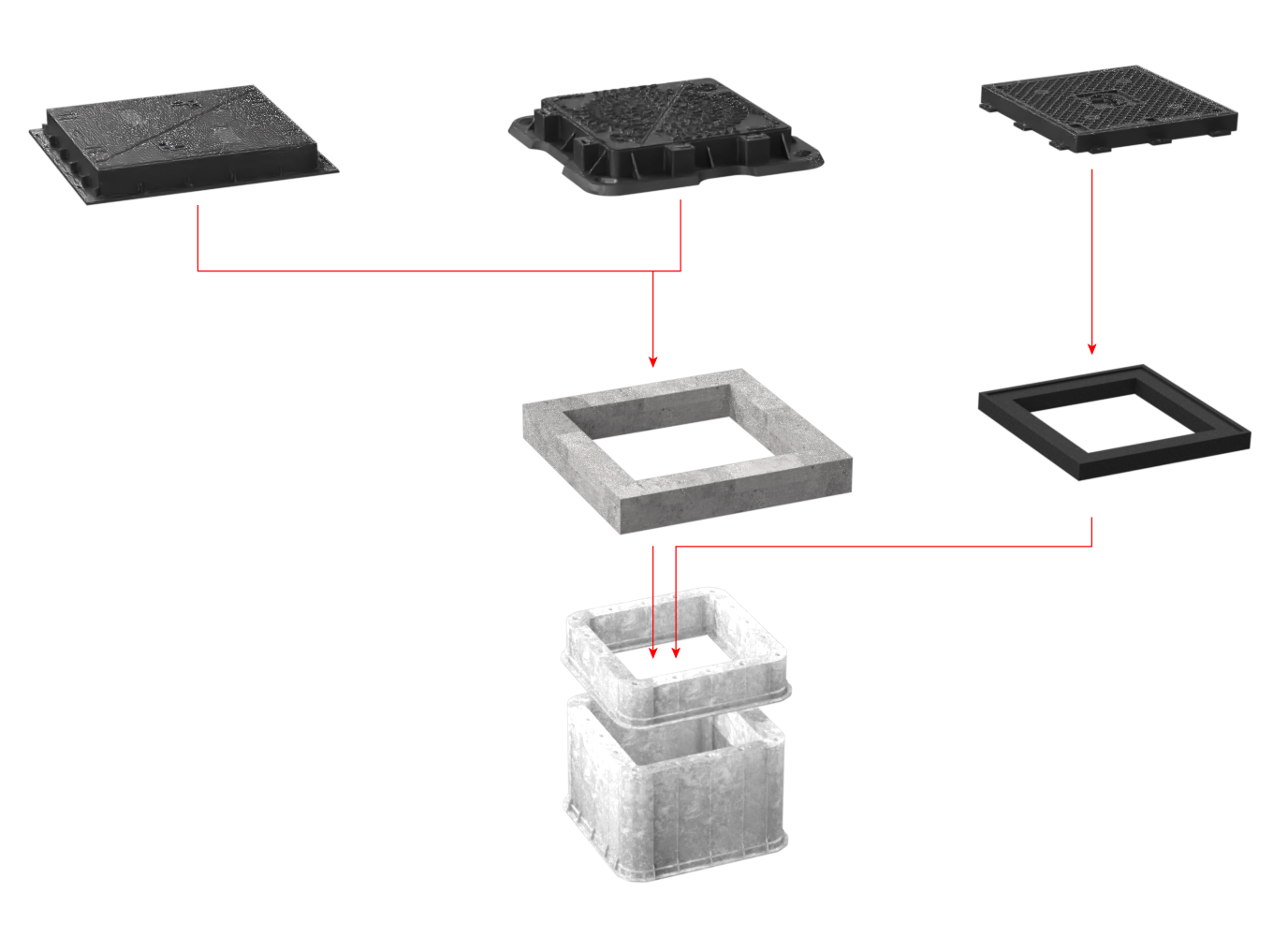

Components
-
Technical information
-

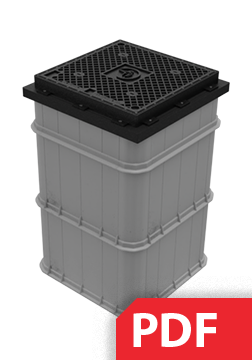

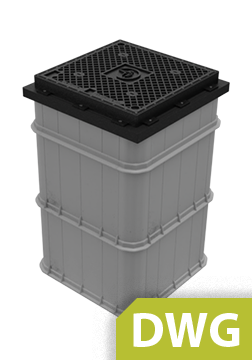

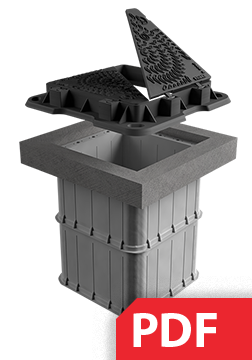

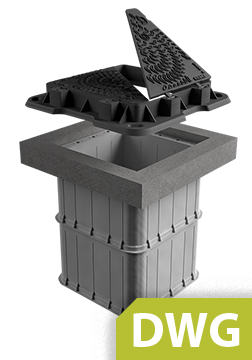

Drawings
