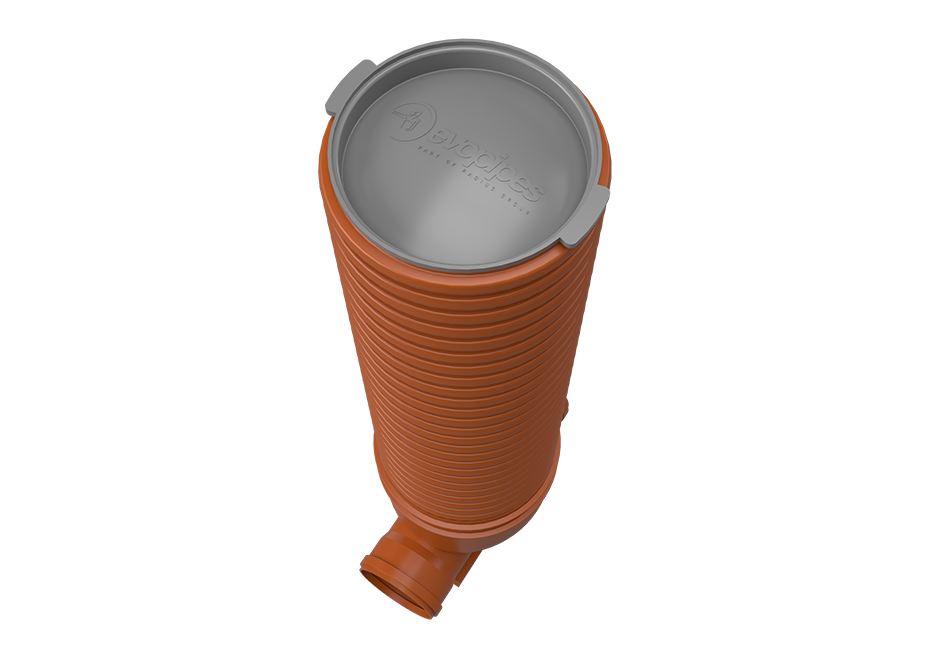

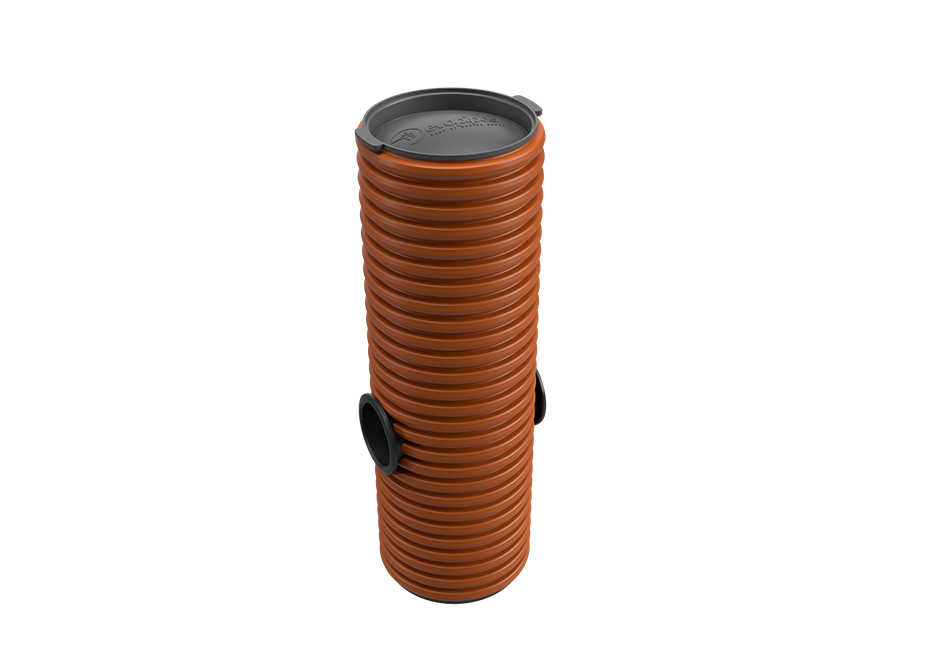

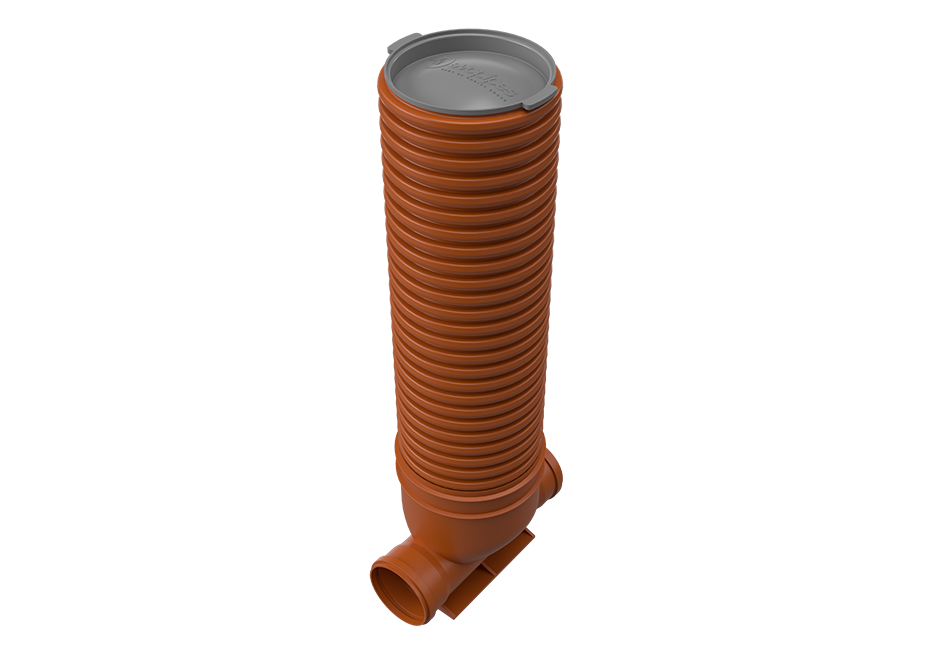

Inspection chamber with plastic cover DN 400
With corrugated pipe shaft
Connections DN/OD 110, 160, 200, 250, 315 mm
Inspection chamber DN/OD 400 [mm] with plastic cover for installation outside traffic load impact zones, for example in green areas (courtyards, parks, etc.).
- Connections at 135°, 180°, 225°
- Connection DN/OD 110 .. 400 [mm]
-
Advantages
Long service life (>50 years)
Flexibile for movements in soil (no cracking of the manhole)
Water-tightness > 0.5 bar, watertight materials
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks
-
Recommended application
Places outside traffic load impact zones, for example in green areas (courtyards, parks, etc.)
-

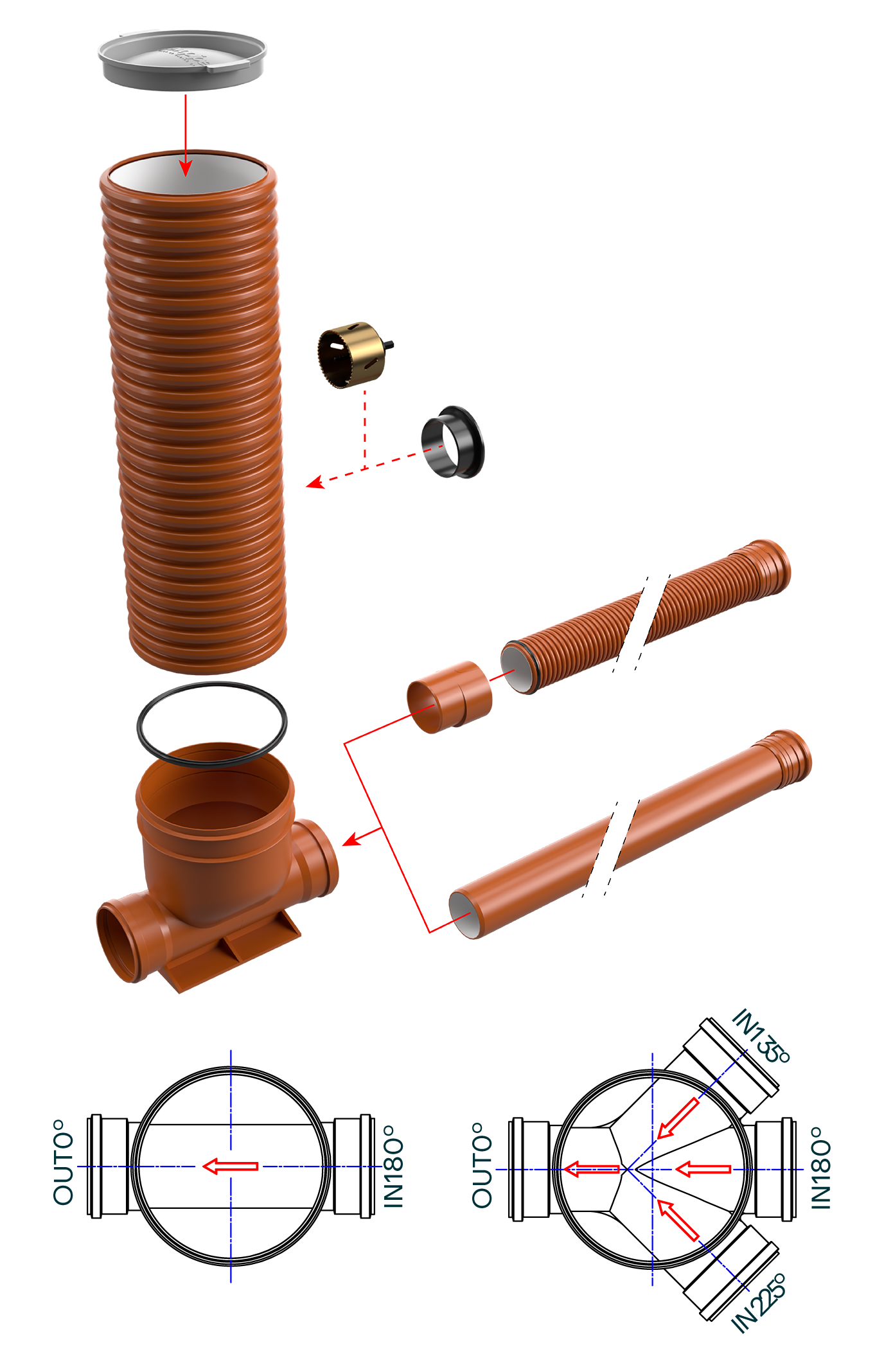

Chamber components
Type 1B 3BL Connections OUT 0° / IN 180° OUT 0°
IN 135° / 180° / 225°DN/OD [mm] 160 / 200 / 250 / 315 / 400 110 / 160 / 200 / 250 / 315 By using 3BL type base and end cap(s) it is possible to make 1BB, 2BL, 2BT type base configuration
-
Technical information
-
Minimum instalation depth: 1.0 m
-
Maximum installation depth is up to 4.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 3.0 m, according to the requirements of EN 13598-2 standard.
-
Round plastic cover, stationary type, polypropylene (PP), DN 400 mm, corresponds to the requirements of EN 13476-3 and EN 124-6 standard
-
Height-adjustment corrugated PP double-wall shaft DN/OD 400 mm correspond to the requirements of EN 13476-3 and EN 14802 standards
-
Rubber sealing ring DN 400 mm correspond to the requirements of EN 681-1/A3 and EN 1277 standards
-
Base of chamber CSB and CSS DN 400 mm PP correspond to the requirements of EN 13598-2 standard
-
-
Drawings

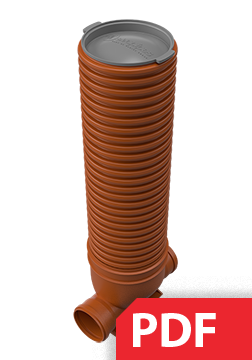

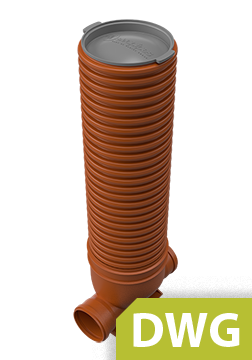

Standard Drawing DN400 with sediment trap PDF
Chamber DN400 with plastic cover for green areas
Download
For other file versions please contact us.
