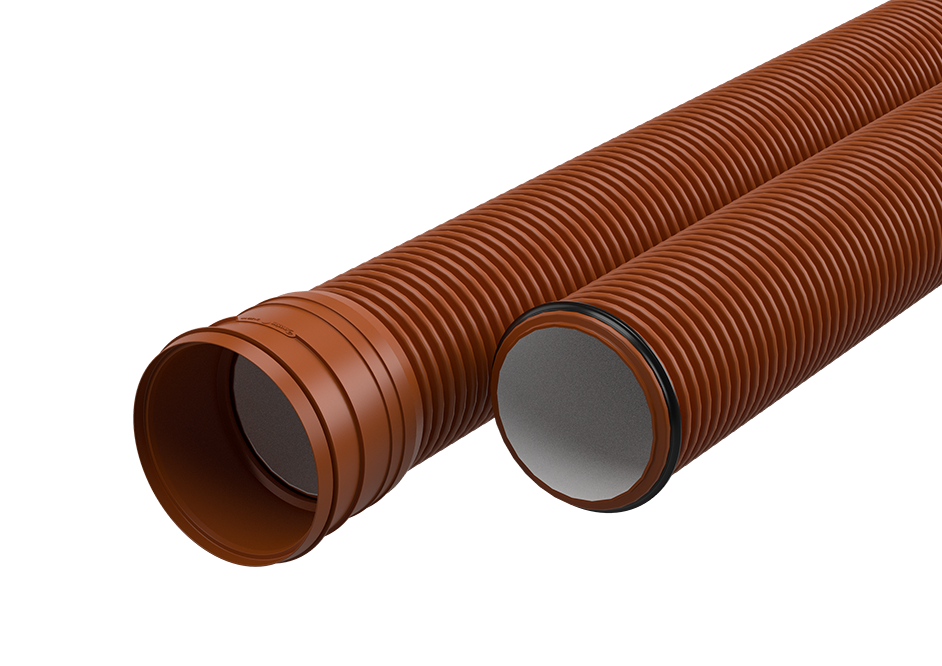

EVOSAN
Utility wastewater pipe, EN 13476-3 type B
SN8 [kN/m²], DN/OD 160, 200, 250, 315, 400 mm
EVOSAN double-wall pipes with profiled (corrugated) external and smooth internal surface, type B, polypropylene (PP) pipes for the construction of utility wastewater infrastructure. Their respective flow rate and reliability guarantee excellent work application in pipeline network systems.
- DN/OD 160, 200, 250, 315, 400 [mm]
- Produced according to EN 13476-3
- Ring stiffness: SN8 [kN/m²]
- Standard pipe lengths: 3 and 6 [m]
The design of the pipe consists of two layers with a structured outer and smooth inner layer surface from PP material. The external side is corrugated and the profile properties guarantee high mechanical strength and impact resistance parameters. Smooth internal walls of the pipes ensure the excellent hydraulic properties required for pressure-free (natural gravity) systems.
EVOSAN pipes are flexible and preserve water tightness even in the most problematic soil conditions. They are resistant to deformation when installed under roads with heavy loads.
-
Advantages
Good balance between product ring stiffness, ring flexibility and impact resistance
The products can be installed in low temperatures until -10 °C
Products are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The products are environment-friendly and recyclable after several decades in operation
Long operational life - over 100 years
-
Recommended application
Rain and domestic sewerage network connections of private houses
Rainwater collection in the tank for domestic use of water
Rainwater collection system for transfer to the common network
Building construction areas
Street construction - with and without traffic load
Extension of existing sewerage system networks
Industrial territory utilities
-
Technical information
- Material: polypropylene (PP)
- Produced according to EN 13476-3
- Ring stiffness SN8 [kN/m²]
- Ring flexibility RF30
- Impact resistance determined at -10°C (ice crystal)
- Available sizes DN/OD 160, 200, 250, 315, 400 [mm]
- Standard pipe bar length¹: 6 [m]
At one end EVOSAN pipe is equipped with welded-on solid PP coupling, but at the other end - a rubber sealing ring² is installed (placed) on the first full groove of the corrugation. The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 [bar] (for the coupling area).
¹ Other lengths are available on request
² The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe dimensions Dimensions DN160 DN200 DN250 DN315 DN400 Outer Ø [mm] 160 200 250 315 400 Inner Ø [mm] 138.9 174.6 215.9 274.1 349.8 -
Certificates
EVOSAN & EVORAIN EN 13476 Certificate ENG (INSTA-CERT)
Conformity mark certificate (INSTA-CERT)
Download
Pipe conformity:
EVOSAN SN8 pipes conform to EN 13476 requirements and are Nordic Poly Mark certified- bearing the conformity mark.
