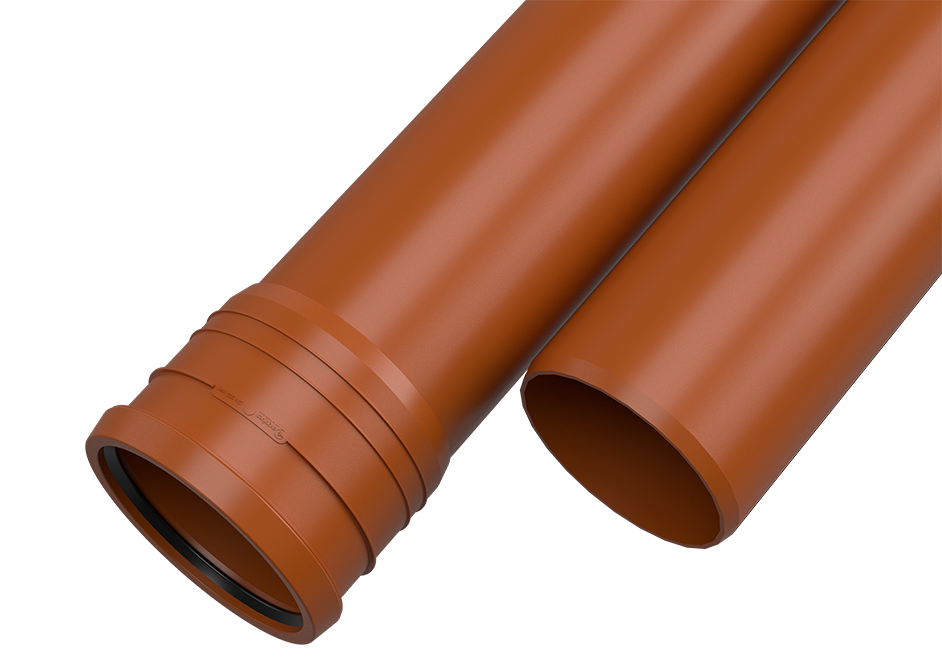

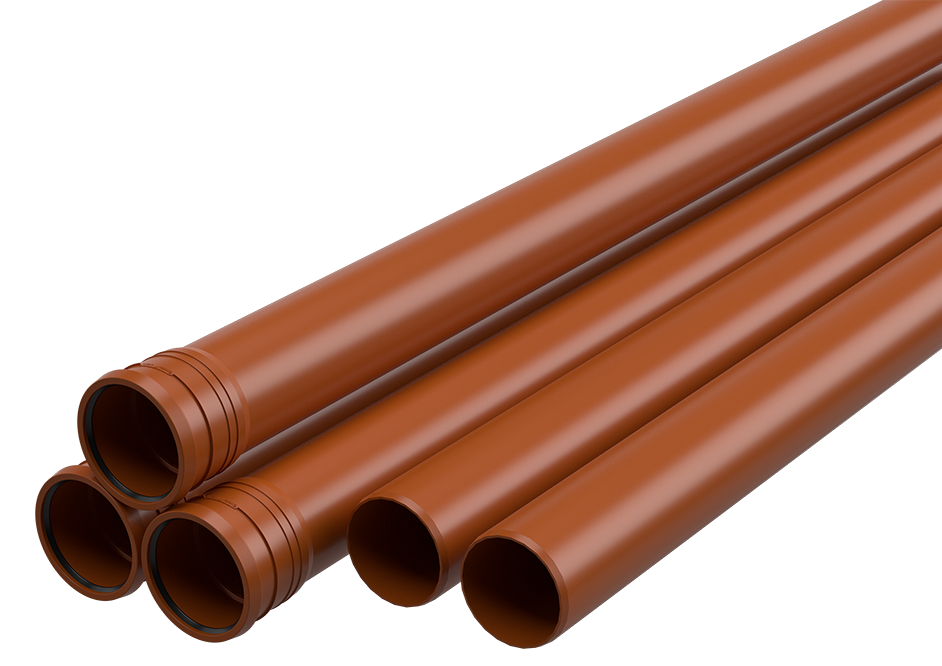

RIGID MONO PP
Smooth homogeneous sewage pipes, EN 1852-1 type A
SN8* [kN/m²], DN/OD 110, 160, 200, 250, 315, 400 mm
RIGID MONO PP- smooth-wall pipes for gravity sewer network systems with friction welded socket and locking sealing ring. Solid-wall pipe designed from homogeneous flexural modulus polypropylene (PP) material.
A classic choice for professionals!
- Ring stiffness class¹ SN8 [kN/m²]
- DN/OD 110, 160, 200, 250, 315, 400 [mm]
- Produced according to EN 1852-1
- Standard pipe length²: 6 [m]
¹ Other ring stiffness class pipes available on request
² Other lengths are available on request
EVOPIPES has developed a high-quality, safe, and efficient RIGID MULTI PP, RIGID MONO PP, and RIGID MONO PP-MD gravity sewer infrastructure system. This system includes SN8 smooth-wall pipes, chambers, gullies, and different types of fittings that are necessary for effective system construction.
-
Advantages
Good balance between product ring stiffness, ring flexibility and impact resistance
The products can be installed in low temperatures until -10°C
Products are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The products are environment-friendly and recyclable after several decades in operation
Long operational life - overs 100 years -
Recommended application
Utility sewerage systems at building construction areas
Street construction - with and without traffic load
Extension of existing sewerage system networks
Industrial territory utility sewerage systems
Storm water systems for stadiums and sport complexes
Storm water lines for pavements, pedestrian and bicycle paths
In parks, squares and recreational areas
-
Technical information
RIGID MONO pipe is designed from homogeneous flexural modulus polypropylene (PP) material.
The pipe is equipped with SEAL LOCK socket and integrated sealing ring³. The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 bar (for the coupling area).- Material: polypropylene (PP-B)
- Produced according to EN 1852-1
- Ring stiffness¹ SN8 [kN/m²]
- Ring flexibility RF30
- Impact resistance determined at -10°C (ice crystal)
- Available sizes: DN/OD 110, 160, 200, 250, 315, 400 [mm]
¹ Other ring stiffness class pipes available on request
³ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe conformity:
RIGID MONO PP SN8 pipes conform to EN 1852-1 requirements and are Nordic Poly Mark certified- bearing the conformity mark.
-

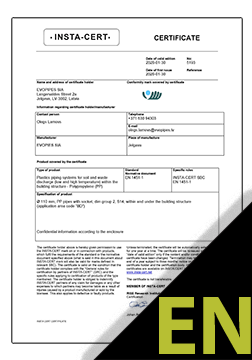

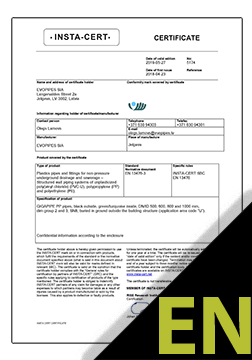

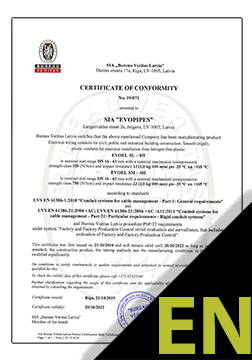

Certificates
