EVODUCT RHDPE
Cable pipes made from RHDPE
Normal impact resistance, Compression strength: 1250, DN/OD 32 .. 400 mm
EVODUCT RHDPE pipes - product is made to promote circular economy (less waste to be buried) and reduce material costs. High quality of recycled high density polyethylene (RHDPE) is used to produce the pipes.
- Available sizes: DN/OD 32 .. 400 [mm]
- Compression strength class: 1250
Due to the specifics of the RHDPE material EVODUCT RHDPE pipes are designed for installations in open trench (mainly). It is not recommended to install them with trenchless solutions. However, customers who understand and can control risks connected to the RHDPE material can install the pipe with trenchless solutions (horizontal directional drilling).
-
Advantages
- Economically advantageous solution due to the usage of recycled raw materials.
- Promotion of circular economy (less waste to be buried) - RHDPE material (recycled high density polyethylene).
- Reducement of environmental footprint by selecting products made from recycled raw materials.
- Saving natural resources and energy - by producing pipes from recycled materials these resources are saved.
- Easy, convenient, and more cost-effective construction of cable networks and preparation for cable-pulling (with cord or blowing).
-
Recommended application

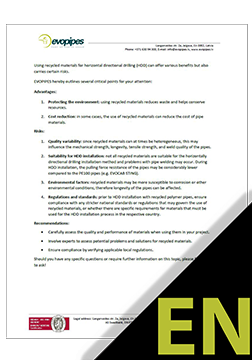

Notice regarding recycled materials
Details on the benefits and risks associated with products made from recycled raw materials.
Download
EVODUCT RHDPE pipes can be buried directly in the soil, in concrete, or directly in the water. They are used for the installation of telecommunication or power cables employing traditional installation methods - pulling with a cord or blowing.
Due to the specifics of the RHDPE material EVODUCT RHDPE pipes are designed for installations in open trench (mainly). It is not recommended to install them with trenchless solutions. However, customers who understand and can control risks connected to the RHDPE material can install the pipe with trenchless solutions (horizontal directional drilling).
-
Technical information

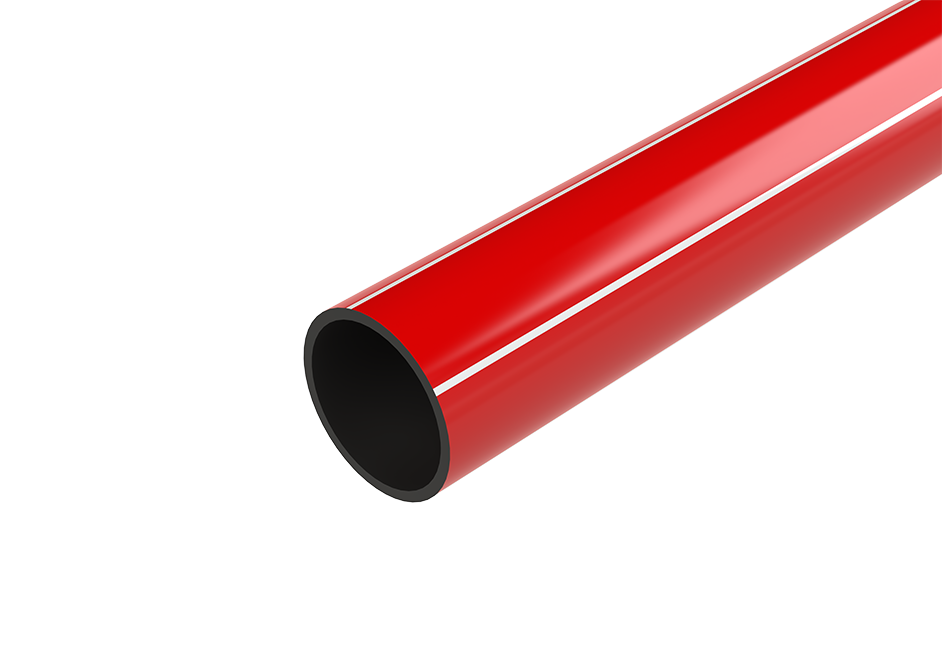

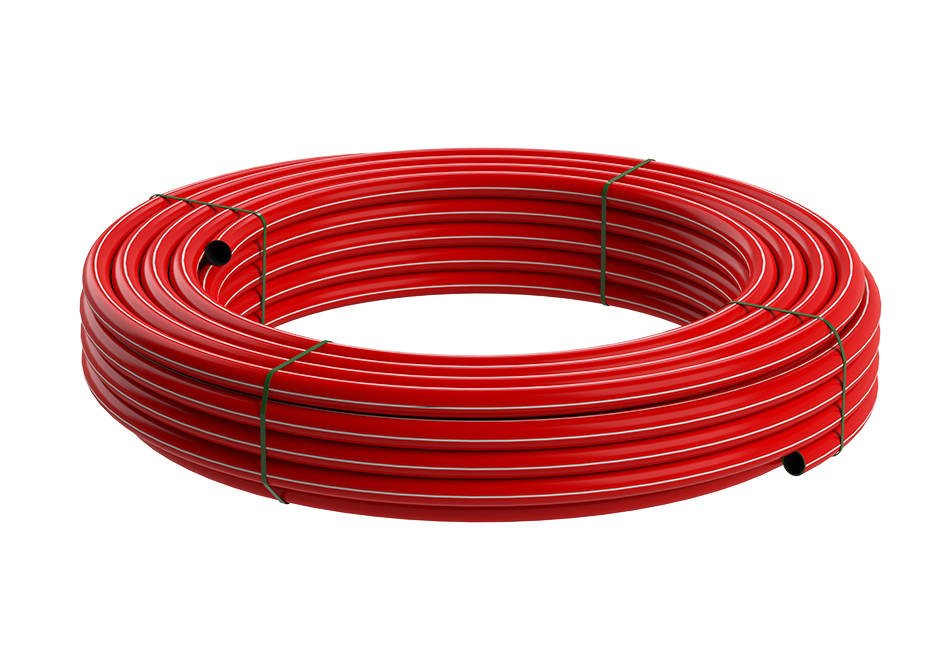

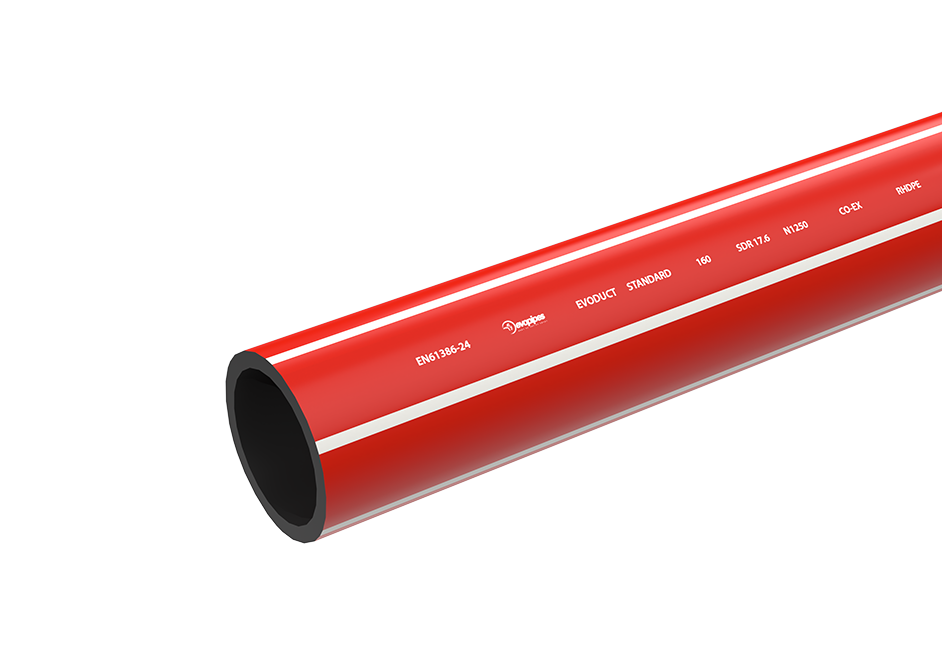

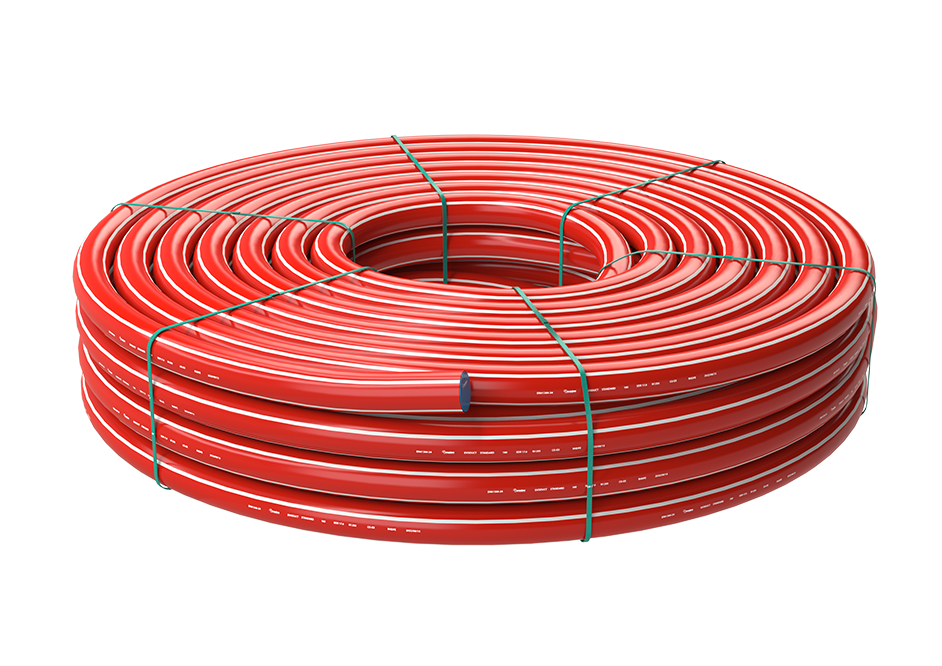

EVODUCT RHDPE pipes are red (RAL 3020) with 4 (every 90º) white single or double longitudinal lines along the entire length. They bear white thermal labelling located at 1 m intervals (minimum symbol height — 4 mm). The labelling includes information about the product and the name of the manufacturer.
On request, pipes / longitudinal lines of any colour (according to RAL) can be manufactured. Custom-made labelling is also possible.
- Material: recycled polyethylene (RHDPE)
- Compression strength class - 1250
- Impact resistance - N normal
- Temperature range from - 25ºC to +90ºC
- Resistance to internal pressure 20 ºC, 1,0 [MPa] (EN ISO 1167)
- Temperature shrinkage: ≤3% 110 ºC, 1 h (EN ISO 2505:2005)
Pipe dimensions Dimensions DN32 DN40 DN50 DN63 DN75 DN90 DN110 DN125 DN160 DN180 DN200 DN225 DN250 DN315 DN400 Outer Ø [mm] 32 40 50 63 75 90 110 125 160 180 200 225 250 315 400 Inner Ø [mm] 26.0 34.0 44.0 55.4 66.0 79.2 103.4 110.2 141.2 158.8 176.4 198.6 220.6 278.0 353.0 Wall thickness [mm] 3.0 3.0 3.0 3.8 4.5 5.4 6.6 7.4 9.4 10.6 11.8 13.2 14.7 18.5 23.5 SDR class 11 13.6 17 17 17 17 17 17 17 17 17 17 17 17 17 Bend radius [≥ m] 0.64 0.8 1.00 1.26 - - - - - - - - - - -
R- Bend radius
D- Bend diameterInstallation of the cables by blowing, recommendable conditions:
- Air pressure range: 0.8–1.2 [MPa]
- Airflow rate: 10–12 [m³/min]
-
Certificates
The EVODUCT RHDPE cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
This products hasn't been tested and certified by independent third party institution.
