EVOCAB SUPERHARD N 1250
Reinforced corrugated double-wall pipes
Normal Impact resistance, Compression strength: 1250, DN/OD 110 .. 400 mm

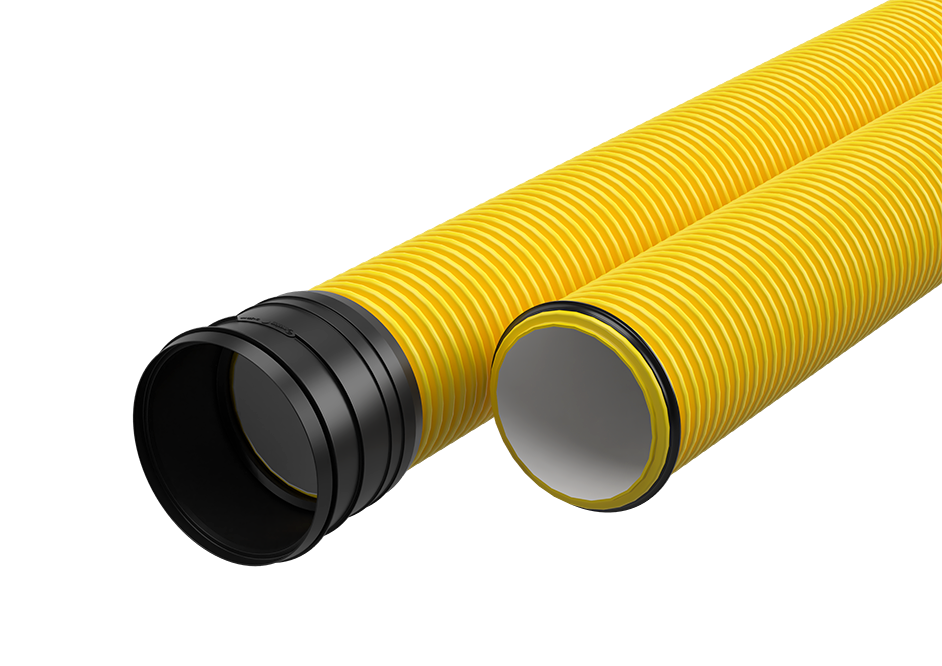

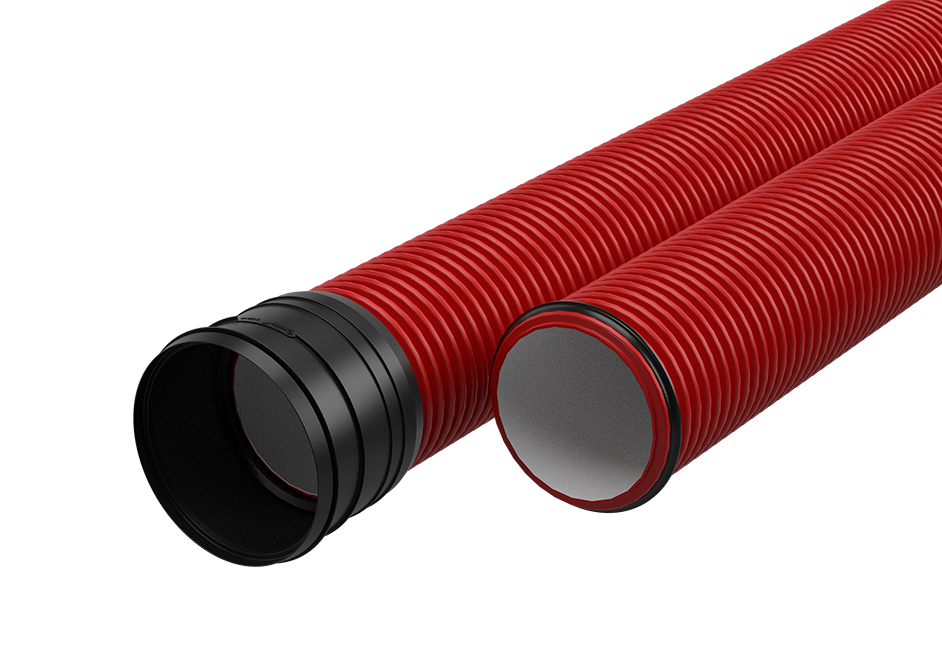

EVOCAB SUPERHARD N 1250 reinforced double-wall cable protection pipes are designed for underground high-voltage cable lines.
By design they have structured walls: corrugated outer wall ensures high compression strength properties thanks to their special profile. The smooth inner surface of the pipe ensures easy pulling of cables. Due to their special structural properties, these cable protection pipes are lighter, but more rigid, as well as more impact-resistant than the conventional smooth-wall pipes.

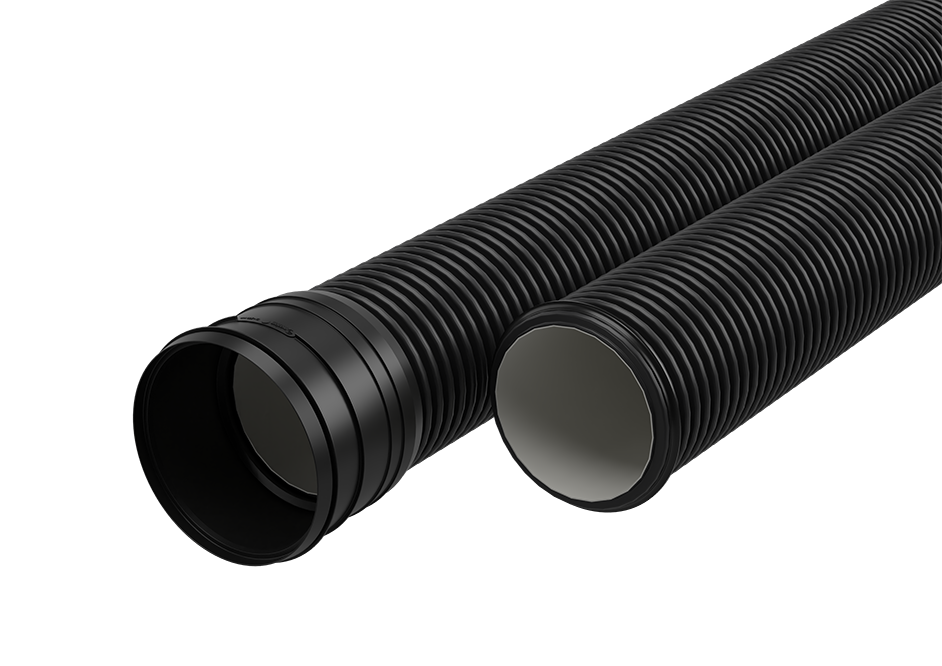

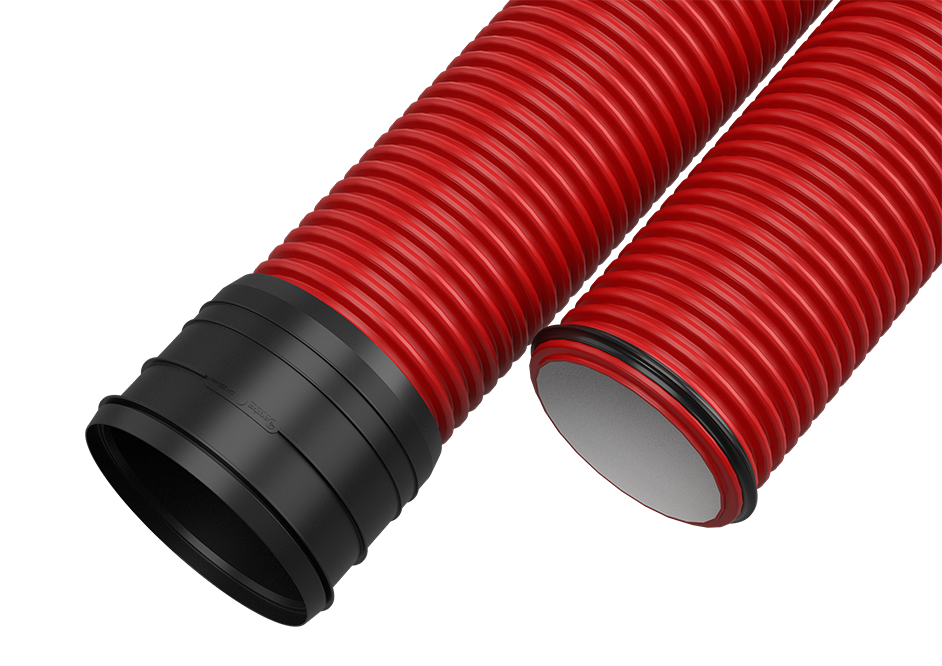

SUPERHARD pipes are supplied in straight 6 m bars (+ coupler).
- Available sizes: DN/OD 110 .. 400 [mm]
- Compression strength class: 1250
- Pipe length: 6 [m] + coupler
-
Advantages
- High compression strength allows installation of the conduits at shallower depths, thereby shortening the installation time and optimising the costs
- Quicker, more convenient, and more cost-effective construction of high-voltage cable networks
- Easy, safe, and fully hermetic coupling of the conduits
- High impact strength is maintained even at the lowest temperatures
- Chemically inert, with high corrosion resistance.
- Service life: minimum 50 years
-
Recommended application
Protection of electrical systems near railway lines
Onshore wind parks
SUPERHARD cable protection pipes are made of a rigid material and designed to withstand soil and vehicle loads. They provide long-term protection of high-voltage cables in high-load conditions, e.g. installations under traffic lanes.
These pipes can be used for underground protection and insulation of cables and are especially suitable for systems requiring a high compression strength, i.e. under roads, squares, etc.
-
Technical information
The standard colour of the pipes is red (RAL 3020). Other colours are available on request.
- Material- polypropylene (PP)
- Compression strength class:- 1250
- Impact resistance: N (normal)
- Temperature range: from -40ºC to +95ºC
- Pipe type: rigid
- Sealing rings¹ provide water resistance up to 0.5 [bar]
¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe dimensions Dimensions DN110 DN160 DN200 DN250 DN315 DN400 Outer Ø [mm] 110 160 200 250 315 400 Inner Ø [mm] 93.8 138.9 174.6 215.9 274.1 349.8 Length (with coupler) [m] 6 6 6 6 6 6 -
Certificates
The EVOCAB cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
