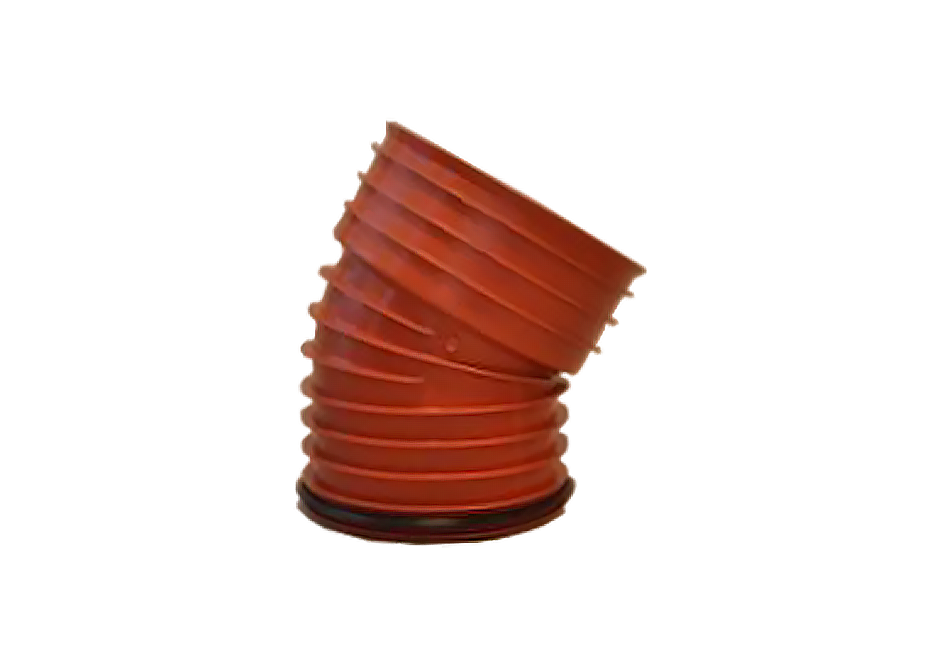

Elbow 15°, 30°, 45°, 90°
EVOCAB SUPERHARD accessories
DN/OD 160 .. 400 mm
Elbow 15°, 30°, 45°, 90°
EVOCAB SUPERHARD accessories
DN/OD 160 .. 400 mm
Order information
| DN/OD [mm] | Package [pcs] | Code |
|---|---|---|
| Elbow 15° | ||
| 110 | - |
8260101100003E0000
|
| 160 | 12 |
8260101600003G0000
|
| 200 | 6 |
8090102000003G0000
|
| 250 | 1 |
8260102500003G0000
|
| 315 | 1 |
8260103150003G0000
|
| 400 | 1 |
8090104000003G0000
|
| Elbow 30° | ||
| 160 | 8 |
8260101600005G0000
|
| 200 | 5 |
8090102000005G0000
|
| 250 | 1 |
8260102500005G0000
|
| 315 | 1 |
8260103150005G0000
|
| 400 | 1 |
8090104000005G0000
|
| Pipe DN/OD [mm] | Package [pcs] | Code |
| Elbow 45° | ||
| 160 | 8 |
8090101600006G0224
|
| 200 | 4 |
8090102000006G0224
|
| 250 | 1 |
8260102500006G0000
|
| 315 | 1 |
8260103150006G0000
|
| 400 | 1 |
8090104000006G0000
|
| Elbow 90° | ||
| 160 | 8 |
8260371600008G0000
|
| 200 | 4 |
8090102000008G0000
|
| 250 | 1 |
8260102500008G0000
|
| 315 | 1 |
8260103150008G0000
|
| 400 | 1 |
8090104000008G0000
|
Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
