EVOCAB SPLIT N 750
Split pipes
Normal impact resistance, Compression strength: 750, DN/OD 60 .. 220 mm
EVOCAB SPLIT N 750 split pipes consist of two halves and integrated locking system that can safely enclose an existing bundle of cables.

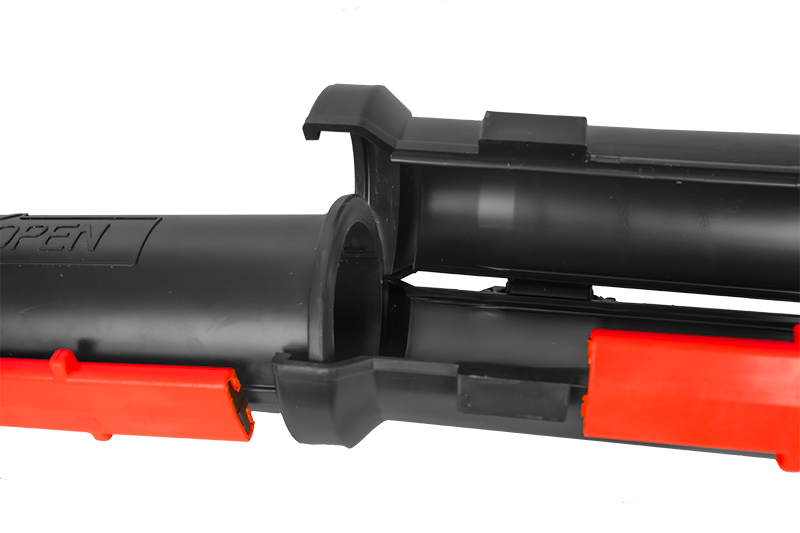

It is a divisible pipe solution with an integrated connection system and side clamps, which can be installed quick and easy, without requiring any tools. The divisible pull-resistant sleeve provides an ideal connection to ensure that the entire line remains fully protected, even over long distances.
- Available sizes: DN/OD 60, 110, 160, 220 [mm]
- Compression strength class: 750
The split pipes can be reused many times and they are 100% recyclable.
-
Advantages
- High mechanical protection class- 750
- Easy and fast installation
- Integrated pull resistant connection
- Can be disassembled and reused
- Bend angle at connection points up to 15°
-
Recommended application
EVOCAB SPLIT N 750 smooth-wall split cable protection pipes are designed to assist the repairs of power cable, electrical wire, telecommunication, television, and signal cable line ruptures and for mechanical protection and insulation of cables in sections where cable protection pipes of other types cannot be used.
These pipes can be installed under and over the ground.
-
Technical information
Pipe standard colour is black, but interchangeable locks are red
- Compression strength class- 750
- Impact resistance- N (normal)
- Pipe type: rigid
Pipe dimensions Dimensions DN60 DN110 DN160 DN220 Outer Ø [mm] 60 110 160 220 Inner Ø [mm] 50 99 144 200 Wall thickness [mm] 5.0 5.5 8.0 10.0 Length [m] 1 1 1 1 -
Certificates
The EVOCAB cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
