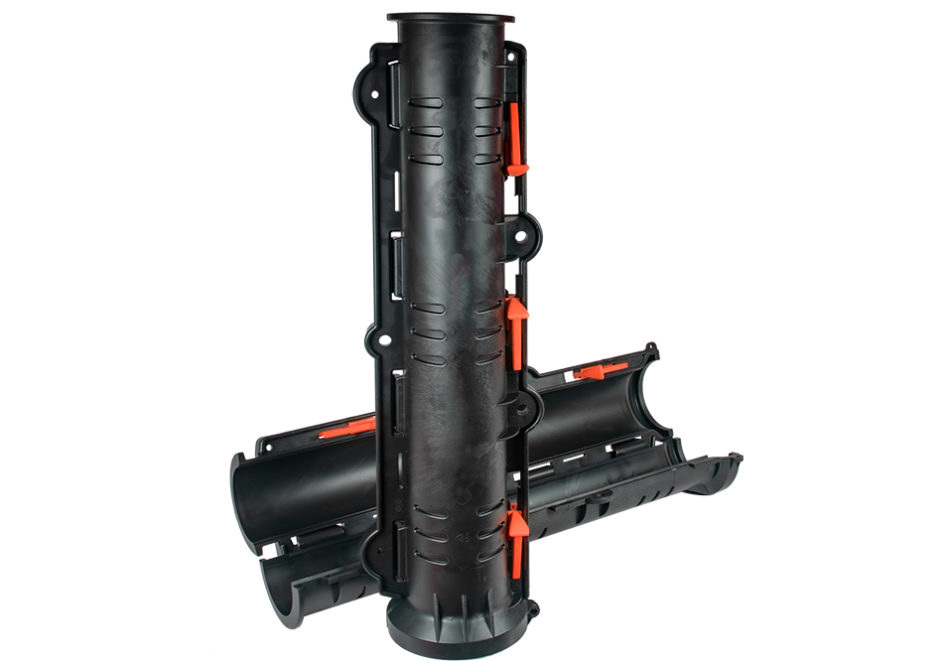

EVOCAB SPLIT N 1250 PANZAR
Split pipes
Normal impact resistance, Compression strength: 1250, DN/OD 110, 160 mm
EVOCAB SPLIT N 1250 PANZAR are divisible cable protection pipes with an integrated connection-locking system featuring tight and secure fasteners.
- Available sizes: DN/OD 110, 160 [mm]
- Compression strength class: 1250
Suitable for the most intense conditions on worksites- PANZAR pipes are designed to protect cables during repairs of power, telecommunication, and signal cable line ruptures. They provide mechanical protection and insulation of cables in sections where cable protection pipes of other types cannot be used.
These pipes can be installed under and over the ground in open trenches to protect not only cable lines but other types of engineering communications as well. PANZAR pipes are reusable- when construction or repairs are done they can be safely dismantled and used again. They are not just a pipe solution- PANZAR is a protection tool!
-
Advantages
- Easy and fast installation
- Rigid and strong connection
- Can be disassembled and reused
- More mounting and application areas
- Bend angle at connection points up to 7°
-
Recommended application
EVOCAB SPLIT N 1250 smooth-wall split cable protection pipes are designed to assist the repairs of power cable, electrical wire, telecommunication, television, and signal cable line ruptures and for mechanical protection and insulation of cables in sections where cable protection pipes of other types cannot be used.
These pipes can be installed under and over the ground in open trenches to protect not only cable lines but other types of engeneering comunications as well. Their unique design also allows for submerged- marine installations.
For more permanent installations the pipe can be fixed with bolts for extra protection.
-
Technical information
Pipe standard colour is black with red locking pins.
- Material- PP-EPDM (high quality recycled plastic)
- Compression strength class- 1250
- Impact resistance- N (normal)
- Pipe type: rigid
Pipe dimensions Dimensions DN110 DN160 Outer Ø [mm] 110 160 Inner Ø [mm] 90 140 Wall thickness [mm] 10 10 Length [m] 1,0 1,0 -
Certificates

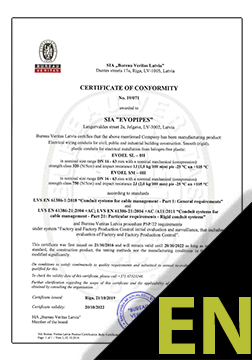

The EVOCAB cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
