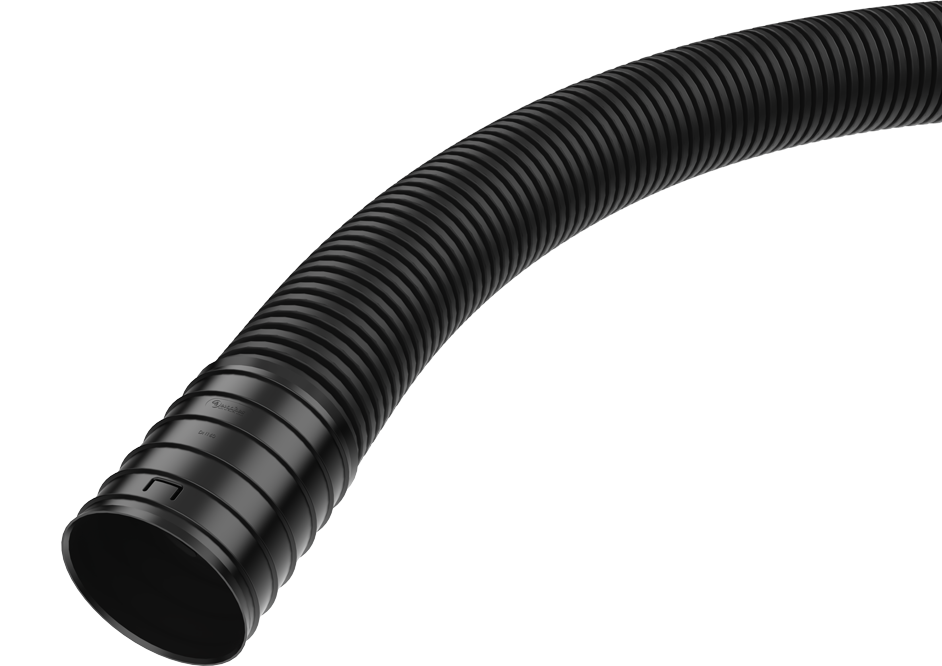

EVOCAB elbow
Cable protection accessories
DN/OD 50 .. 160

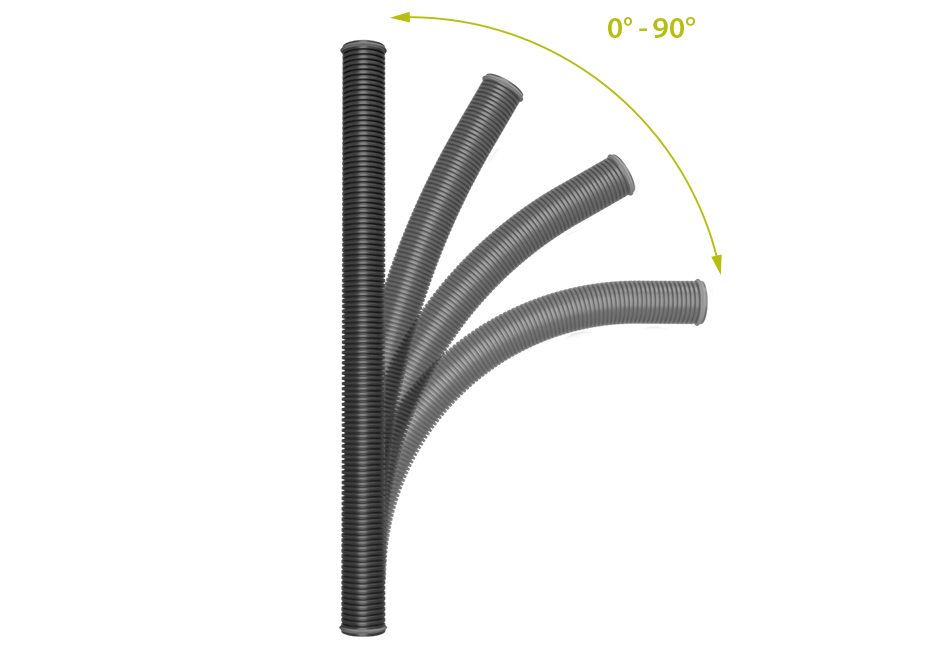

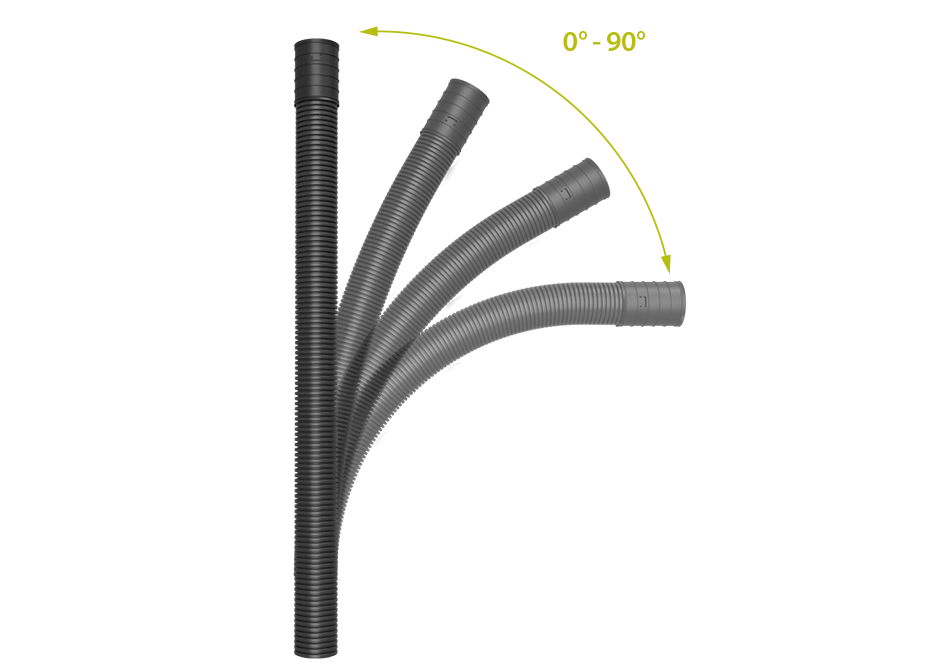

Used for small bend radiuses when installing HARD-type cable conduits.
- Available sizes: DN/OD 50, 110 and 160 [mm]
- Compression strength class: 450 or 750
-
Recommended application
Elbows can be used for underground protection and insulation of cables and are especially suitable for systems requiring a high compression strength, i.e. under roads, squares, etc.
-
Technical information
- Material- polyethylene (HDPE)
- Compression strength class: 750 (on request 450)
- Impact resistance: N (normal)
- Temperature range -25ºC to +90ºC
- Using sealing rings¹ water resistance (0.5 bar) of joints can be achieved
¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe dimensions Dimension DN50 DN110 DN160 Outer Ø [mm] 50 110 160 Inner Ø [mm] 40.7 94.1 137.0 Length [m] 1 1.5 1.5
