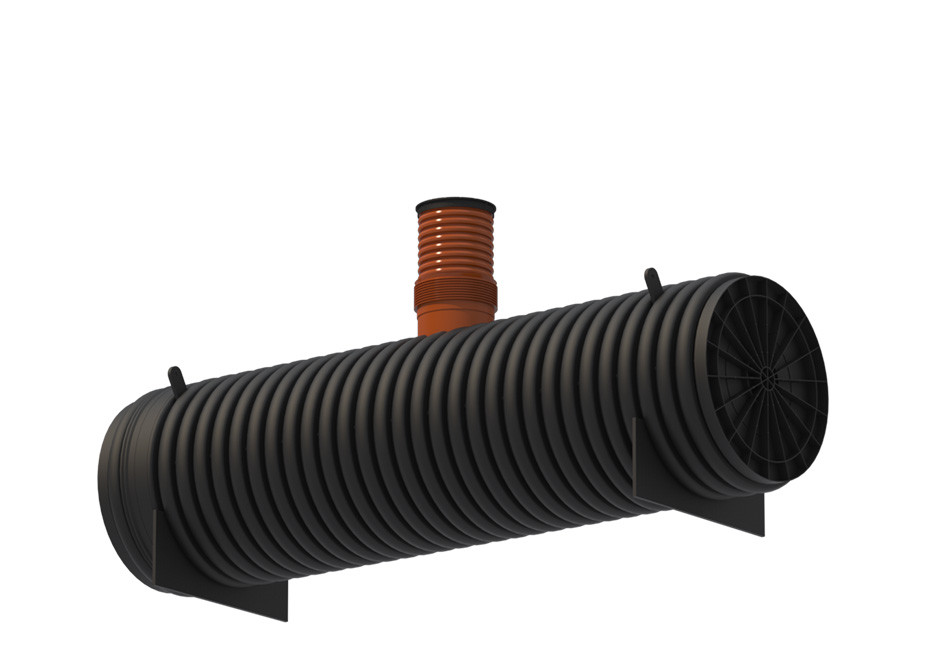

Storage tank DN/ID1000
Horizontal type storage tank
DN/ID1000, 1-10m³, A15, D400, SN8

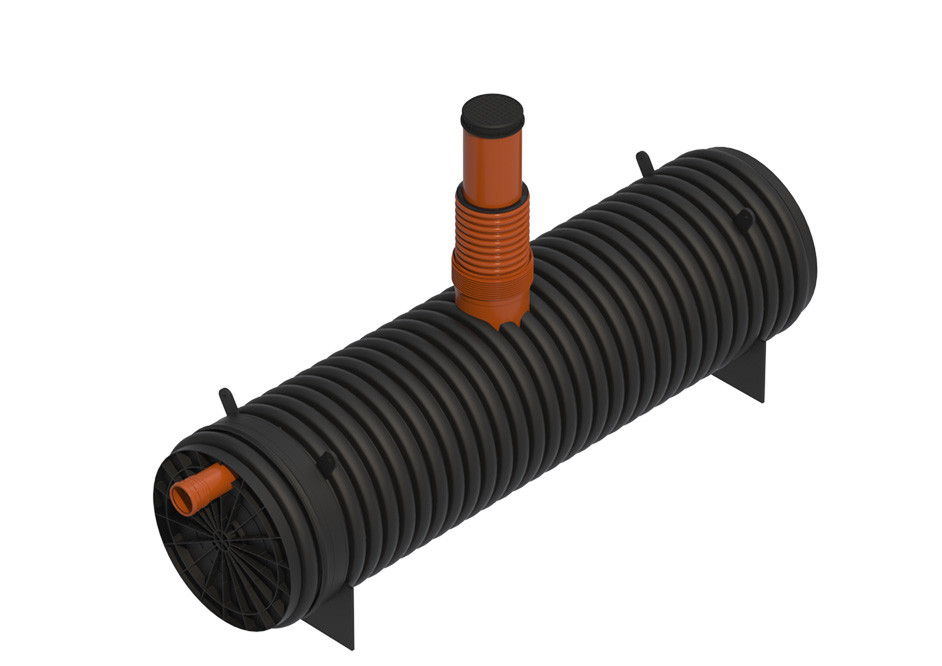

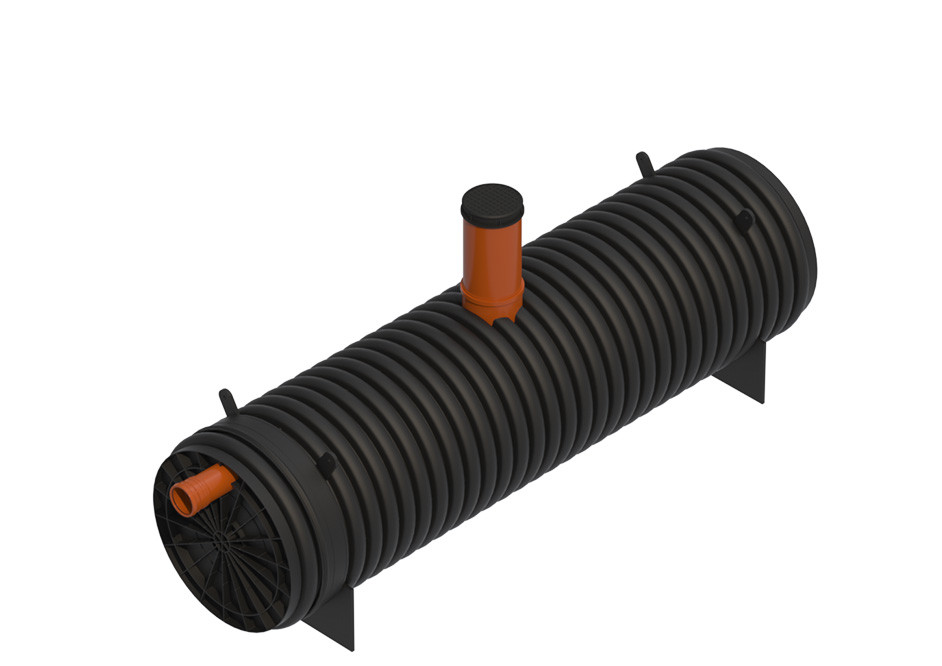

Storage tank DN/ID1000 - double-wall polypropylene (PP) tank, designed for horizontal storage of liquids above ground or underground. It is possible to place the tank both in the green area and in the driving part, choosing a solution with a cover of the appropriate load class.

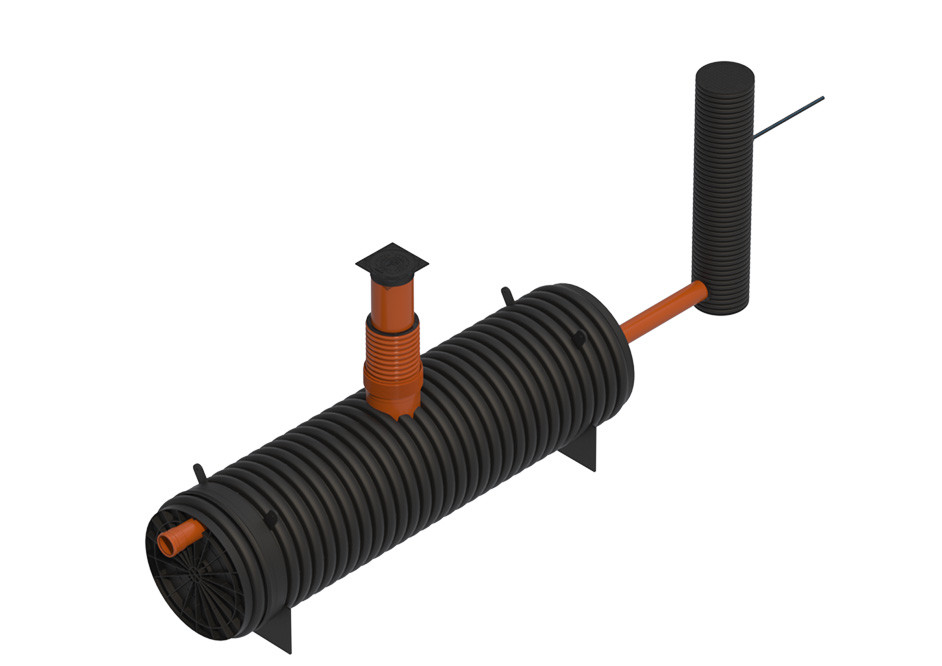

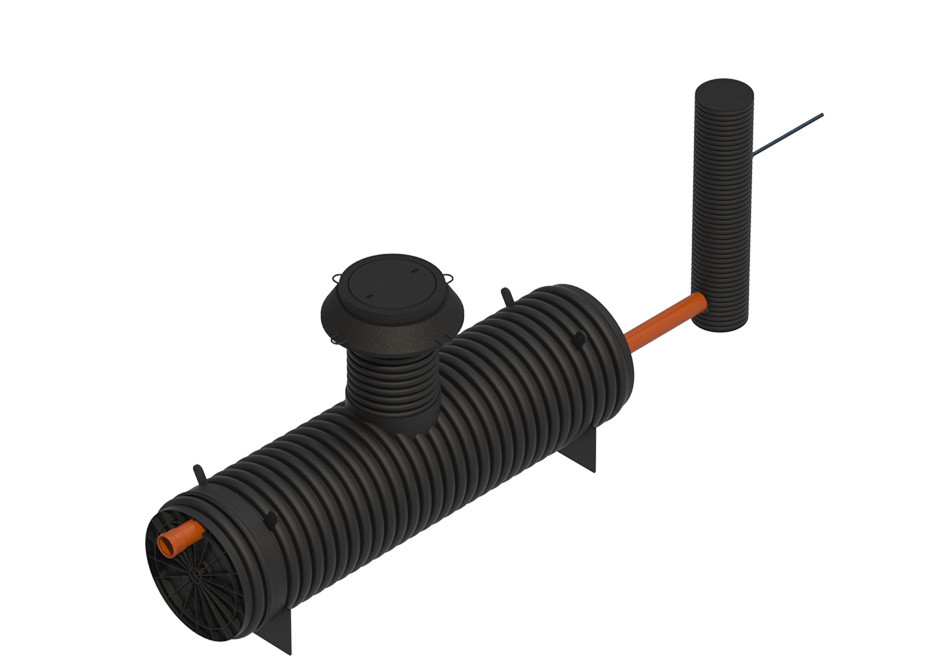

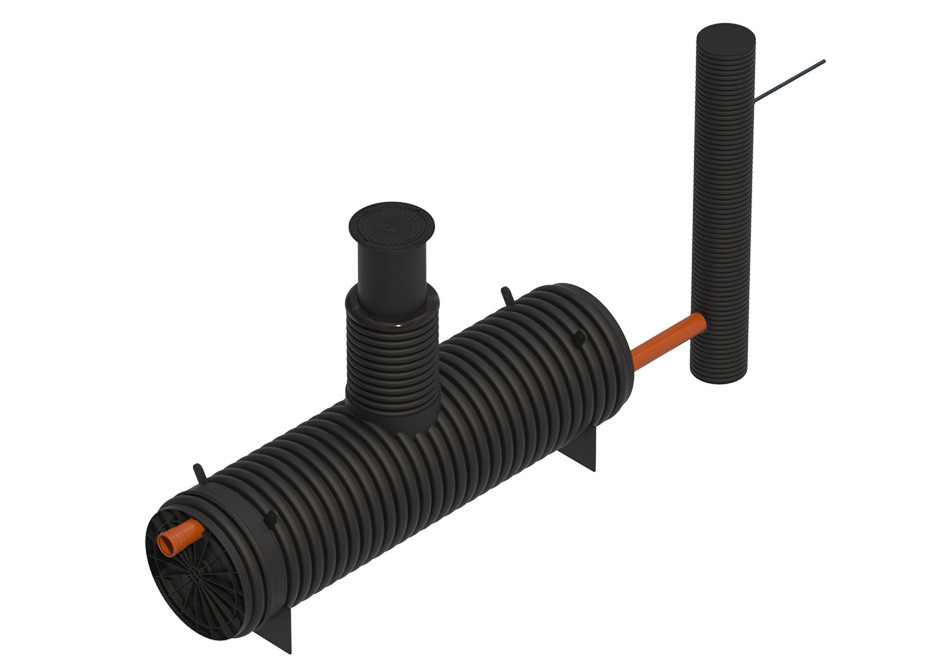

Optionally, the tank can be ordered with or without the ID400 pump station.
-
Advantages
- Construction is possible even at low temperatures (up to -10 °C)
- Can be placed free-standing on the ground or buried in the ground.
- Hermetically sealed, preventing liquid leakage, as well as preventing substances and organisms in the environment from entering the tank.
- The product is compatible with both existing and newly constructed systems.
- Environmentally friendly, recyclable even after several decades of service.
- Resistant to corrosion and the effect of aggressive substances found in the soil.
- Product service life ≥ 100 years.
-
Application
Rain and domestic sewerage network connections of private houses
Rainwater collection in the tank for domestic use of water
The liquid storage tank can be used for rainwater, drainage, sewerage, etc. for storing liquids.
-
Installation

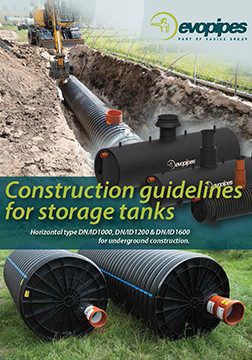

Construction guidelines for storage tanks ENG
Horizontal type DN/ID1000 to 1600 tanks for underground construction.
Download
-
Technical information
- Material: polypropylene (PP)
- Produced according to EN 1852-1
- Flange stiffness: SN8 [kN/m²]
- Impact resistance at -10 °C (ice crystal)
- Size: DN/ID1000
- *Available volumes: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 [m3]
- *Connections: DN/OD 110; DN/OD 160
* Other volumes and connections on request
-
Certificates

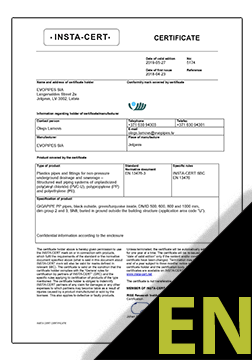

GIGAPIPE PP EN 13476-3 Certificate ENG (INSTA-CERT)
Conformity mark certificate (INSTA-CERT)
Download
