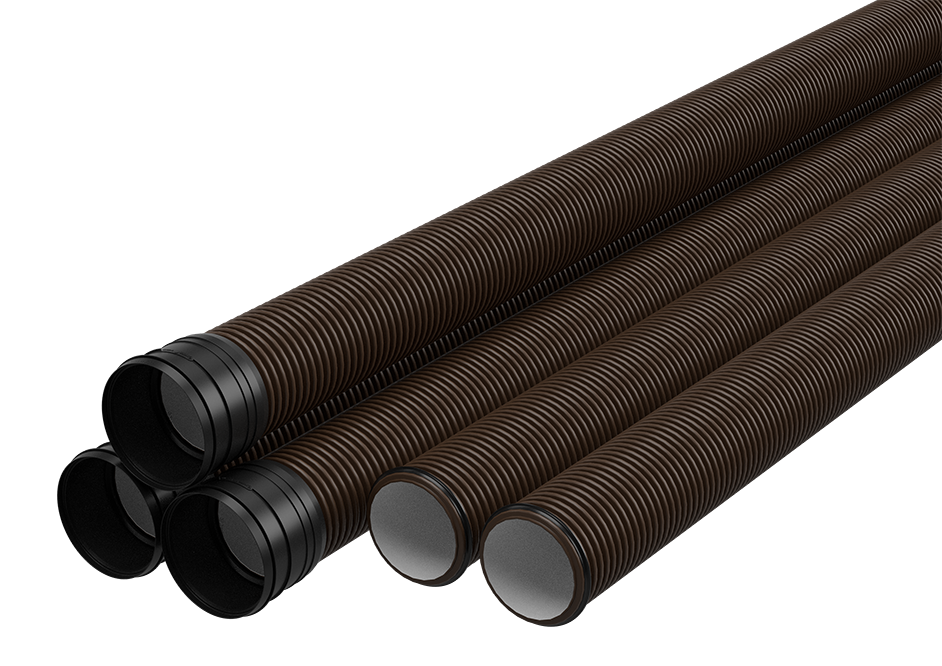

EVOSAN-RF
Utility wastewater pipe, EN 13476-3 type B
SN16 [kN/m²], DN/OD 160, 200, 250, 315 mm
EVOSAN-RF double-wall pipes with profiled (corrugated) external and smooth internal surface, type B, polypropylene (PP) pipes for the construction of stormwater and utility wastewater infrastructure. Their respective flow rate and reliability guarantees excellent work application in pipeline network systems.
- DN/OD 160, 200, 250, 315 [mm]
- Produced according to EN 13476-3
- Ring stiffness: SN16 [kN/m²]
- Standard pipe length: 3 and 6 [m]
The design of the pipe consists of two layers with a structured outer and smooth inner layer surface from PP material. The external side is corrugated and the profile properties guarantee high mechanical strength and impact resistance parameters. Smooth internal walls of the pipes ensure the excellent hydraulic properties required for pressure-free (natural gravity) systems.
Compared to standard EVOSAN pipe, not only the thickness of the corrugated outer walls of EVOSAN-RF was increased, but the design of the inner smooth wall was changed as well providing even more security in the most problematic soil conditions. They are resistant to deformation when installed under roads with heavy loads.
-
Advantages
SN16 class - perfectly suited for places with heavy traffic loads
Good balance between product ring stiffness, ring flexibility, and impact resistance
The products can be installed in low temperatures until -10 °C
Products are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The products are environment-friendly and recyclable after several decades of operation
Long operational life - over 100 years
-
Recommended application
Rain and domestic sewerage network connections of private houses
Rainwater collection in the tank for domestic use of water
Rainwater collection system for transfer to the common network
EVOSAN-RF pipe according to its indicators corresponds to installation class SN16 (ring stiffness SN16 kN/m²). Owing to SN16 class, it may be used for installation works in zones/places with large traffic loads (under tram/train lines, docks, aviation covers, etc.), places with limits of installation below 0.7 [m] or above 5 [m] and bad ground as well.
Railroad construction areas
Airport territory infrastructure
Harbors and docks infrastructure objects
Highway (motorway) construction
Tunnel construction
Other places with large traffic loads
-
Technical information
- Produced according to EN 13476-3
- Ring stiffness SN16 [kN/m²]
- Ring flexibility RF30
- Impact resistance determined at -10°C (ice crystal)
- Available sizes DN/OD 160, 200, 250, 315 [mm]
- Standard pipe bar length¹: 6 [m]

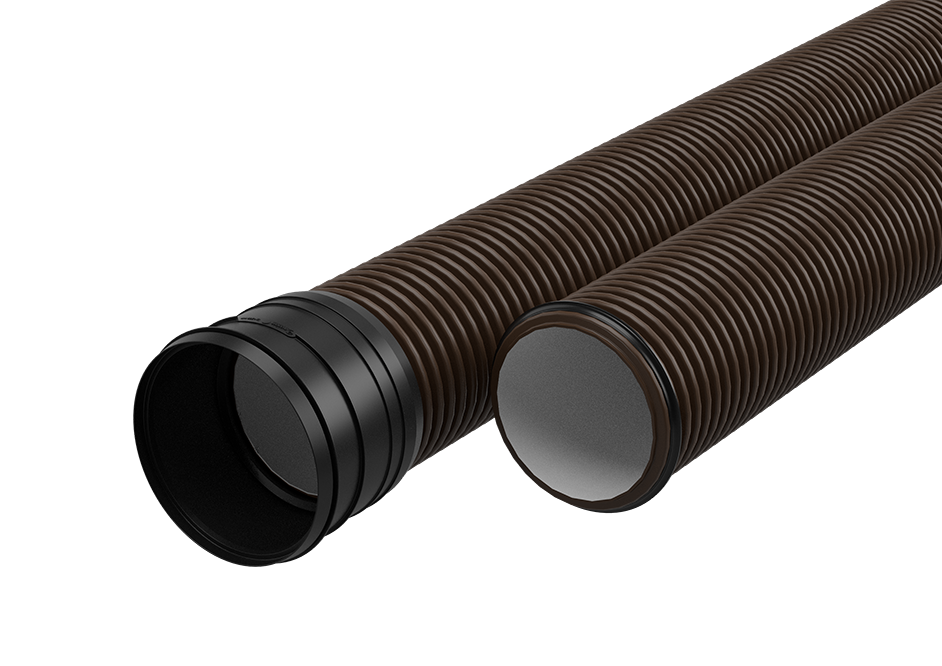

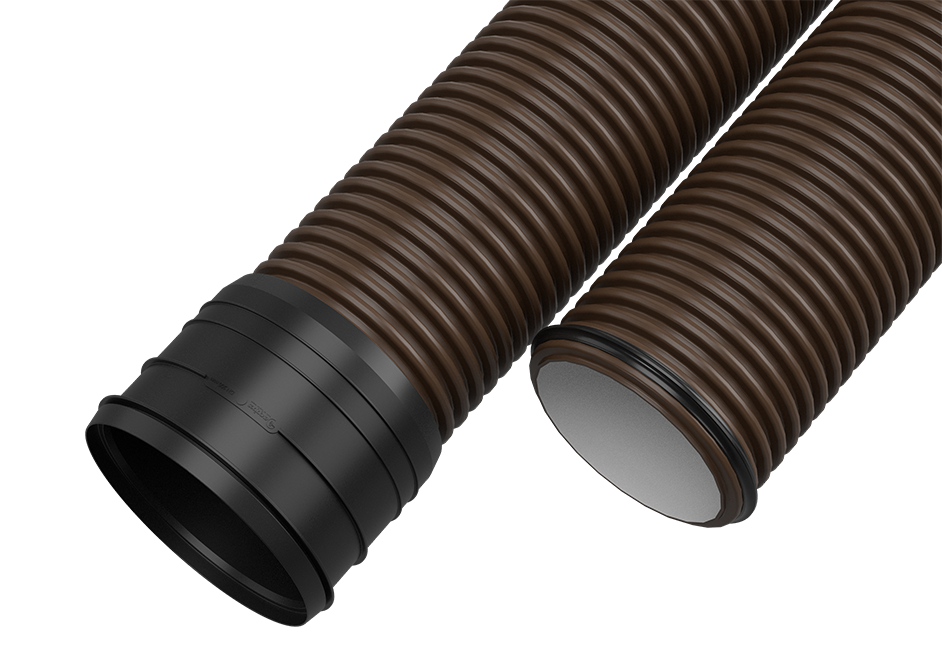

At one end EVOSAN-RF pipe is equipped with welded-on solid PP coupling, but at the other end - a rubber sealing ring² is installed (placed) on the first full groove of the corrugation. The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 bar (for the coupling area).
¹ Other lengths are available on request
² The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
Pipe dimensions Dimensions DN160 DN200 DN250 DN315 Outer Ø [mm] 160 200 250 315 Inner Ø [mm] 138.9 174.6 215.9 274.1 -

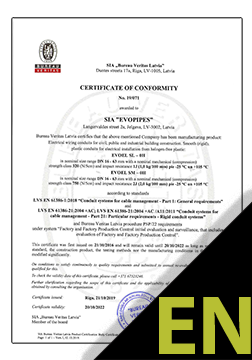

Certificates
