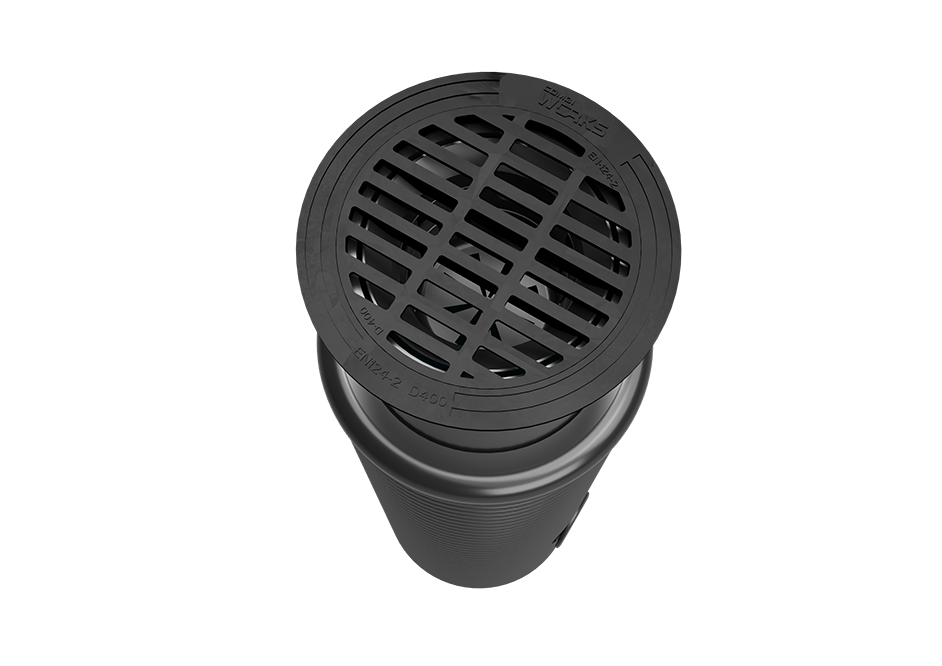

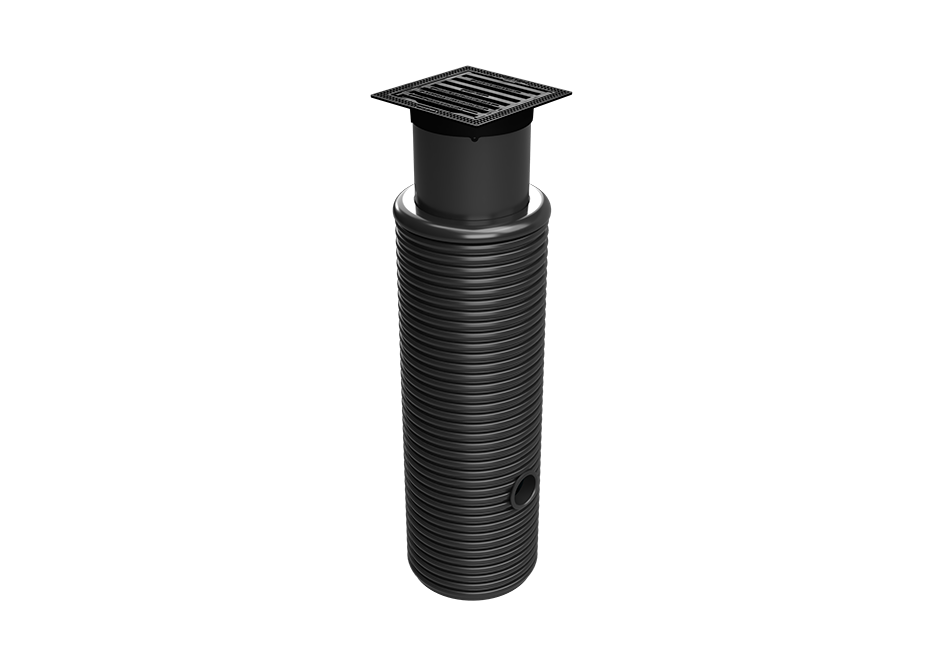

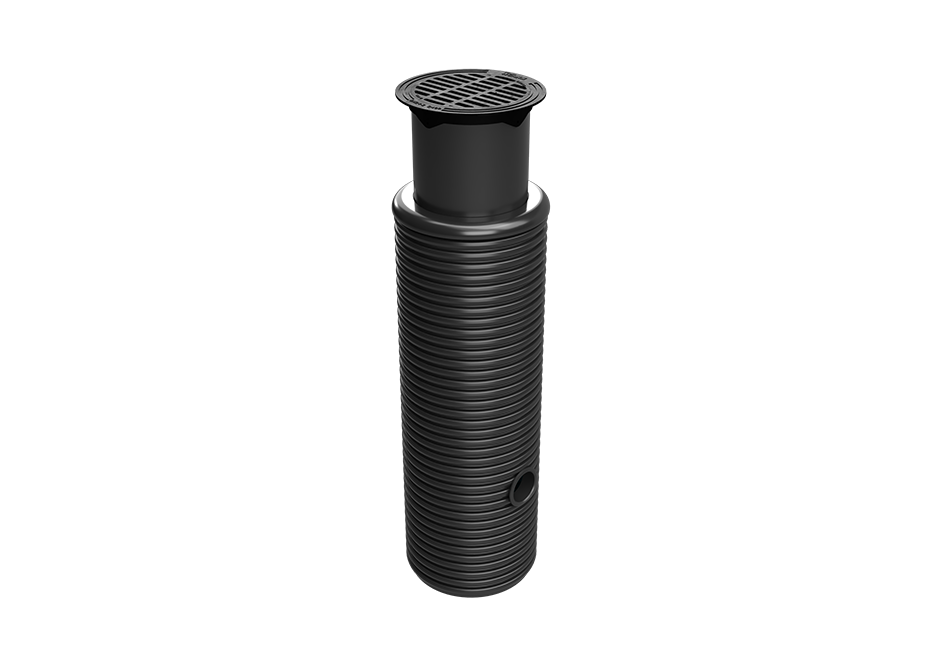

Gullies DN 600.500

With telescopic pipe and round or square grate D400

Connections DN/OD 110, 160, 200, 250, 315, 400 mm

Gullies DN/ID 600 [mm] with sediment trap, telescopic pipe and D400 class cast iron cover.

Base connections at 90° .. 270°
Connection DN/OD 110 .. 400 [mm]

Telescopic pipe: DN 500 [mm]

Sediment trap volume*: 166 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)

Advantages

	Long service life (>50 years)
	Flexible for movements in soil (no cracking of the chamber)
	Water-tightness > 0.5 bar, watertight materials
	Resistant to aggressive environment, no corrosion
	The diameter of access hole allows convenient and quick maintenance of sewerage networks

Recommended application

	Yards of multi-storey dwellings
Parking places and vehicle storage areas
	Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
	Road construction (with and without transport load)

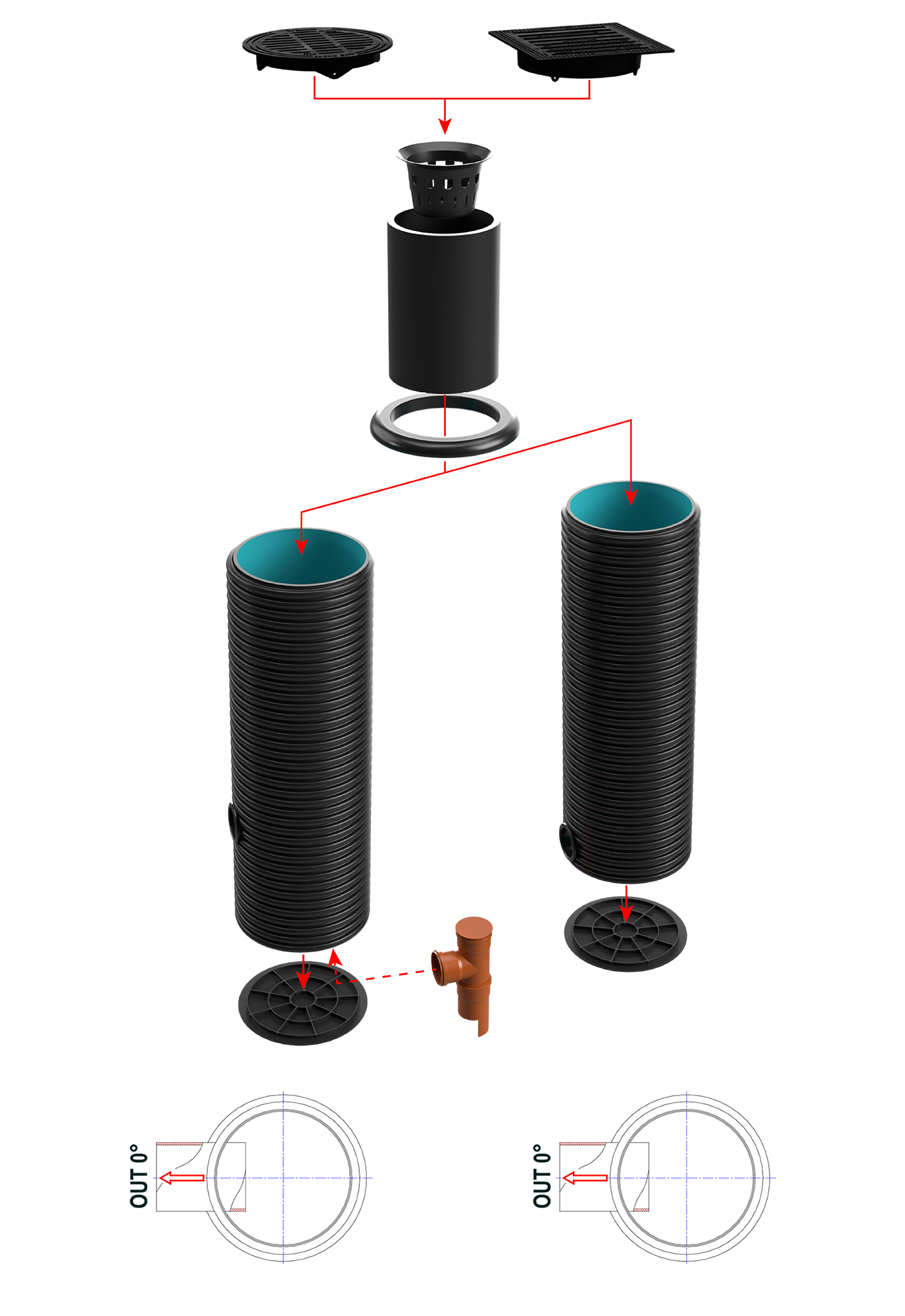

Chamber components

Connections	OUT 0°
DN/OD [mm]	110 / 160 / 200 / 250 / 315 / 400*
*connections in gullies from DN/OD 110 to 200 mm may be formed by use of coupling seal, but connections in gullies above DN/OD 200 mm should be formed by built-in connection cup

Technical information
Installation depth:
- Minimum instalation depth: 1.4 [m]
- Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard
Chamber cover:
- Round cast iron frame and grate, DN 500 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 standard
- Square cast iron frame and grate, 500x500 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 standard
Telescopic section:
- Telescopic PE smooth-wall pipe DN/OD 500 [mm], height 0.75 [m], corresponds to the requirements of EN 12201-2 and EN 14802 standards
- Rubber cuff DN 600/500 and rubber sealing ring DN 600 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
- Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
Certificates

Standard drawing DN600.500.RR DWG

DWG file format
Download

Standard drawing DN600.500.SS DWG

DWG file format
Download

Standard drawing DN600.500.D400.RR PDF

Gullies with telescopic pipe, round grate D400 and smooth or corrugated outflow pipe
Download

Standard drawing DN600.500.D400.SS PDF

Gullies with telescopic pipe, square grate D400 and smooth or corrugated outflow pipe
Download

Downloads

EVOSAN, EVOSAN RF and EVORAIN Catalogue ENG

EVOSAN rain and waste water system catalogue

Download

Order information

	Product	Code
	Telescope set
	Round cast iron frame and round grate with PE telescopic pipe, DN 500 [mm], height 0.75 [m]	827062500447300000
	Square cast iron frame and square grate with PE telescopic pipe, DN 500 [mm], height 0.75 [m]	8270655004473000EG
	Square cast iron frame and square grate with PE telescopic pipe with place for debris bucket, DN 500 [mm], height 0.75 [m]	8270655004473000EB
	Chamber covers
	Round chamber cover (frame with grate), DN 500 [mm], D400	820211500SL7300024
	Square chamber cover (frame with grate), 500x500 [mm], D400	820212500SL73000EG
	Debris bucket selection
	Debris bucket, polyethylene (PE), h=260 [mm]	8150994500077000DS
	Telescopic pipe selection
	PE smooth-wall SDR 33 telescopic pipe DN/OD 500 [mm], height 0.75 [m]	827045500440000000
	Rubber cuff
	Rubber cuff DN 600/500	815208650000000000
	Shaft selection
	DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=2 [m]	903060060090020
	DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=3 [m]	903060060090030
	Chamber base selection
	Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm], KN	815053000000000231
	Accessories
Open	Socket adapter/chamber connection accessory DN 110 [mm]	8090201100000G0200
	Socket adapter/chamber connection accessory DN 160 [mm]	8090201600000G0200
	Socket adapter/chamber connection accessory DN 200 [mm]	8090202000000G0200
Open	Coupling seal for GIGAPIPE DN 110 [mm]	8092071103G0000046
	Coupling seal for GIGAPIPE DN 160 [mm]	8092071606G0000046
	Coupling seal for GIGAPIPE DN 200 [mm]	8092072006G0000046*
	Hole saw	on request
