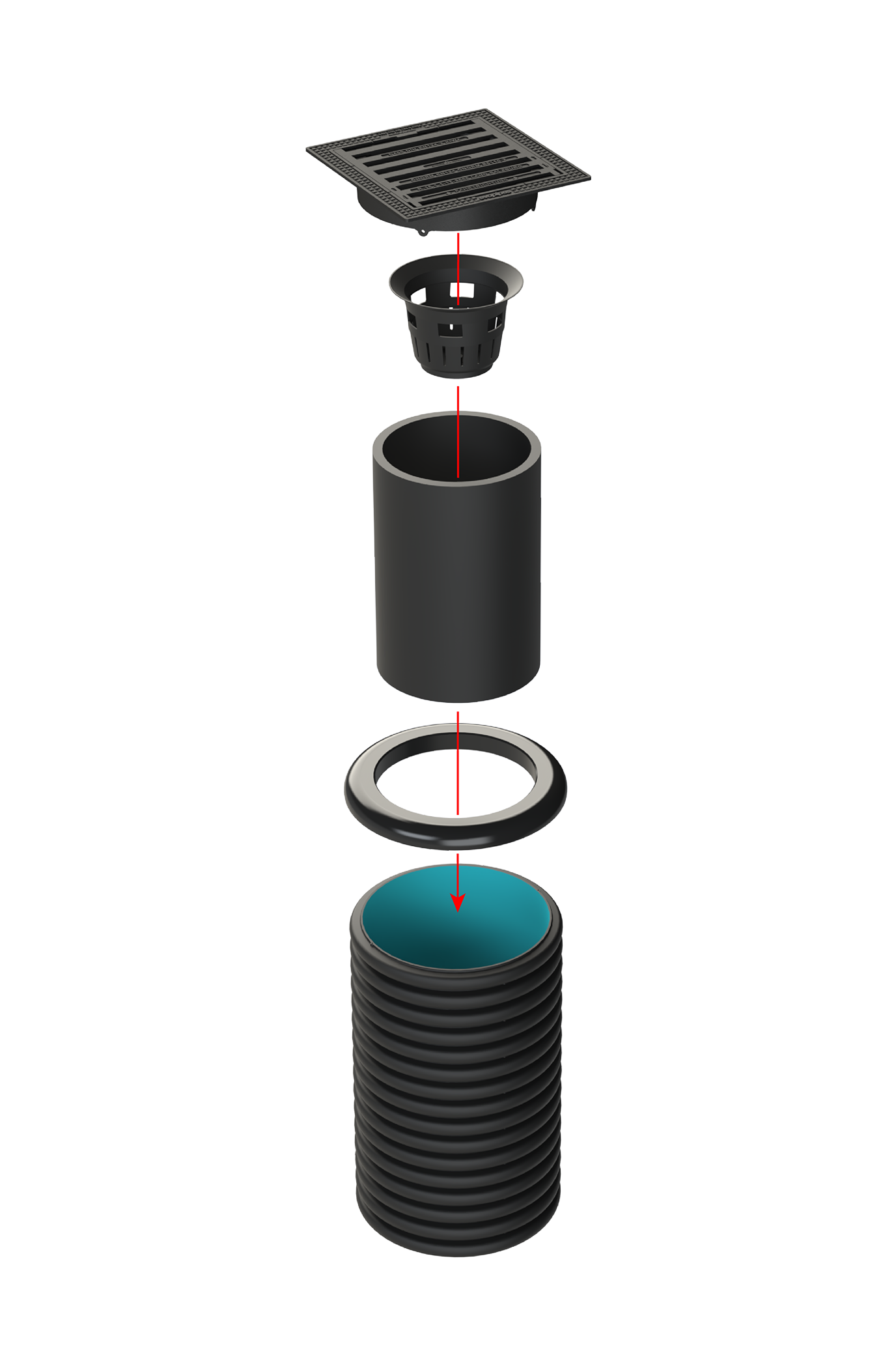

Square cast iron frame and square grate with hinge and telescopic pipe (PE100), DN/OD 500 [mm] SDR33 (s=15,3mm), SN3, height 0.75 [m].
Frame dimensions: 600x600 [mm]
Load class: D400
Certification: KIWA
Height: 122 [mm]
Weight: 49 [kg]
Available with/ without debris bucket.
| Product | Code | |
|---|---|---|
| Grate | ||
   |

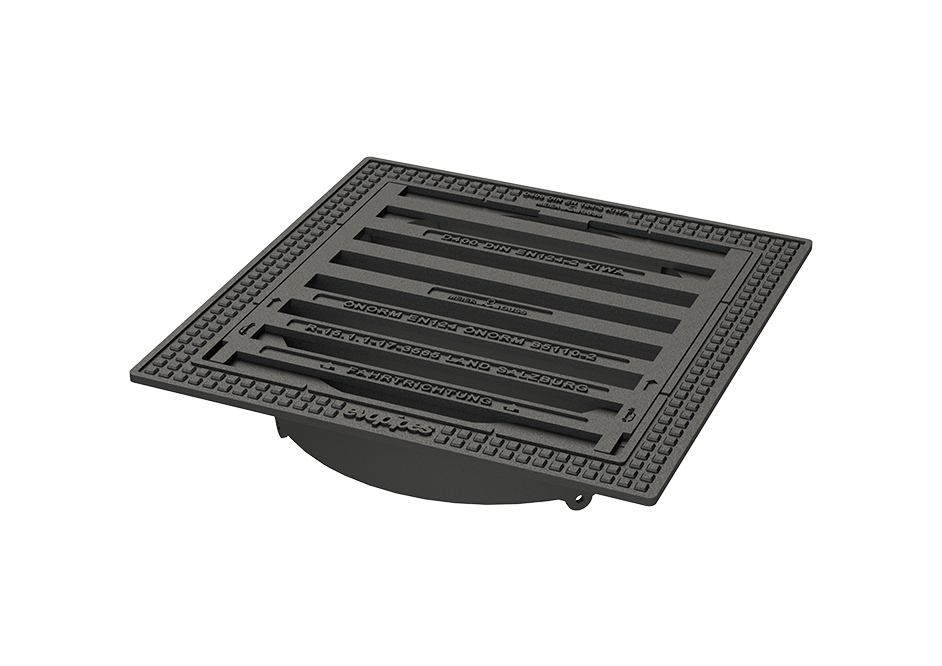

Square chamber cover (frame with grate), 600x600 [mm], D400 | 820212500SL73000EG |
| Telescope set | ||
 |

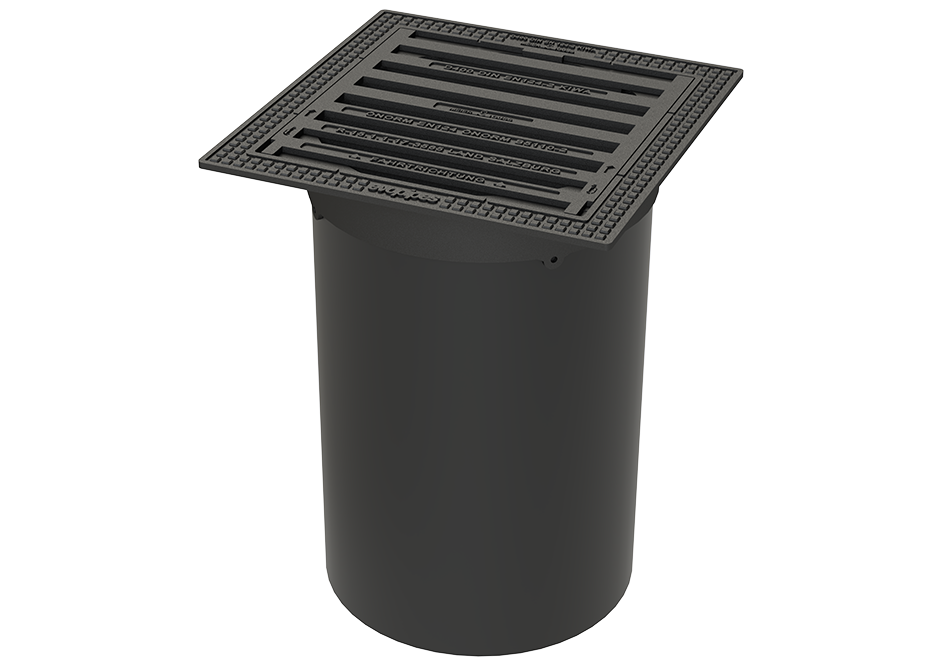

Square cast iron frame and square grate with telescopic pipe, DN/OD 500 [mm], height 0.75 [m], D400. | 8270655004473000EG |
|
Square cast iron frame and square grate with telescopic pipe, modified for debris bucket, DN/OD 500 [mm], height 0.75 [m], D400. | 8270655004473000EB |
Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
