TRACER / PROTECT signal wire system
Signal wires with protection pipe
Protection pipe - DN/OD 16 mm
 |

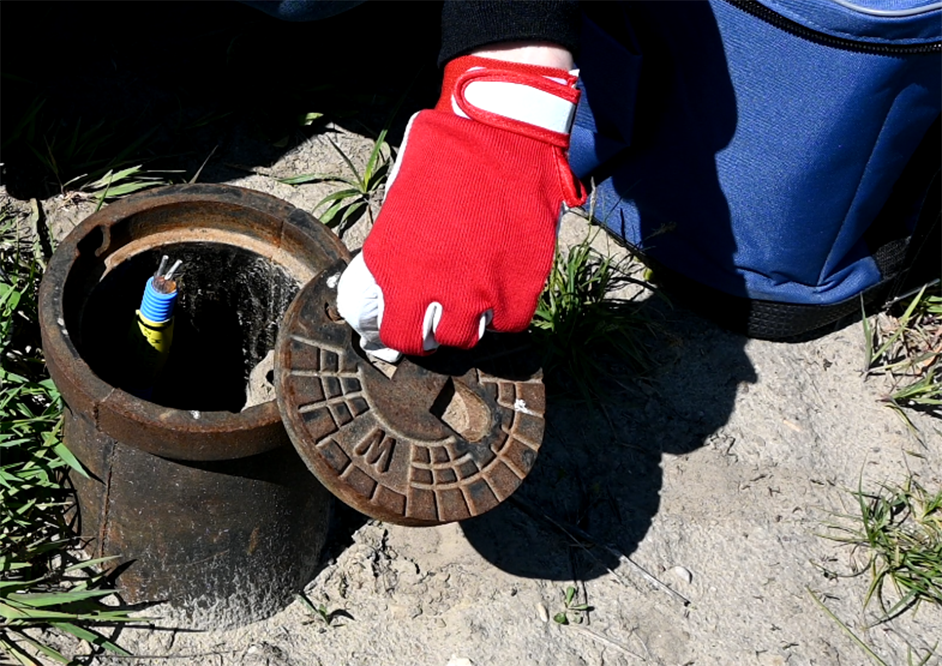

By using TRACER / PROTECT signal wire system it is possible to determine the exact location and depth of the pipeline construction and to trace the constructed pipeline without additional earthwork. |

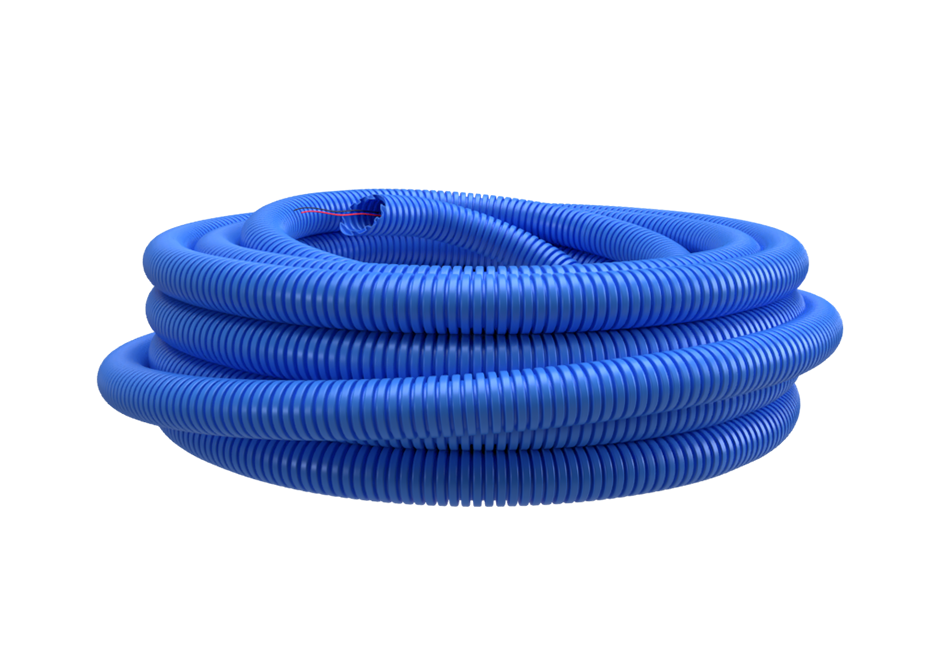

TRACER / PROTECT signal wire system is delivered in coils. In each coil - 100 [m]
-
Recommended application
Designed installation - with ULTRASTRESS VISIO, ULTRASTRESS PROTECT, EVOAQUA potable water or wastewater pressure pipes. Installation directly above the pressure pipe together with warning tape.
-
Technical information

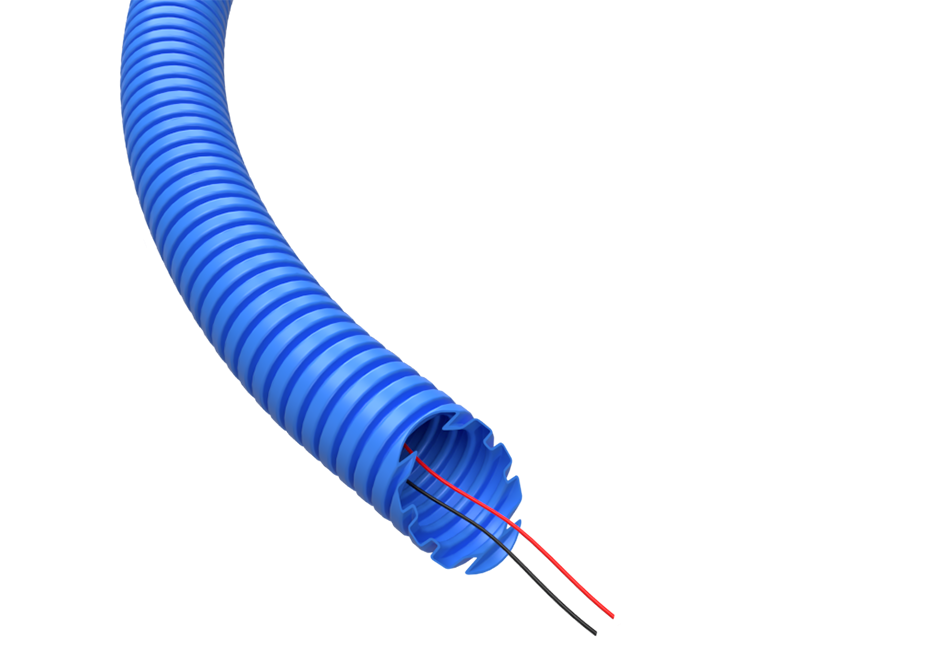

Two signal wires:
- Diameter- 0.5 [mm]
- Material- stainless steel (1.4301 / V2A)
- Cross section area - 0.24 [mm2]
- Electrical resistivity - 0.72 [Ω x mm2/m]
- Isolation material of wries - polyamide (PA)
- Isolation colour - red and black
Protective pipe:
- DN/OD - 16 [mm]
- DN/ID - 11.1 [mm]
- Material - polypropylene (PP)
- Compression strength - medium 750 [N/5cm]
- Conformity - EN 61386-22:2004+AC/A11:2011
