Cover DN160, D400

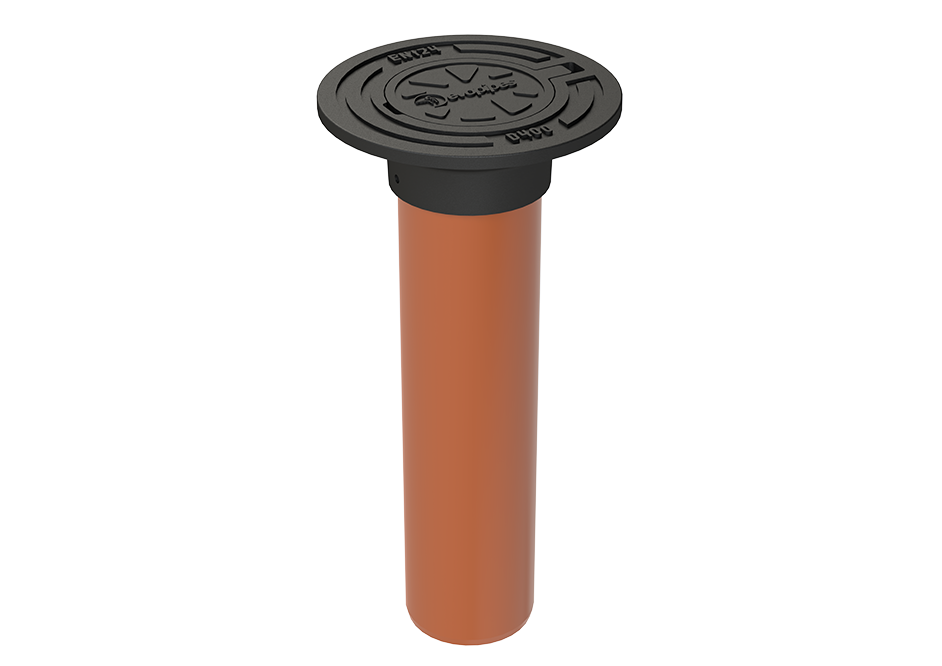

Round frame and cover with DN/OD 160 mm telescopic pipe

EN 124-2
Cover DN160, D400
Cover DN160, D400


Round cast iron frame and cover with telescopic pipe, DN 160 [mm].

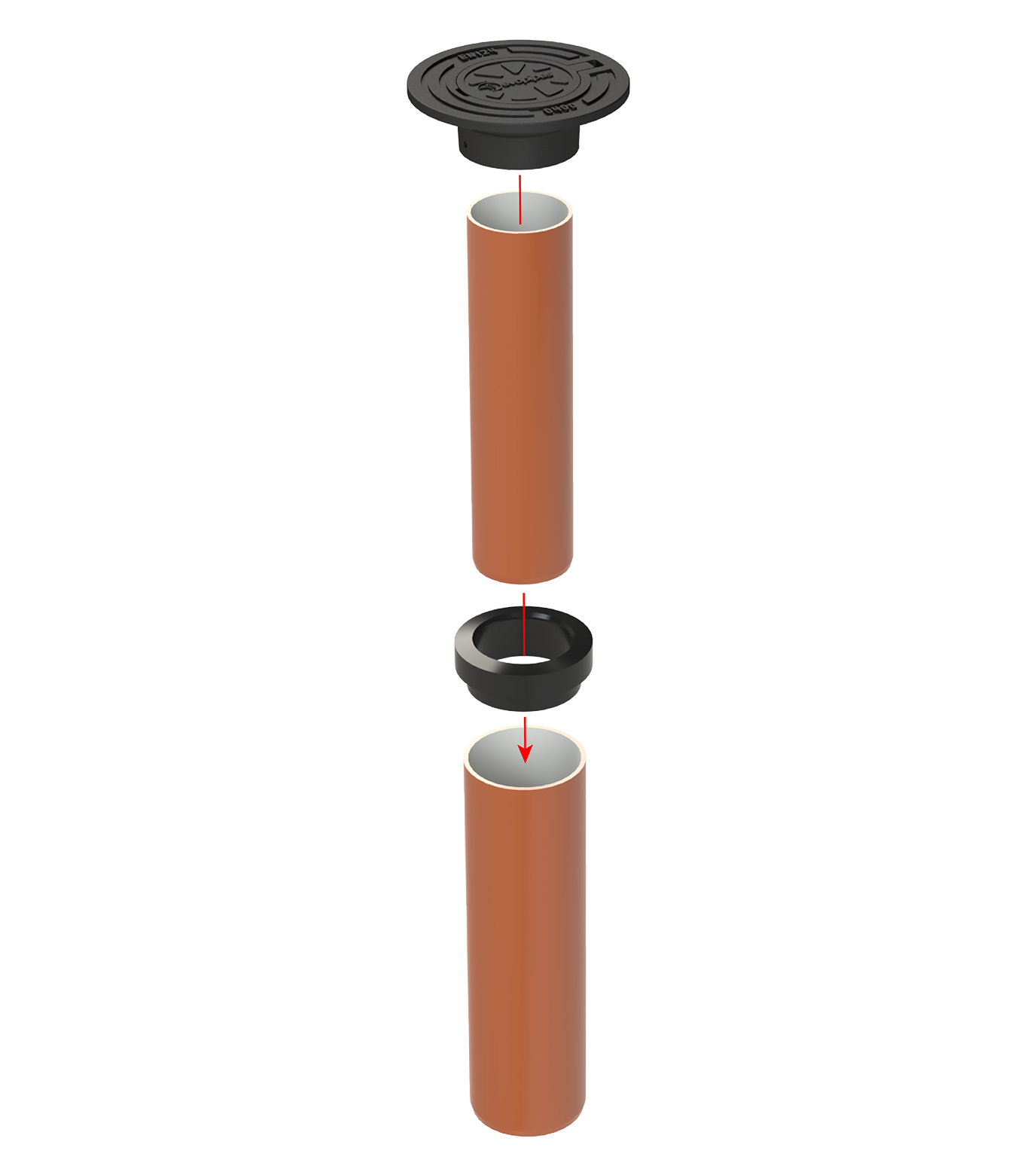

  • Components
    Cover DN160, D400
  • Drawings

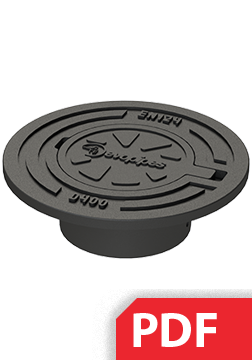

    Standard Drawing Cover DN 160 D400 PDF

    Cover DN 160 D400

    Download
    Standard Drawing Cover DN 160 D400 PDF

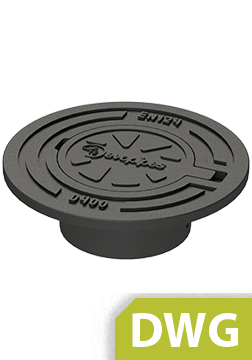

    Standard Drawing Cover DN 160 D400 DWG

    DWG file format

    Download
    Standard Drawing Cover DN 160 D400 DWG
  • Technical information
    • Load class: D400
    • Height 0.6 m
    • Weight: 10kg (frame 7kg + cover 3kg)

Cover DN160, D400

Round frame and cover with DN/OD 160 mm telescopic pipe

EN 124-2
Downloads

Standard Drawing Cover DN 160 D400 PDF

Cover DN 160 D400

Download
Standard Drawing Cover DN 160 D400 PDF

Standard Drawing Cover DN 160 D400 DWG

DWG file format

Download
Standard Drawing Cover DN 160 D400 DWG

Order information

  Product Code
  Cover

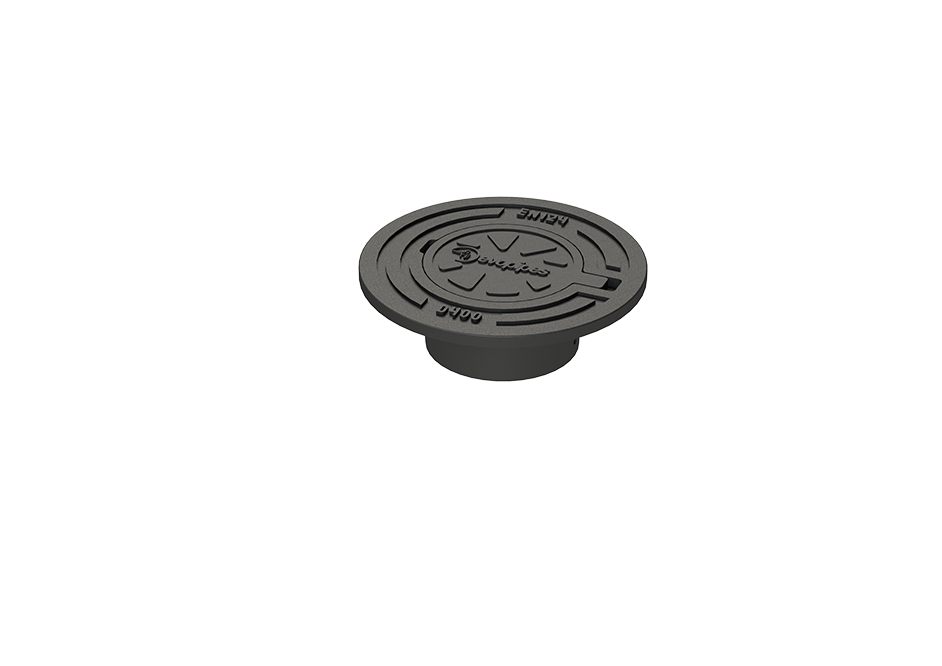

Round cast iron frame and cover, DN 160 [mm], D400. 820215160SL7300024
  Telescope set
Round cast iron frame and cover with telescopic pipe, DN 160 [mm], height 0.6 [m], D400. 827062160427300024

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
