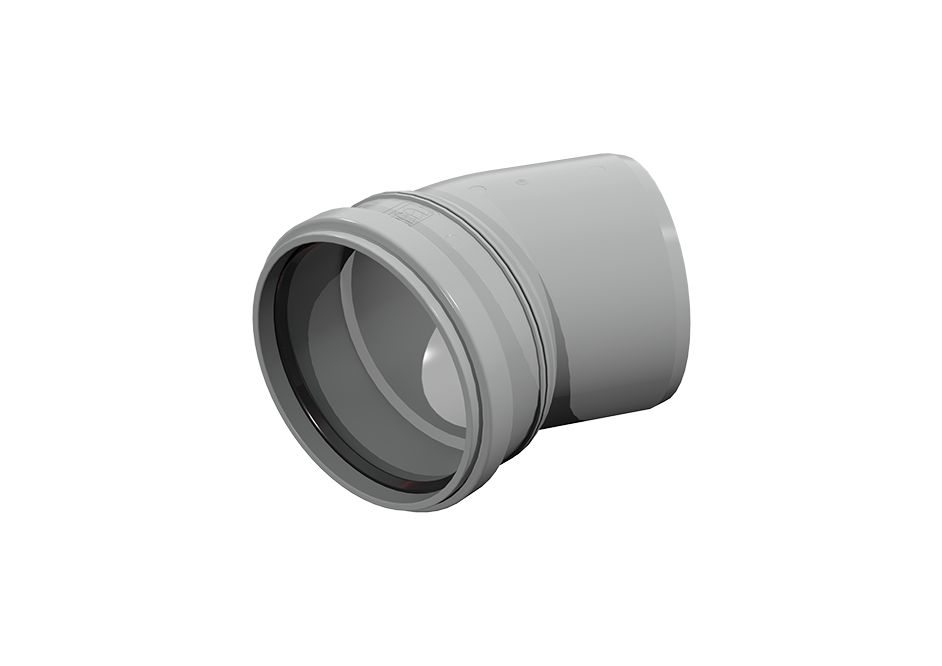

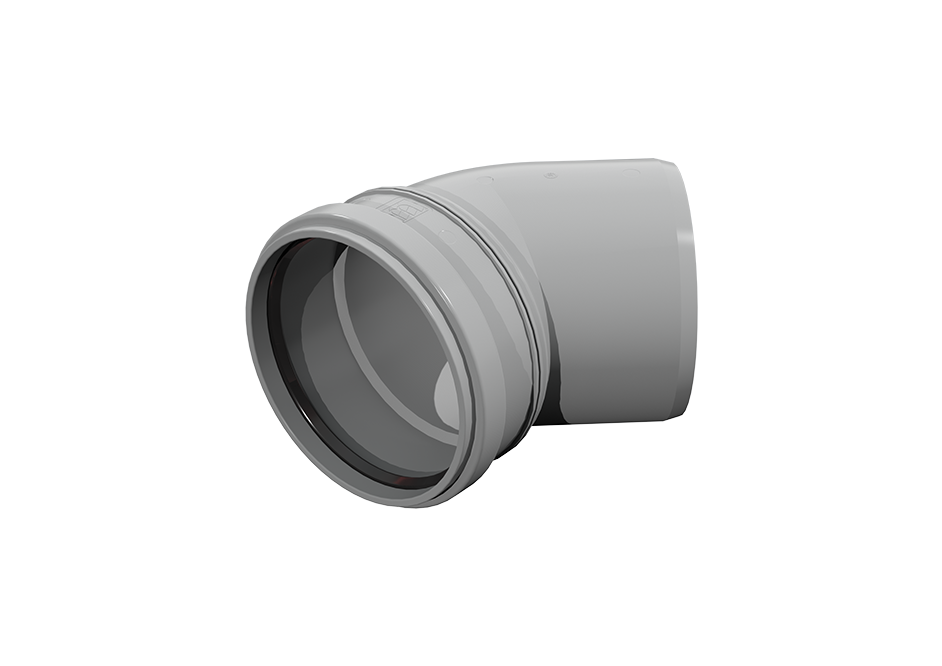

Elbow from polypropylene (PP) with an integrated sealing ring that grants a hermetic seal (pressure rating ≥ 0,5 bar). It is possible to produce in any color tone, according to customer wishes.
| DN/OD [mm] | Package [pcs.] | Code |
|---|---|---|
| Elbow 15° | ||
| 110 | 1 | 8250101100003B0200 |
| 160 | 12 | 8250101600003B021C |
| 200 | 1 | 8250102000003B0200 |
| 250 | 1 | 8250102500003B0200 |
| 315 | 1 | 8250103150003B0200 |
| 400 | 1 | 8250104000003B0200 |
| Elbow 30° | ||
| 110 | 1 | 8250101100005B0200 |
| 160 | 12 | 8250101600005B021C |
| 200 | 6 | 8250102000005B021C |
| 250 | 1 | 8250102500005B0200 |
| 315 | 1 | 8250103150005B0200 |
| 400 | 1 | 8250104000005B0200 |
| DN/OD [mm] | Package [pcs.] | Code |
| Elbow 45° | ||
| 110 | 12 | 8250101100006B021C |
| 160 | 12 | 8250101600006B021C |
| 200 | 4 | 8250102000006B021C |
| 250 | 1 | 8250102500006B0200 |
| 315 | 1 | 8250103150006B0200 |
| 400 | 1 | 8250104000006B0200 |
| Elbow 90° | ||
| 110 | 8 | 8250101100008B021C |
| 160 | 8 | 8250101600008B021C |
| 200 | 4 | 8250102000008B021C |
| 250 | 1 | 8250102500008B0200 |
| 315 | 1 | 8250103150008B0200 |
Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
