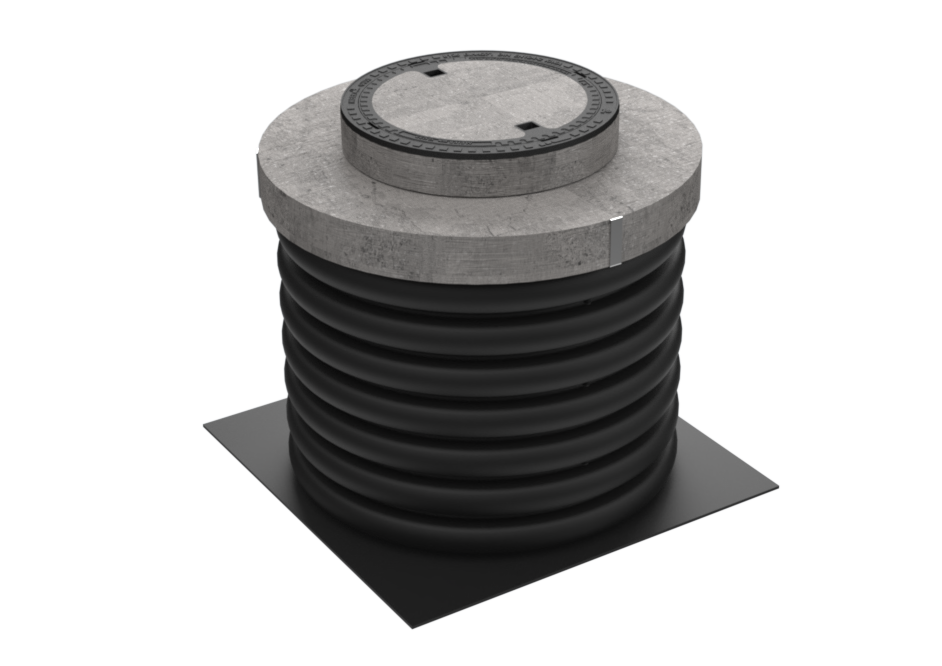

TC 1134.1000.860
Cable connection chamber
Cable connection chamber TC 1134.1000 is made of polypropylene (PP).
The welded square base (1225 × 1225 mm) secures the chamber in soil.
-
Advantages
- Large inside diameter (DN/ID 1000 mm) gives a large workspace
- Easy transportation and handling — no need for a crane on the construction site
- Fast creation of connection holes from inside (crown-drilling)
- High resistance to corrosion and chemical substances
- Long service life (>50 years)
- Shaft ring stiffness SN4.
-
Chamber components
-
Recommended application
- Telecommunication networks
- Optical cable lines
- Electro cable lines
- Railroad signalisation
- Street lighting
According to EN124, the chamber is meant for use with:
- B125 (125 kN = 12.5 t) cast iron manhole cover. Suitable for use in the following areas:
- sidewalks
- pedestrian zones and similar areas
- parking areas or parking area pavements.
The chamber cannot be used under streets/roads/carriageways.
-
Technical information
- Outer diameter — 1134 [mm]
- Inner diameter — 992,5 [mm]
- Height — 860 [mm] (any height possible on demand)
- Welded square base (thickness: 8 mm) — 1225 × 1225 [mm]
-
