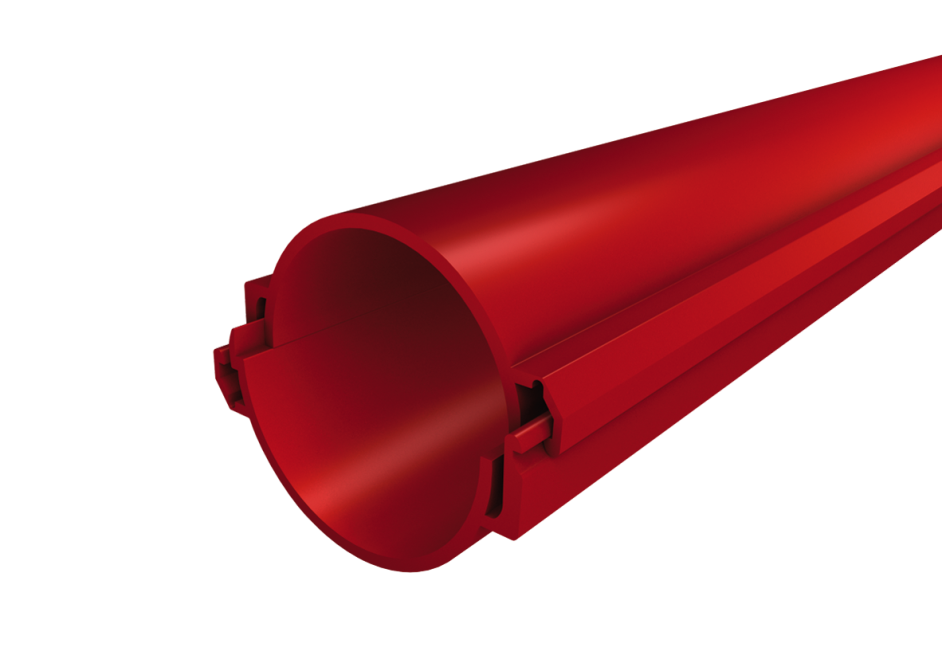

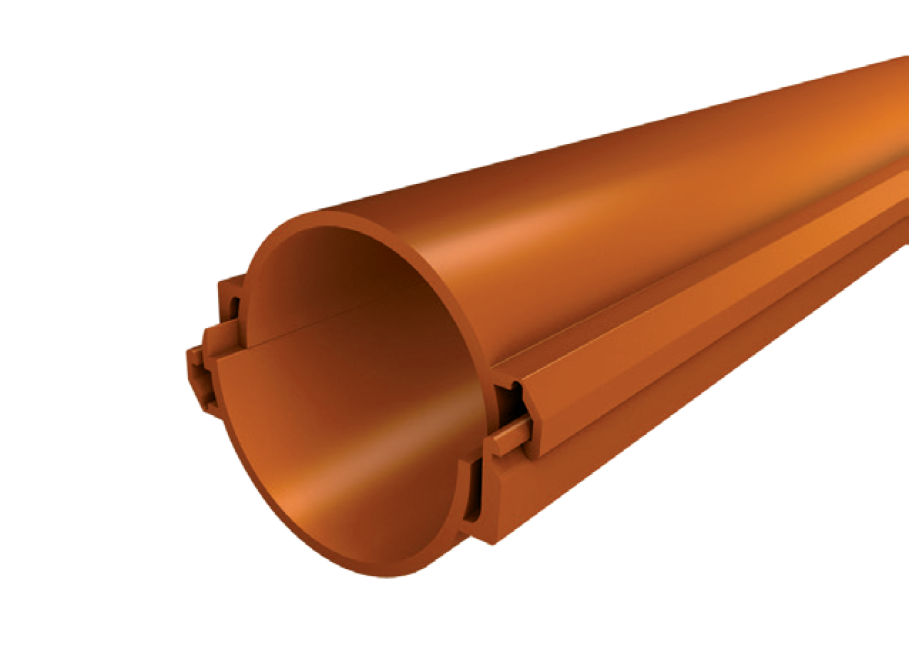

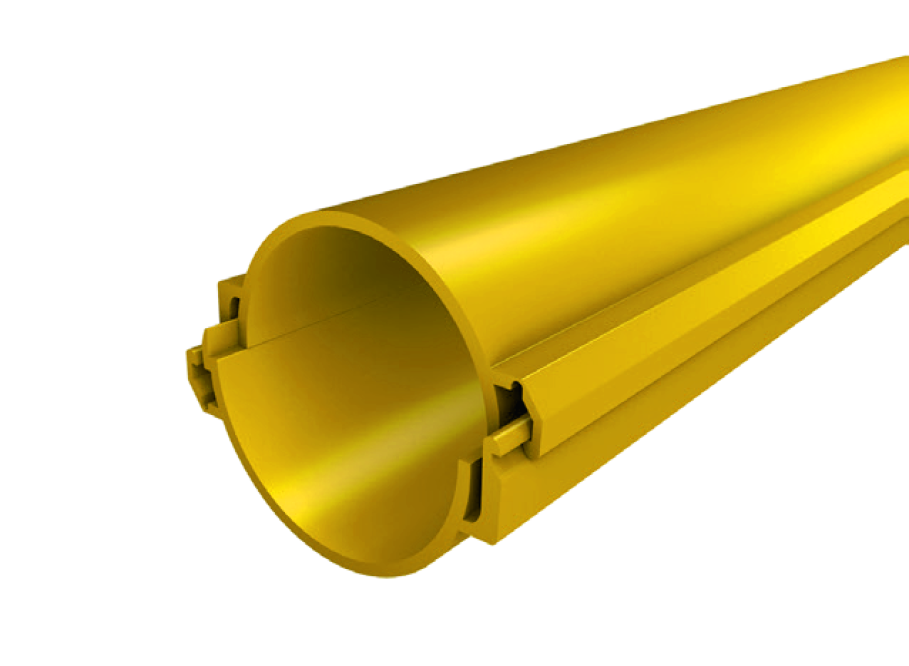

EVOCAB SPLIT CLASSIC
Split pipes
Normal Impact resistance, Compression strength: 450, DN/OD 110, 160
EVOCAB SPLIT CLASSIC smooth-wall split cable protection pipes are designed for power cable repairs, electrical wire, telecommunication, television, and signal cable line ruptures and for mechanical protection and insulation of cables in sections where cable protection of another type cannot be used.
Split pipe consists of two sections which are joined by shifting one section against the other. This considerably simplifies the process of installation.
EVOCAB SPLIT CLASSIC is supplied in straight 3 m bars, packed in wooden frames and secured with a band.
-
Advantages
- Considerably shorter cable line rupture reparation time and optimised costs
- Easy and safe coupling of split cable conduits
- The materials used to ensure that the conduits are environment-friendly and feature a long-term resistance against the effects of the aggressive substances present in the soil
-
Technical information
- Material- PE/PP
- Compression strength class- 450
- Impact resistance- N (normal)
- Temperature range from -25ºC to +90ºC
- Resistant against most acids and alkali
Pipe dimensions Dimensions DN110 DN160 Outer Ø [mm] 110 160 Inner Ø [mm] 100 141 Wall thickness [mm] 5 9.5 Length [m] 3 3 The EVOCAB cable protection pipes are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-24:2011
-
Certificates
