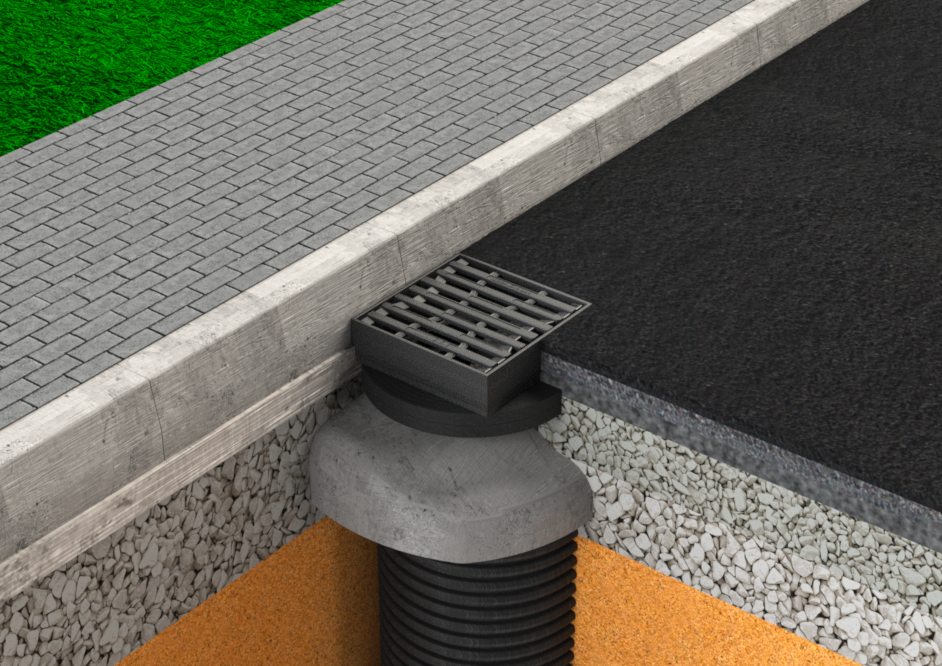

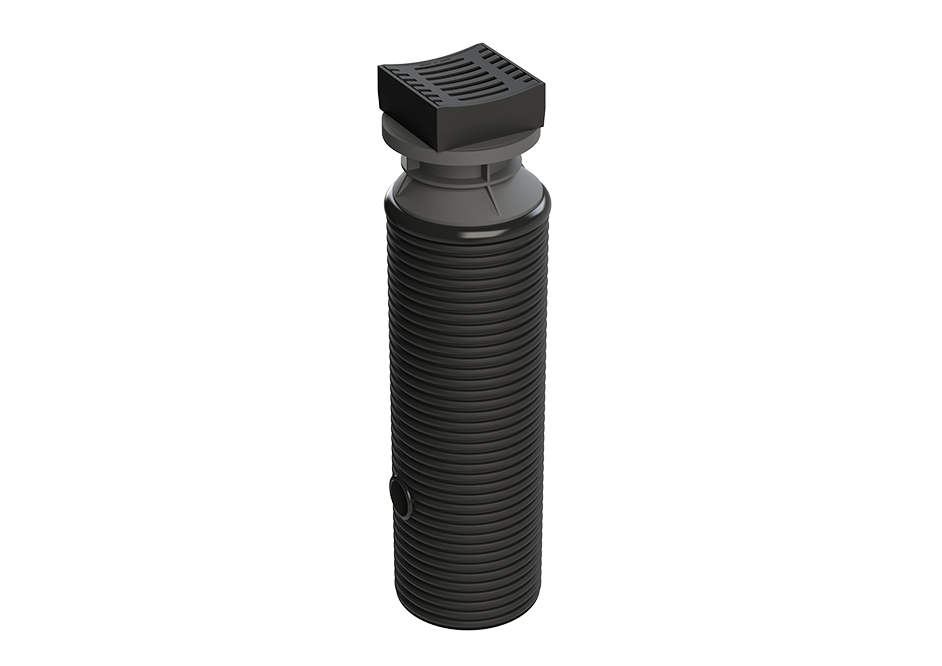

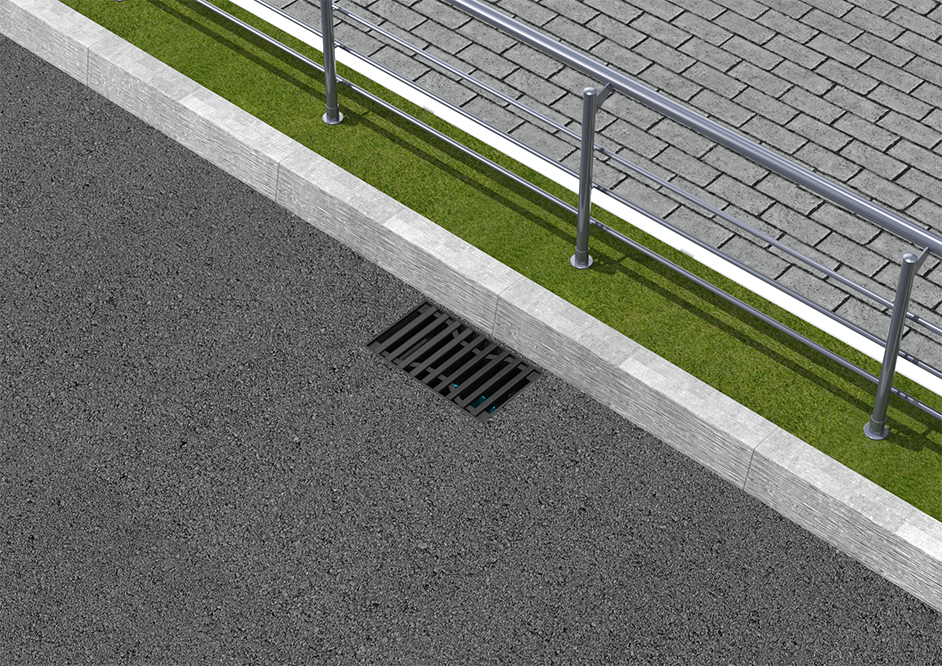

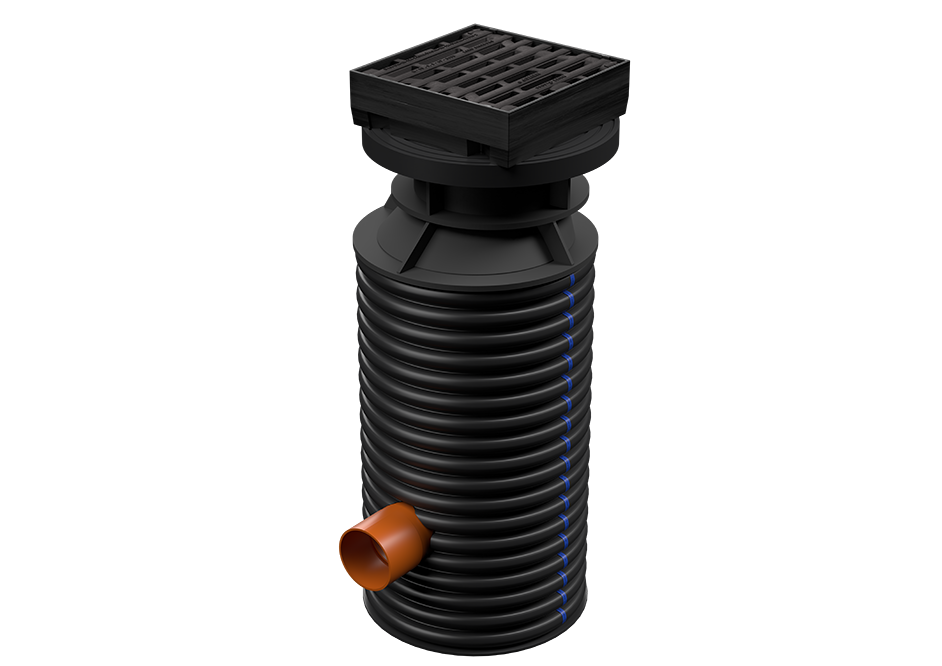

Road gullies CRS 600 with horizontal grate
With stationary type grate for construction along road curb
Connections DN/OD 110, 160, 200, 250, 315 mm
Gullies DN/ID 600 [mm] with or without sediment trap and D400 class cast iron cover for construction alongside road curb. Especially suitable for heavy traffic roads providing increased resistance to dynamic loads.
- Connection DN/OD 110, 160, 200, 250, 315 [mm]
- Installation class - D400, RAL-GZ 692
- Sediment trap volume*: 166 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
-
Advantages
Long service life (>50 years)
Highly resistant to dynamic traffic loads
Water-tightness > 0.5 bar, watertight materials
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Road construction (with heavy transport loads)
-
Chamber components
Type With sediment trap Without sediment trap Connections OUT 0° OUT 0° DN/OD [mm] 110 / 160 / 200 /250 / 315* 160 / 200 / 250 / 315* *connections to gullies from DN/OD 110 to 200 [mm] are formed by use of coupling seal
-
Technical information
Installation depth:
- Minimum instalation depth: 1.0 [m]
- Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard
Chamber cover:
- The parameters of the grate depend on the selected product, please refer to the chosen product page.
- Polyethylene (PE) debris bucket, h=260 [mm], type DIN 4052 - B1
- Steel debris bucket, 300x500mm, D1, DIN 4052.
- Eccentric adapter, DN500/385/250 [mm], type DIN 4052-10a
- Polymer support ring, DN 385 [mm], conforms to DIN 4052-10a requirements
- Rubber cuff, DN 600/500 [mm], conforms to LVS EN 681-1 requirements
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
- Sealing ring DN 600 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards
- Base of chamber CSL DN 600 [mm] PP correspond to the requirements of EN 13598-2 and EN 476
- Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
-
Drawings

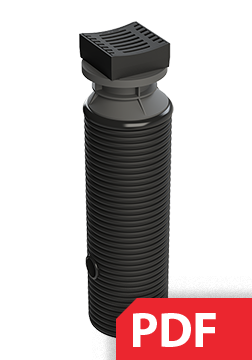

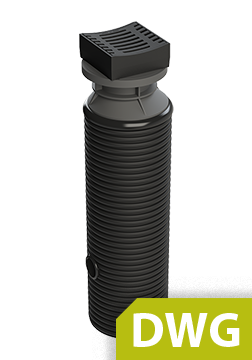

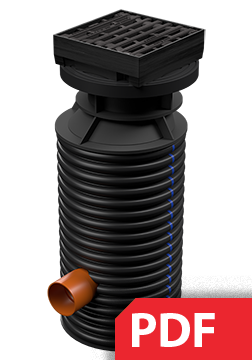

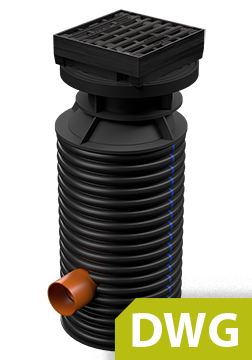

Standard drawing DN600-500x500.B.Road.gully PDF
Gully for construction along road curb (with gutter)
Download
