Manhole CSL 800.630
With corrugated pipe shaft
Connections DN/OD 160, 200, 250, 315, 400; DN/ID 500 mm

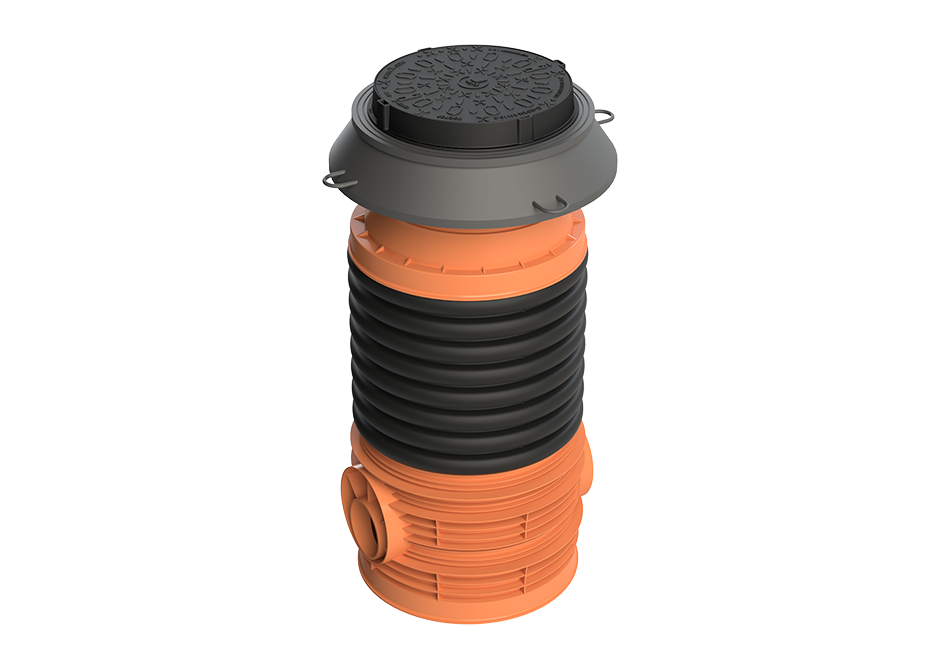

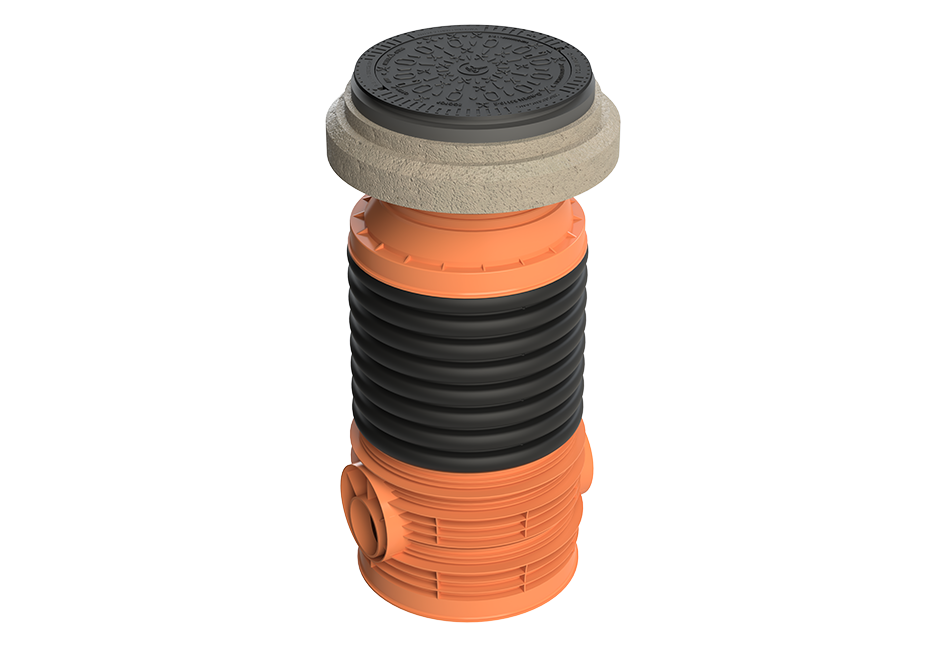

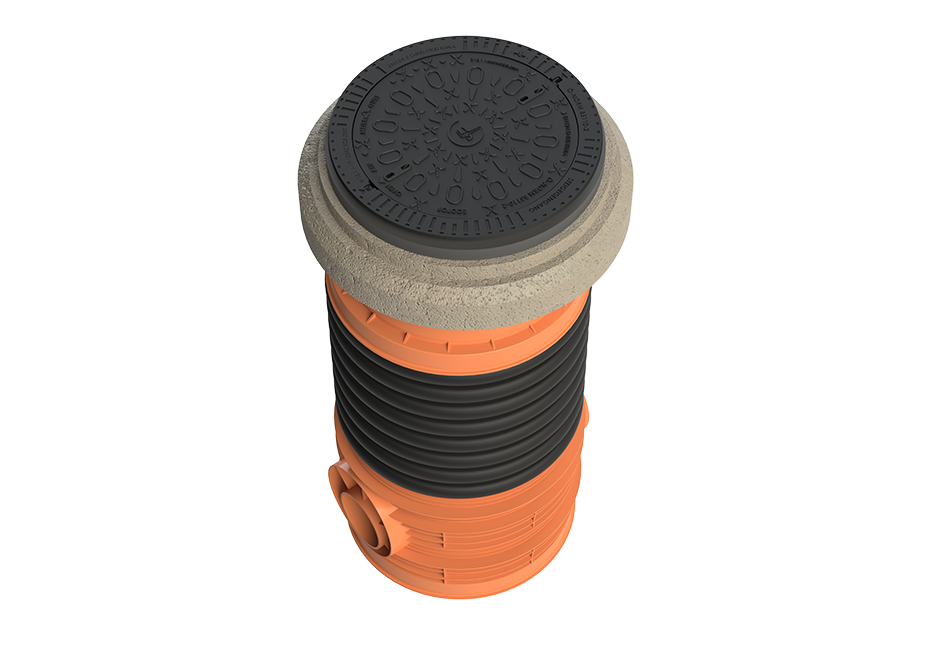

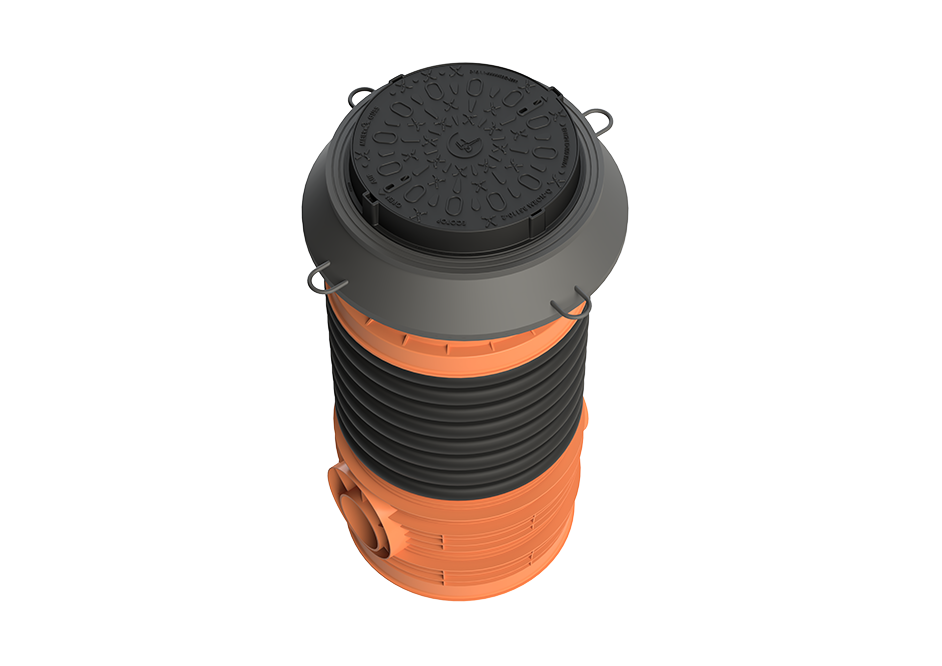

Manhole DN/ID 800 [mm] with stationary or self leveling type D400 class cast iron cover.
- Base configuration:
- 1B 180°
- 3BL 135°, 180°, 225°
- Connection DN/OD 110 .. 400 [mm] and DN/ID 500 [mm]
- Access shaft DN 630 [mm]
- Cover: D400 class, RAL GZ-692
-
Advantages
Long service life (>50 years)
Reduced manufacturing costs
Flexibile for movements in soil (no cracking of the manhole)
100% watertight
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
Road construction (with and without transport load)
-
Manhole components
Type 1B 3BL Connections OUT 0° / IN 180° OUT 0°
IN 135° / 180° / 225°DN/OD [mm] 160 / 200 / 250 / 315 / 400 160 / 200 / 250 / 315 / 400 DN/ID [mm] 500 By using 3BL type base and end cap(s) it is possible to make 1BB, 2BL, 2BT type base configuration
1 to be used in cases of paving stone, gravel or green space.
2 to be used in asphalt concrete pavement.
-
Technical information
Installation depth
Minimum instalation depth: 1.4 [m]
Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 4.0 [m], according to the requirements of EN 13598-2 standard
Manhole base
Polypropylene (PP) base of manhole DN 800 [mm] correspond to the requirements of EN 13598-1, EN 13598-2 and EN 476.
Manhole shaft
Height-adjustment corrugated PP double-wall shaft DN/ID 800 [mm] conform to the requirements of EN 13476-3 and EN 14802 standards.
Eccentric cone
Eccentric cone with access hole of 630 [mm]. Conform to the requirements of EN 13598-1, EN 13598-2 and EN 476. Height- 550 [mm], but if necessary cone can be shortened by 250 [mm].
Manhole covers
Self-leveling type cast iron frame and cover, DN 700 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard.
Stationary type cast iron frame and cover, DN 600/746 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 and RAL GZ-692 standard.
Polymer ring adapter for self-leveling cover DN 710/870 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer height adjustment ring DN 700/875 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer support ring DN 680/1050 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Reinforced concrete height adjustmet ring, DN 665/1000 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard.
Reinforced concrete support ring, DN 665/1060 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard.
-

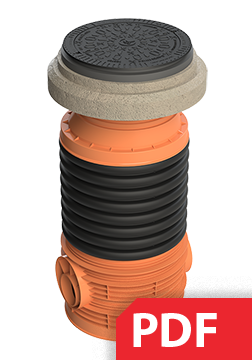

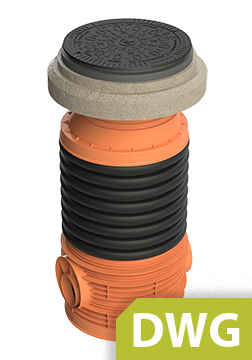

Drawings
