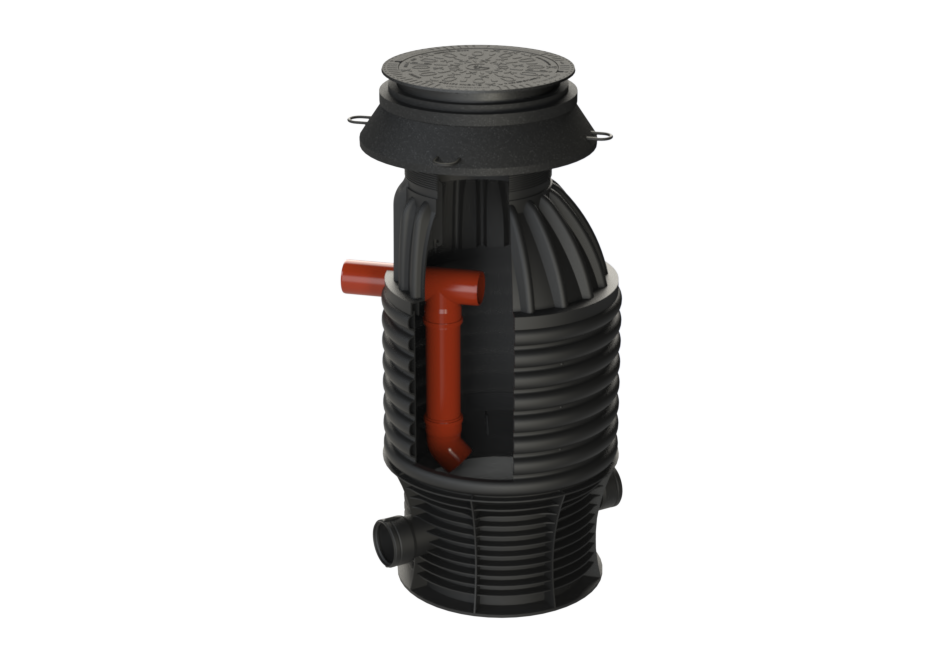

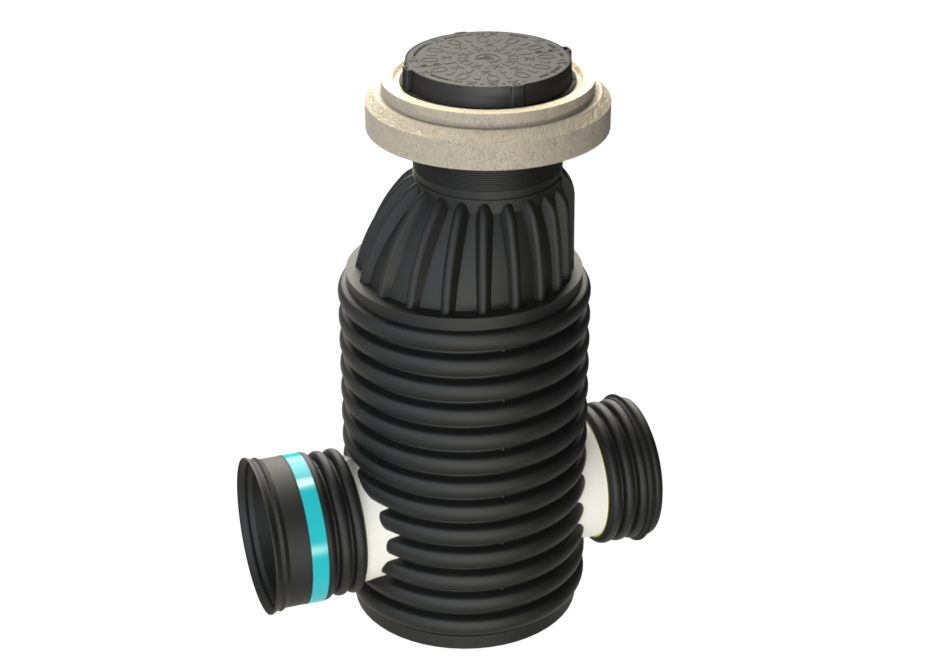

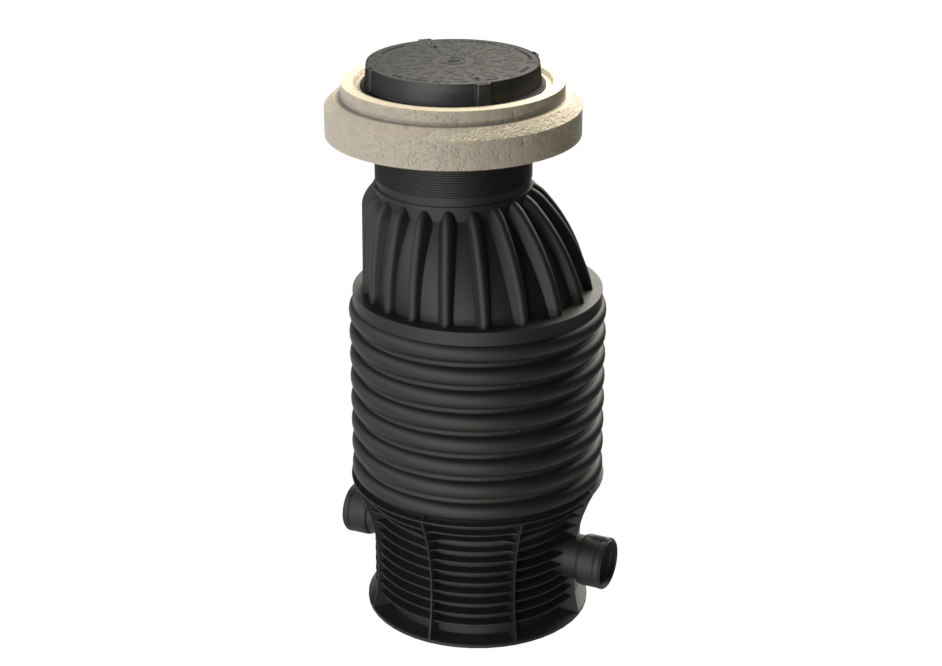

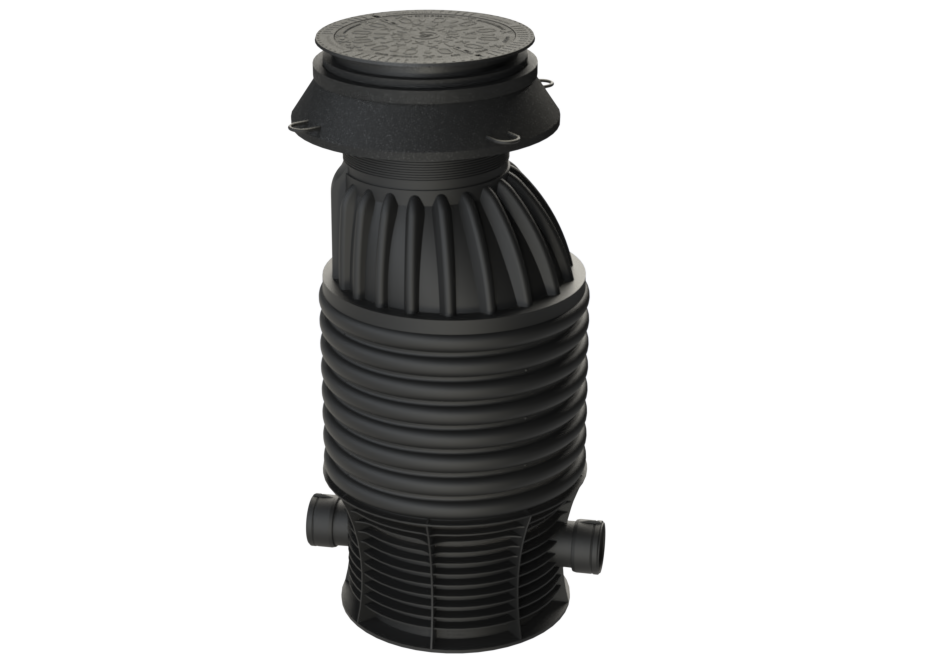

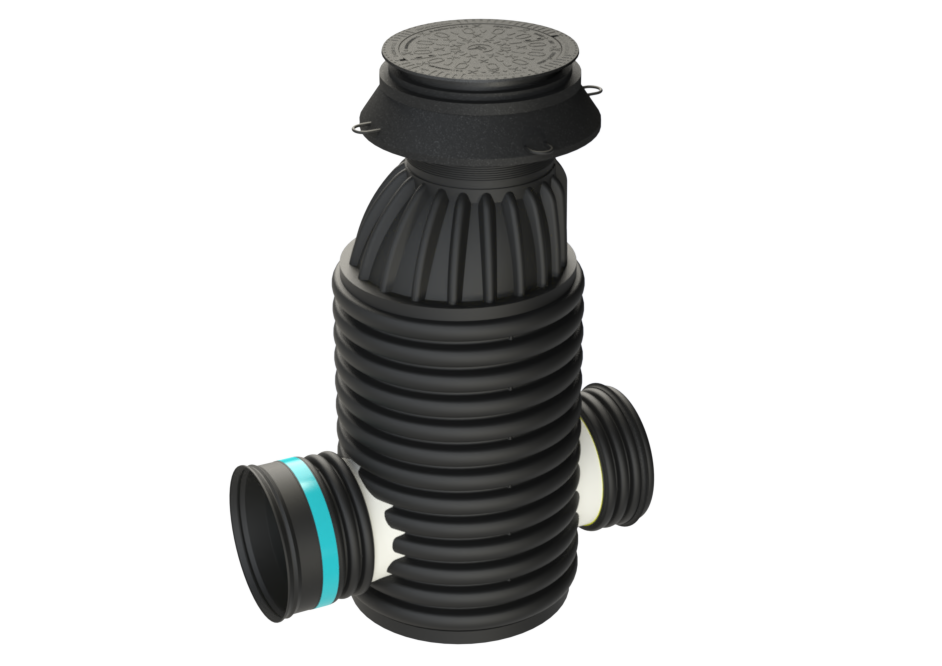

Manhole CSL 1000.625
With corrugated pipe shaft
Connections DN/OD 160, 200, 250, 315, 400 mm
Manhole DN 1000 [mm] with stationary or self leveling type D400 class cast iron cover and integrated steps. Welded solid according to ordered height and specification.
- Base configuration:
- 1B 180°
- 3B 90°, 180°, 270°
- 3BL 120°, 180°, 240°
- 2BT 90°, 270°
- 2BL 180°, 270° arba 90°, 180°
- 1BB 90°.. 270°
- Connection DN/OD 110 .. 400 [mm]
- Access shaft DN 625 [mm]
- Cover: D400 class, RAL GZ-692
-
Advantages
Very long service life (>100 years)
Reduced manufacturing costs
Flexibile for movements in soil (no cracking of the manhole)
100% watertight
Flexibile connection to manhole +/- 3.75°
-
Recommended application
Yards of multi-storey dwellings
Parking places and vehicle storage areas
Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
Road construction (with and without transport load)
-
Manhole components
1 to be used in cases of paving stone, gravel or green space.
2 to be used in asphalt concrete pavement.
-
Technical information
Installation depth
Minimum instalation depth: 1.25 m
Maximum installation depth is up to 6.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 5.0 m, according to the requirements of EN 13598-2 standard
The spout of the manhole
The spout of the manhole base is molten in white colour to facilitate CCTV control. The spout of the manhole is made with 100% filling and 0.5% fall. Racks along the spout are made of whit anti-slip profiled surface with fall in direction of the spout.
Manhole shaft
Height-adjustment corrugated PP double-wall shaft DN/ID 1000 mm conform to the requirements of EN 13476-3 and EN 14802 standards
Eccentric cone
Manhole neck access hole DN 625 mm allows to enter the manhole during operation phase in case such need arises for the service personnel. Manhole cone can be shortened by 25 cm if necessary.
Manhole covers
Self-leveling type cast iron frame and cover, DN 700 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard.
Stationary type cast iron frame and cover, DN 600/746 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 and RAL GZ-692 standard.
Polymer ring adapter for self-leveling cover DN 710/870 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer height adjustment ring DN 700/875 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
Polymer support ring DN 680/1050 [mm], durability tests are carried out corresponding to the requirements of EN 124 standard.
-
