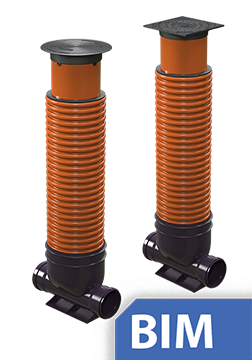

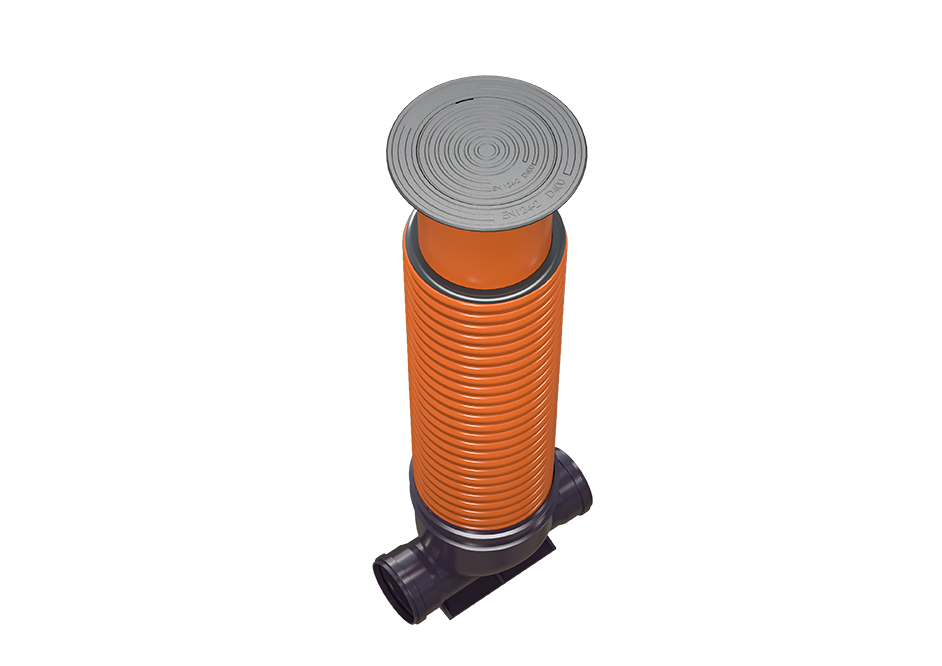

Inspection chamber DN 400.315

With corrugated pipe shaft and telescopic pipe

Connections DN/OD 110, 160, 200, 250, 315 mm

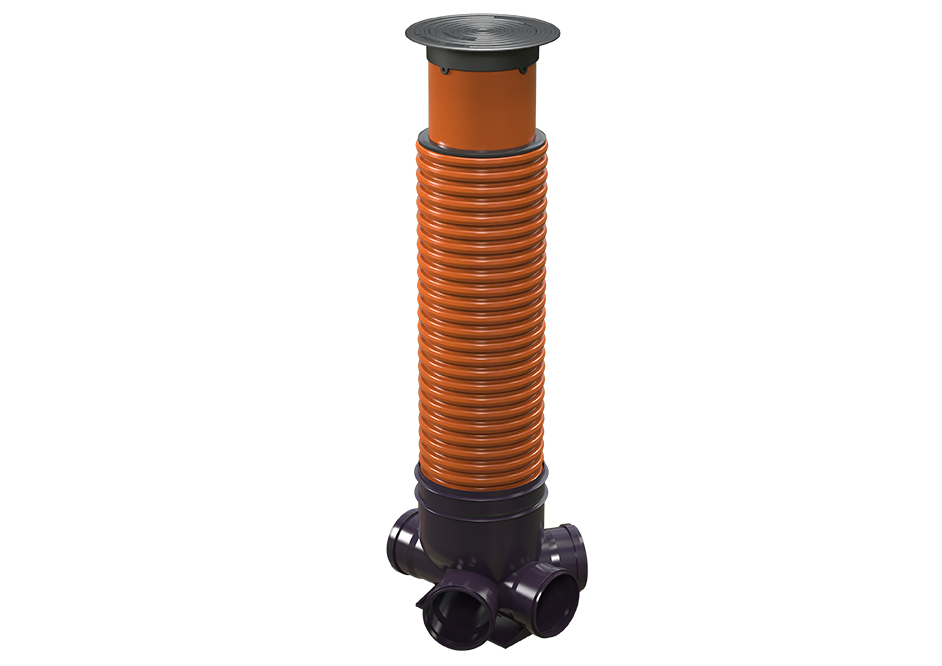

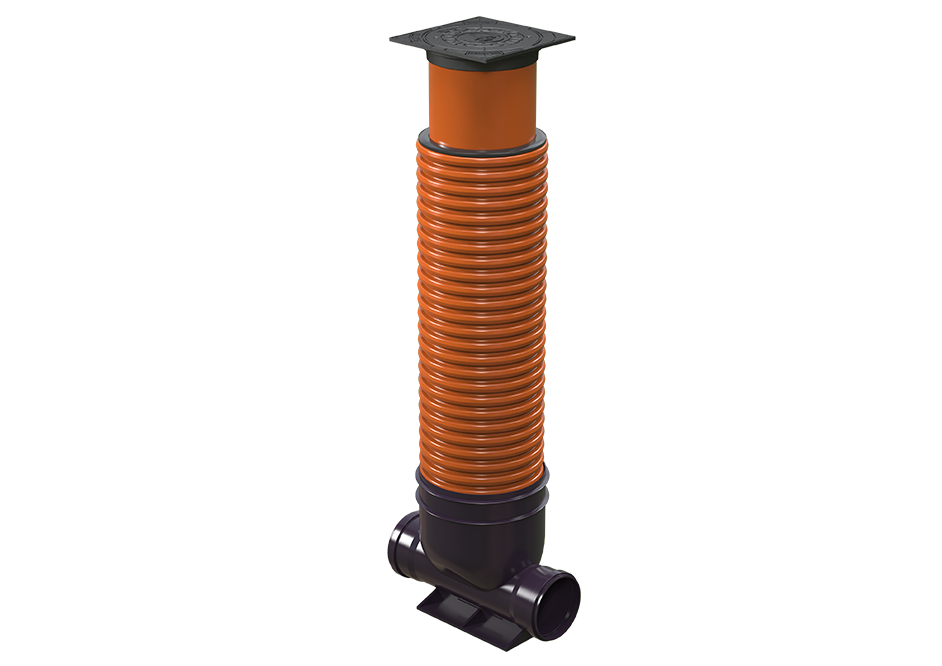

Inspection chamber DN/OD 400 [mm] with telescopic pipe and D400 class cast iron cover.

Base configuration:

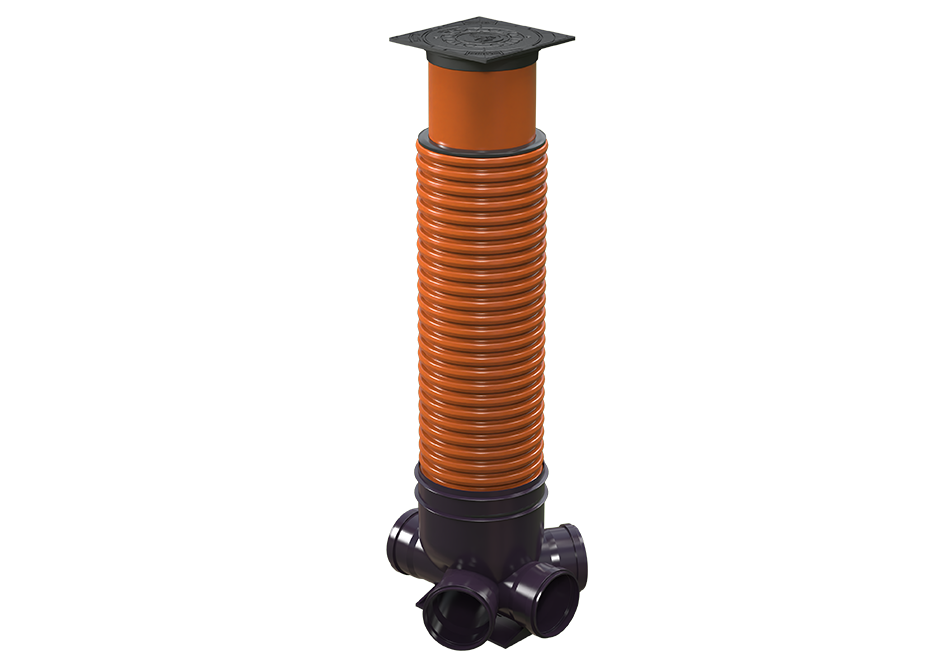

- 3BL 135°, 180°, 225°

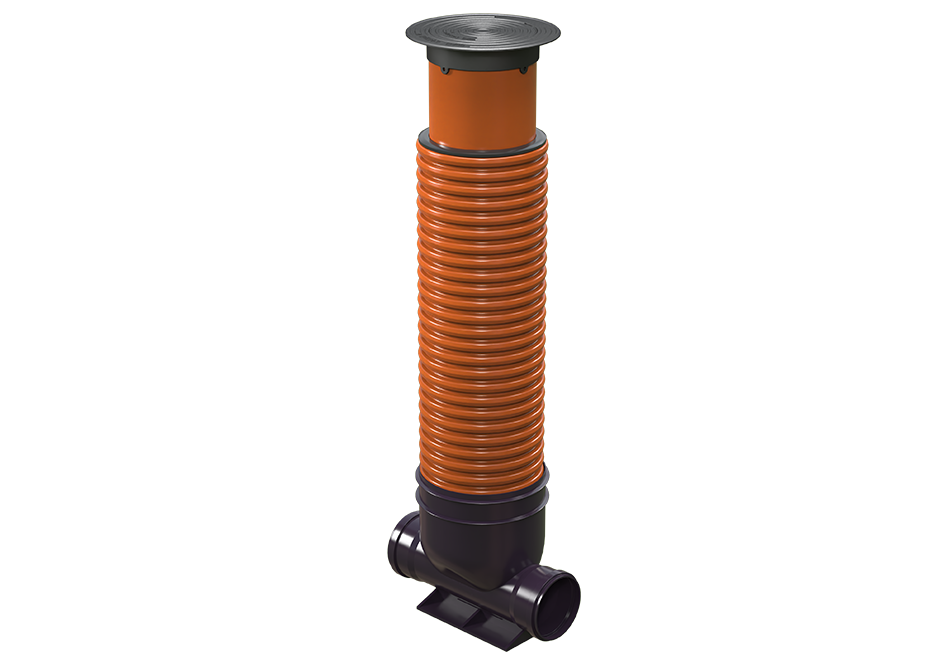

- 1B 180°
Connection DN/OD 110 .. 400 [mm]

Telescopic pipe: DN 315 [mm]

Advantages

	Long service life (>50 years)
	Flexibile for movements in soil (no cracking of the manhole)
	Water-tightness > 0.5 bar, watertight materials
	Resistant to aggressive environment, no corrosion
	The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks

Recommended application

Yards of multi-storey dwellings

Stadiums and sport complexes

Pavements, pedestrian and bicycle paths

Chamber components

Connections	OUT 0° / IN 180°	OUT 0° IN 135° / 180° / 225°
Type	1B	3BL
DN/OD [mm]	160 / 200 / 250 / 315 / 400	110 / 160 / 200 / 250 / 315
By using 3BL type base and end cap(s) it is possible to make 1BB, 2BL, 2BT type base configuration

Technical information
Installation depth:
- Minimum instalation depth: 1.0 [m]
- Maximum installation depth is up to 5.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 3.0 [m], according to the requirements of EN 13598-2 standard.
Chamber cover:
- Cast iron frame and cover, DN 315 [mm], installation class D400 (40t) corresponds to the requirements of EN 124 standard
Telescopic section:
- Telescopic PP smooth-wall pipe DN/OD 315 [mm], height 0.6 [m], corresponds to the requirements of EN 13476-2 standard
- Rubber cuff DN 400/315 and rubber sealing ring DN 400 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/OD 400 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
- Base of chamber CSB & CSS DN 400 [mm] PP correspond to the requirements of EN 13598-2 standard
Drawings

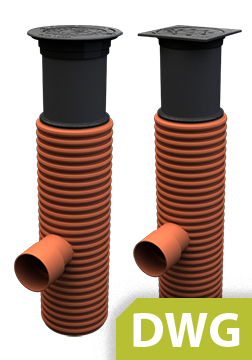

Standard Drawing DN400.315 with sediment trap DWG

DWG file format
Download

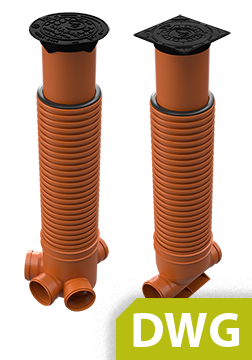

Standard Drawing DN400.315.1B.3BL DWG

DWG file format
Download

Standard Drawing DN400.315.B1 PDF

Chamber DN400 with telescopic pipe DN315 and D400 class cover and straight flow base
Download

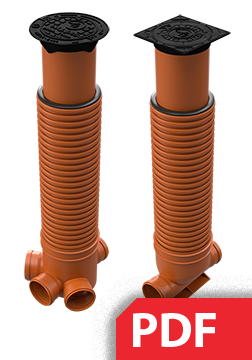

Standard Drawing DN400.315.3BL PDF

Chamber DN400 with telescopic pipe DN315 and D400 class cover and branch base
Download

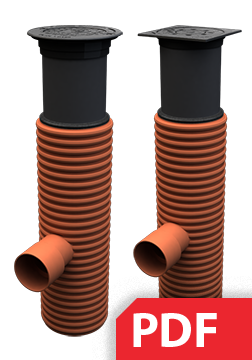

Standard Drawing DN400.315 with sediment trap PDF

Chamber DN400 with telescopic pipe DN315 and D400 class cover
Download

For other file versions please contact us.

Downloads

EVOSAN, EVOSAN RF and EVORAIN Catalogue ENG

EVOSAN rain and waste water system catalogue

Download

Order information

	Product	Code
	Telescope set
	Round cast iron frame and cover with telescopic pipe, DN 315 [mm], height 0.6 [m]	82706231542730004A
	Square cast iron frame and round cover with telescopic pipe, 385x385 mm (DN 315 [mm]), height 0.6 [m]	82706331542730001A
	Chamber covers
	Round cast iron frame and cover, DN 315 [mm]	820215315SL7300024
	Square cast iron frame and round cover, 385x385 [mm]	820216315SL730001A
	Telescopic pipe selection
	Smooth-wall telescopic pipe DN/OD 315 [mm], height 0.6 [m]	827045315420000000
	Telescopic connection cuff
	Rubber cuff DN 400/315	813208405000000048
	Shaft selection
	PP corrugated height-adjustment shaft, DN/OD 400 [mm]	3020040006010E08005
	Sealing ring selection
Open	Sealing ring for corrugated pipe DN 400 [mm]	809025400000000000
	Chamber base selection
	PP base of chamber 1B DN 400 mm	81304940044190Y200
	PP base of chamber 1B DN 315 mm	81304831544190W233
	PP base of chamber 1B DN 250 mm	81304825044190W233
	PP base of chamber 1B DN 200 mm	8130482005O190W229
	PP base of chamber 1B DN 160 mm	8130481604O190W290
	PP base of chamber 3BL DN 315 mm	813051315Q1650W200
	PP base of chamber 3BL DN 250 mm	813051250Q1650W200
	PP base of chamber 3BL DN 200 mm	813051200O5650W200
	PP base of chamber 3BL DN 160 mm	813051160O2650W200
	PP base of chamber 3BL DN 110 mm	8130511102O650W200
	Accessories
Open	Socket adapter/chamber connection accessory DN 110 [mm]	8090201100000G0200
	Socket adapter/chamber connection accessory DN 160 [mm]	8090201600000G0200
	Socket adapter/chamber connection accessory DN 200 [mm]	8090202000000G0200
	Socket adapter/chamber connection accessory DN 250 [mm]	8090202500000G0200
	Socket adapter/chamber connection accessory DN 315 [mm]	8090203150000G0200
	Socket adapter/chamber connection accessory DN 400 [mm]	8090204000000G0200
Open	Coupling seal, DN 110 [mm]	8092071101G0000036
	Coupling seal, DN 160 [mm]	8092071602G0000036
	Coupling seal, DN 200 [mm]	8092072004G0000036
	Hole saw, DN 110 [mm]	on request
	Hole saw, DN 160 [mm]	809300160000000000
