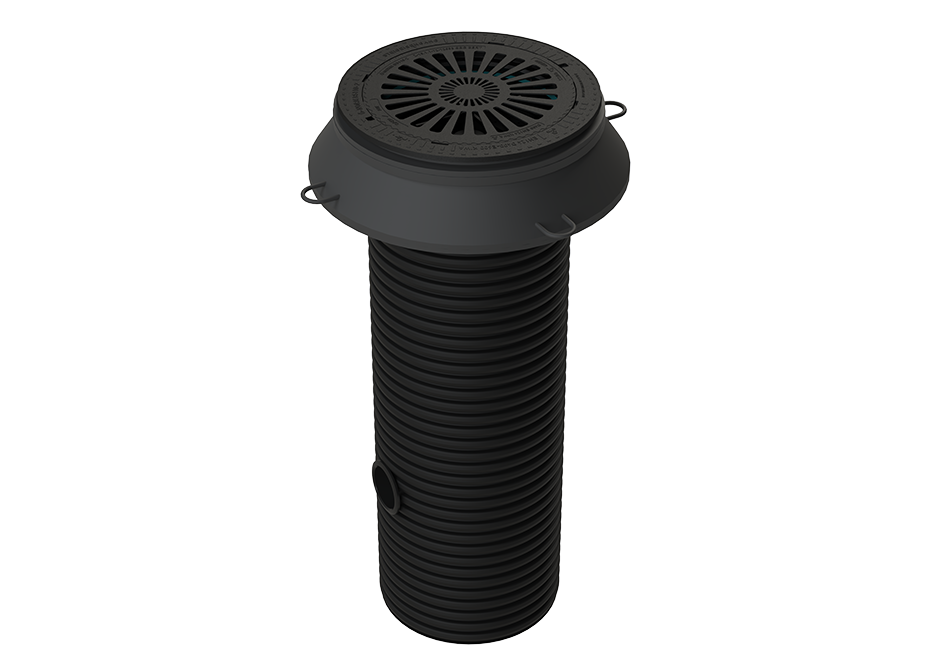

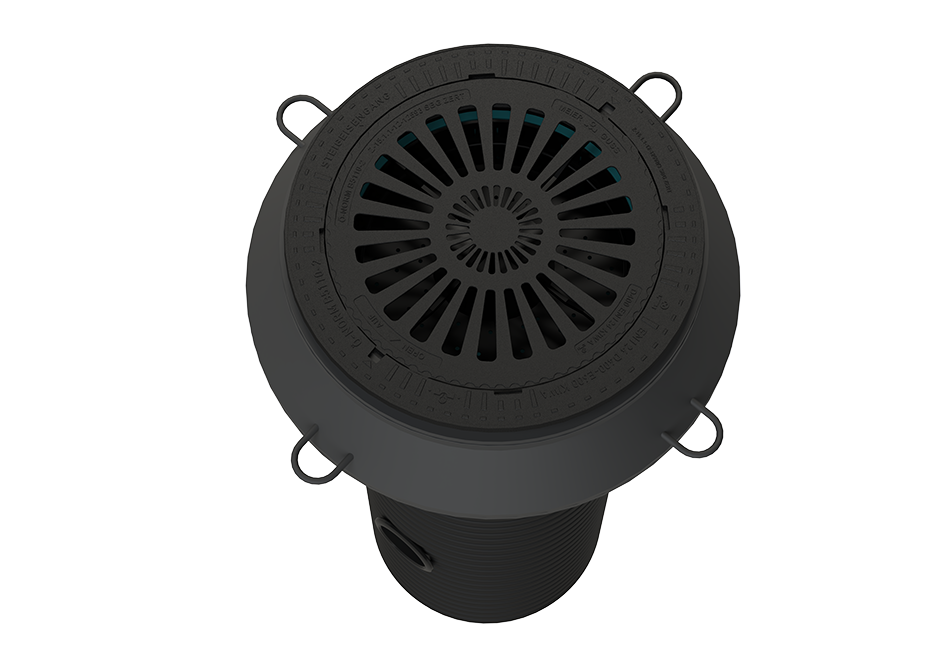

Gullies CRS 600 with self-leveling grate

With cast iron cover (grate) class D400, RAL GZ-692

Connections DN/OD 110, 160, 200, 250, 315, 400 mm

Gullies CRS 600 with self-leveling grate

Gullies DN/ID 600 [mm] with sediment trap and D400 class self leveling type cast iron cover.

Base connections at 90° .. 270°
Connection DN/OD 110 .. 400 [mm]
Cover: D400 class (40t), RAL GZ-692

Sediment trap volume*: 166 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)

Advantages

	Long service life (>50 years)
	Flexible for movements in soil (no cracking of the chamber)
	Water-tightness > 0.5 bar, watertight materials
	Resistant to aggressive environment, no corrosion
	The diameter of access hole allows convenient and quick maintenance of sewerage networks

Recommended application

	Yards of multi-storey dwellings
Parking places and vehicle storage areas
	Pavements, pedestrian and bicycle paths
Stadiums and sport complexes
	Road construction (with and without transport load)

Chamber components

Connections	OUT 0°	OUT 0°
Type	With sediment trap	Without sediment trap
DN/OD [mm]	110/ 160 / 200 / 250 / 315 / 400*	160 / 200 / 250 / 315*
*connections in gullies from DN/OD 110 to 200 [mm] may be formed by use of coupling seal, but connections in gullies above DN/OD 200 [mm] should be formed by built-in connection cup

¹ to be used in cases of paving stone, gravel or green space.

² to be used in asphalt concrete pavement.

Technical information
Installation depth:
- Minimum instalation depth: 1.0 [m]
- Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard
Chamber cover:
- Self-leveling type cast iron frame and grate, DN 700 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard
- Cast iron shell ring adapter corresponds to the requirements of EN 124-2 standard
- Galvanized steel debris bucket, DN653/Ø590 [mm], h=155/85 [mm], analogue DIN 1221

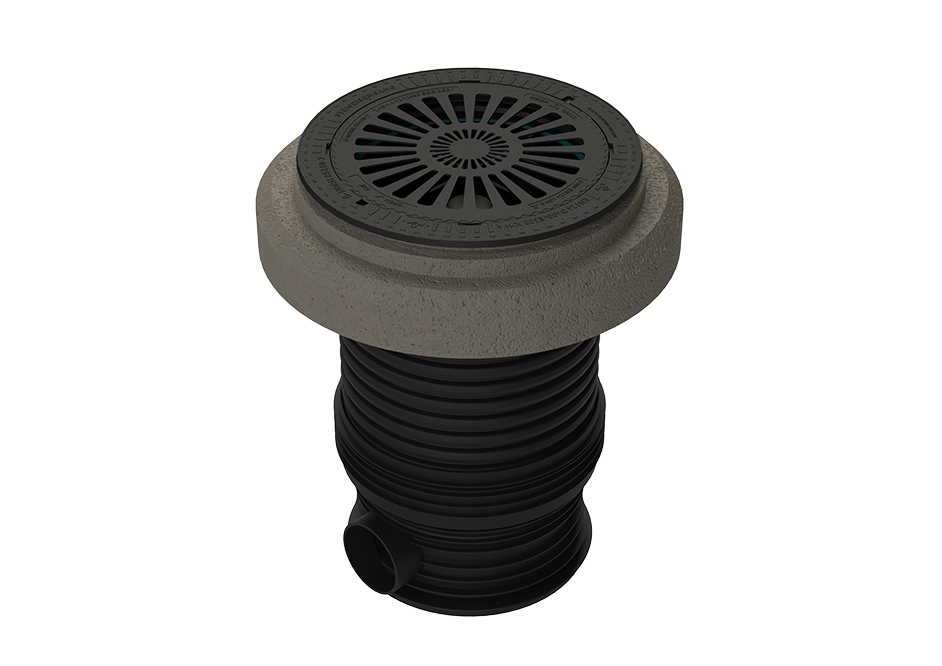

- Reinforced concrete height adjustmet ring, DN 700/920 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
- Reinforced concrete support ring, DN 700/1060 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
Chamber shaft and base:
- Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
- Sealing ring DN 600 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards
- Base of chamber CSL DN 600 [mm] PP correspond to the requirements of EN 13598-2 and EN 476
- Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
Drawings

Standard Drawing CRS 600.G.SL DWG

DWG file format
Download

Standard Drawing CRS 600.G.SL PDF

DN/ID 600 mm gully with self-leveling D400 class grate.
Download

Downloads

Standard Drawing CRS 600.G.SL DWG

DWG file format

Download

Standard Drawing CRS 600.G.SL PDF

DN/ID 600 mm gully with self-leveling D400 class grate.

Download

Order information

	Product	Code
	Chamber covers
	Self-leveling round cast iron frame and grate DN 700 [mm], D400	820211700SL7300038
	Debris bucket selection
	Debris bucket, galvanized steel, DN653/Ø590, h=155/85 [mm]	on request
	Shell ring adapter
	Polymer shell ring adapter	822250836F80000000
	Polymer components
	Polymer height adjustment ring, DN 700/875 [mm], h=15 [mm]	822072834340000000
	Polymer height adjustment ring, DN 700/875 [mm], h=30 [mm]	822072834370000000
	Polymer height adjustment ring, DN 700/875 [mm], h=50 [mm]	822072834N30000000
	Polymer support ring, DN 680/1050 [mm], h=190 [mm]	822091832F70000000
	Concrete components (alternative solution)
	Reinforced concrete support ring, DN 700/1060 [mm], h=160 [mm]	821072701850000000
	Reinforced concrete height adjustment ring, DN 700/920 [mm], h= 60 [mm]	8210737025G0000000
	Shaft selection
	DN/ID 600 [mm] PP corrugated height-adjustment shaft	30500I0608003FT80B5
	DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=2 [m]	903060060090020
	DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=3 [m]	903060060090030
	Sealing ring selection
Open	Sealing ring for GIGAPIPE pipe DN 600 [mm]	809025600000000096
	Chamber base selection
	Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm], KN	815053000000000231
	PP base of chamber CSL DN 600, with one connection 0° DN 160 [mm]	815041160O3000W230
	PP base of chamber CSL DN 600, with one connection 0° DN 200 [mm]	815041200O6000W230
	PP base of chamber CSL DN 600, with one connection 0° DN 250 [mm]	8150412503O000W230
	PP base of chamber CSL DN 600, with one connection 0° DN 315 [mm]	81504131540000W230
	Accessories
Open	Socket adapter/chamber connection, DN 110 [mm]	8090201100000G0200
	Socket adapter/chamber connection, DN 160 [mm]	8090201600000G0200
	Socket adapter/chamber connection, DN 200 [mm]	8090202000000G0200
Open	Coupling seal for GIGAPIPE shaft, DN 110 [mm]	8092071103G0000046
	Coupling seal for GIGAPIPE shaft, DN 160 [mm]	8092071606G0000046
	Coupling seal for GIGAPIPE shaft, DN 200 [mm]	8092072006G0000046
	Hole saw	on request
