FM-0H-SMART PRE-WIRED H07Z1-U Cca Solid H07Z1-U Cca class wire

SMART PRE-WIRED are conduits with pre-wired power wires. The installation of the conduits is much quicker and simpler because wires are already pre-wired at the factory and do not need to be pulled on-site. This reduces the total costs of installation.

Available sizes: 16, 20, 25 [mm]
Available in rolls of 100 and 50 [m], depending on the diameter of the conduit. On request, other packing lengths and types are available (like drums or carton boxes)

Pipe solutions to increase your efficiency and make you more competitive in the installation market!

Advantages
- Time saving (no pulling of wires into conduits required)
- Cost saving (less man-hours required for the work)
- Halogen - free material for conduits (meets the requirements of EN 50642) and wires
Recommended application
Internal wiring of private dwellings

Choose
Due to the halogen-free material, SMART PRE-WIRED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings.
- Installation on plastering
- In floors
- In dry concrete
- In keramzite concrete

Technical information

EVOEL FM-0H-SMART TDS ENG

Product technical datasheet

Download

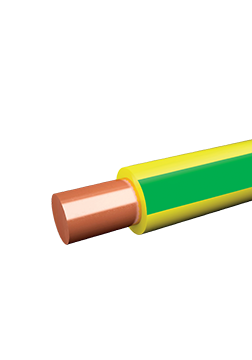

Solid H07Z1-U TDS ENG

Wire technical datasheet

Download

Conduit specifications:

Material - a special plastic (halogen-free)
Compression strength- medium 750 [N/5cm]
Impact strength- medium >2J @-25 [°C]
Temperature range from -25 to +105 [°C]
Non-flame propagator, self-extinguishing
Corrosion-resistant.

Pipe dimensions
Dimensions	DN 16	DN 20	DN 25
Outer Ø [mm]	16	20	25
Inner Ø [mm]	11.1	14.5	18.4
Bend radius ≥ [mm]	48	60	75

R- Bend radius
D- Bend diameter

Cable CPR classification (reaction to fire)
A_ca	B1_ca	B2_ca	C_ca	D_ca	E_ca	F_ca
No reaction	Very low reaction Non flame propagator Non fire propagator Very low heat emission	Low reaction Non flame propagator Non fire propagator Low heat emission	Reduced reaction Non flame propagator Non fire propagator Reduced heat emission	Improved reaction Non flame propagator Improved heat emission	Basic reaction Non flame propagator	Undetermined

The SMART conduits are manufactured in compliance with standards:

EN 61386-22
EN60754-1:2015
EN60754-2:2015
EN 61034-2
EN 60332-1-2
EN 60332-1-3
EN 50642:2018

Certificates

EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

Certificate of conformity (Bureau Veritas)
Download

Order information

Code	DN/OD	Wires [mm²]	Length [m]	Package¹ [m]
Solid wire² Prysmian Draka H07Z1-U CPR Class C_ca
on request	16	3G 1,5	100	2400
on request	16	3G 2,5	100	2400
on request	16	5G 1,5	100	2400
on request	20	5G 2,5	100	1200
on request	25	5G 2,5	50	1000

package¹ - other packing types and coils lengths on palets available on request
solid wire² - prewired conduits with solid halogen free wires (other wires available on request)

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
