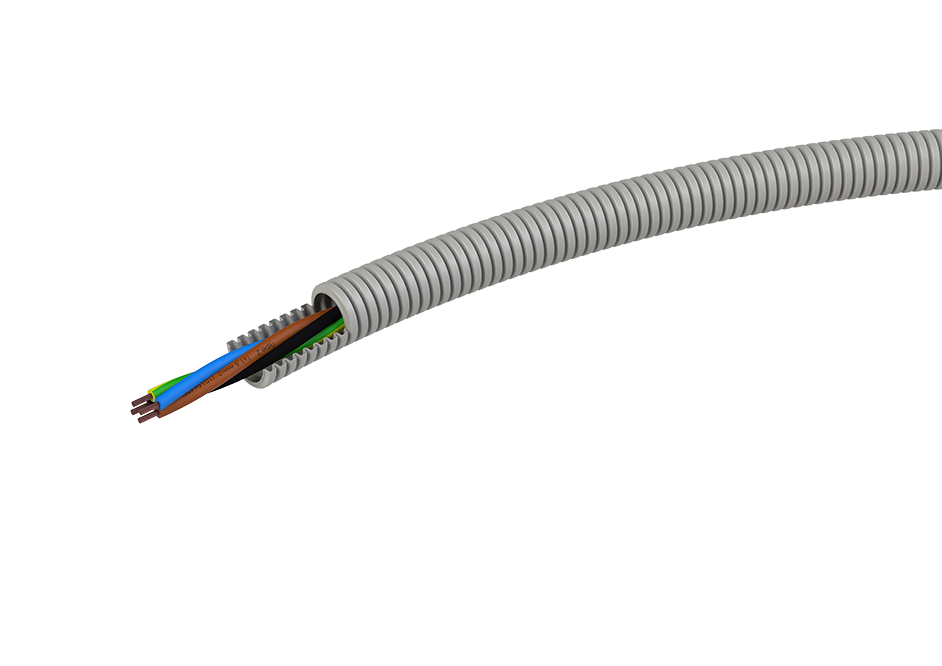

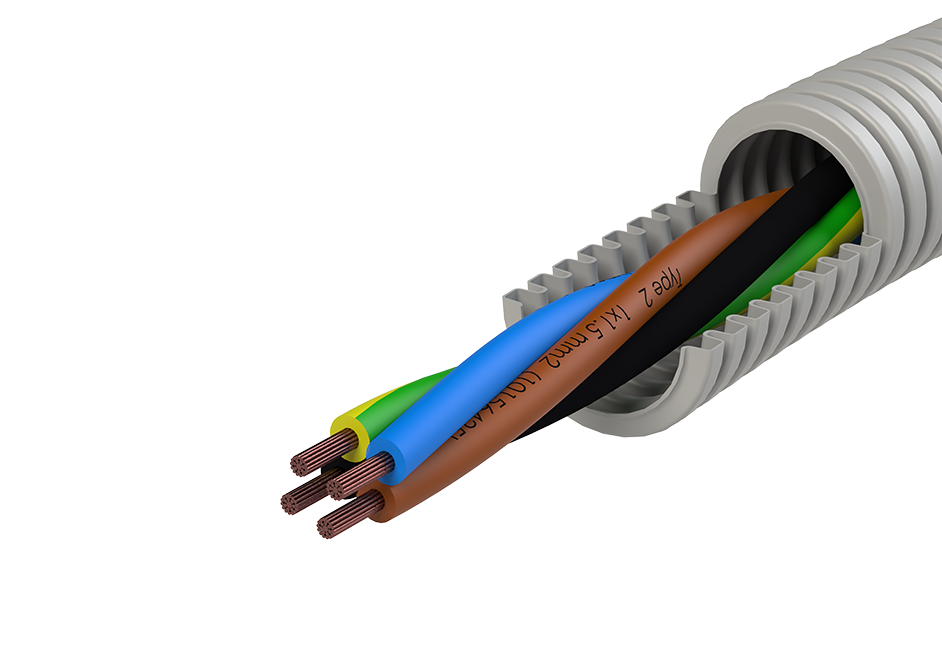

FM-0H-SMART PRE-WIRED H07Z1-R TWISTED
Twisted-stranded H07Z1-R Dca class wire
Comp. strength: 750 N/5cm, Classification: 33433
SMART PRE-WIRED are conduits with pre-wired power wires. The installation of the conduits is much quicker and simpler because cables are already pre-wired at the factory and do not need to be pulled on-site. This reduces the total costs of installation.
- Available sizes: 16 and 20 [mm]
- Available in rolls of 100 and 50 [m], depending on the diameter of the conduit. On request, other packing lengths and types are available (like drums or carton boxes).
Pipe solutions to increase your efficiency and make you more competitive in the installation market!
-
Advantages
- Time saving (no pulling of cables into conduits required)
- Cost saving (less man-hours required for the work)
- Halogen-free material for conduits (meets the requirements of EN 50642) and cables
-
Recommended application
Internal wiring of private dwellings
Due to the conduit halogen-free material, SMART PRE-WIRED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings.
- Installation on plastering
- In floors
- In dry concrete
- In keramzite concrete
-
Technical information
Conduit specifications:
- Material - a special plastic (halogen-free)
- Medium compression strength 750 [N/5cm]
- Medium impact strength
- Temperature resistance from -25°C to +105°C
- Non flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN 16 DN 20 Outer Ø [mm] 16 20 Inner Ø [mm] 11.1 14.5 Bend radius ≥ [mm] 48 60
R- Bend radius
D- Bend diameterWire specifications:
Cable CPR classification (reaction to fire) Aca
B1ca
B2ca
Cca
Dca
Eca
Fca
No reaction Very low reaction
Non flame propagator
Non fire propagator
Very low heat emissionLow reaction
Non flame propagator
Non fire propagator
Low heat emissionReduced reaction
Non flame propagator
Non fire propagator
Reduced heat emissionImproved reaction
Non flame propagator
Improved heat emissionBasic reaction
Non flame propagatorUndetermined -
Certificates
EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG
Certificate of conformity (Bureau Veritas)
Download
The SMART conduits are manufactured in compliance with standards:
- EN 61386-22
- EN60754-1:2015
- EN60754-2:2015
- EN 61034-2
- EN 60332-1-2
- EN 60332-1-3
- EN 50642:2018
