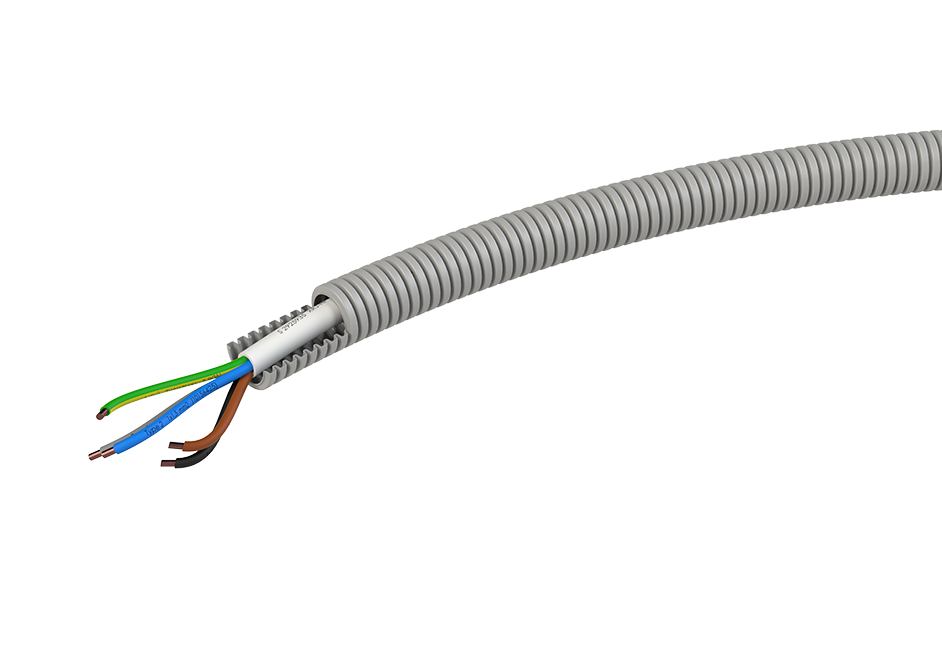

FM-0H-SMART PRE-CABLED XPJ-0H

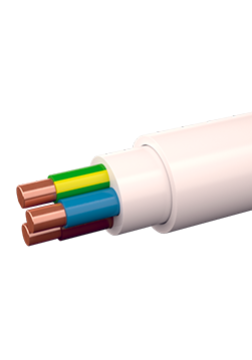

Solid XPJ-0H Dca class halogen free cable
Comp. strength: 750 N/5cm, Classification: 33433

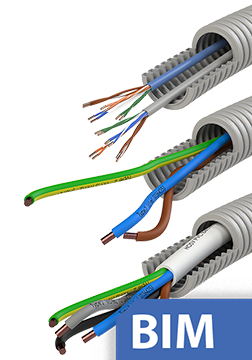

SMART PRE-CABELED are conduits with pre-cabled power or communication cables. The electro-installation works are much quicker and simpler because cables are already industrialy preinstalled at the factory and do not need to be pulled on-site. This reduces the total costs of installation significantly.
- Available in sizes of 16 and 20 mm (other sizes on demand)

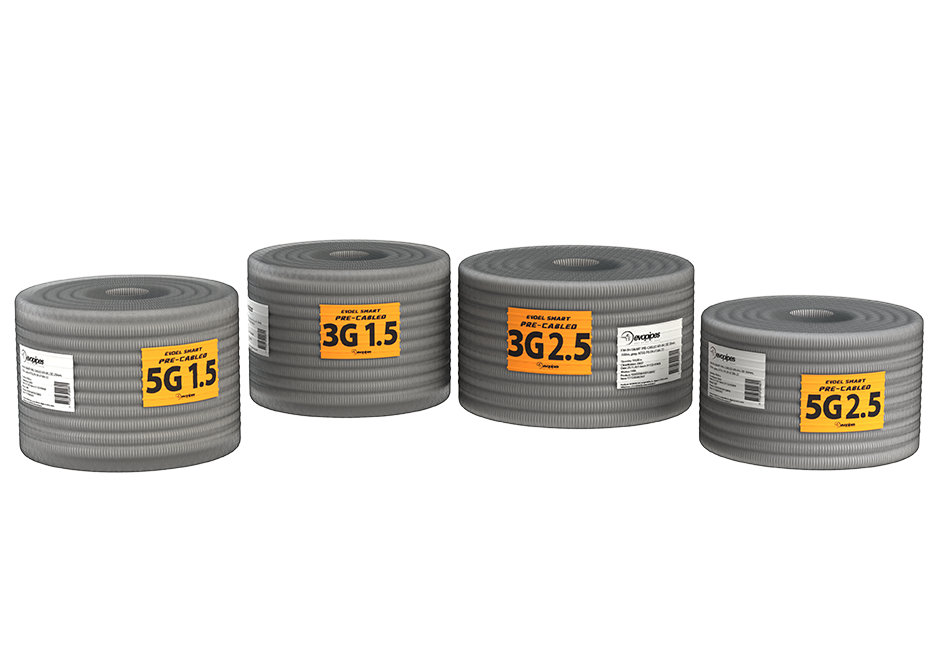

- Packed in coils of 100 m and 50 m, depending on the diameter of the conduit. On request, other packing lengths and types are available (like drums or carton boxes).
Pipe solutions to increase your efficiency and make you more competitive in the installation market!
-
Advantages
- Time saving (no pulling of cables into conduits required)
- Cost saving (less man-hours required for the work)
- Halogen - free material for conduits (meets the requirements of EN 50642) and cables
-
Recommended application
Internal wiring of private dwellings
Due to the halogen-free material, SMART PRE-CABLED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings.
- All indoor applications with medium load
- Installation on plastering
- In floors
- In dry concrete
- In keramzite layers
-
Technical information
Conduit specifications:
- Material- a special plastic (halogen-free)
- Compression strength- medium 750 [N/5cm]
- Impact strength- medium >2J @-25 [°C]
- Temperature range from -25 to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN 16 DN 20 Outer Ø [mm] 16 20 Inner Ø [mm] 11.1 14.5 Bend radius ≥ [mm] 48 60
R- Bend radius
D- Bend diameterCable CPR classification (reaction to fire) Aca
B1ca
B2ca
Cca
Dca
Eca
Fca
No reaction Very low reaction
Non-flame propagator
Non-fire propagator
Very low heat emissionLow reaction
Non-flame propagator
Non-fire propagator
Low heat emissionReduced reaction
Non-flame propagator
Non-fire propagator
Reduced heat emissionImproved reaction
Non-flame propagator
Improved heat emissionBasic reaction
Non-flame propagatorUndetermined -
Certificates
EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

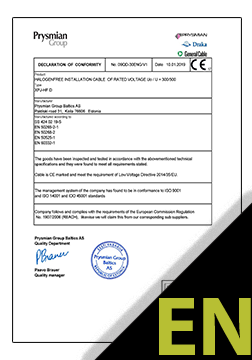

Certificate of conformity (Bureau Veritas)
Download
The SMART conduits are manufactured in compliance with standards:
- EN 61386-22
- EN 60754-1:2015
- EN 60754-2:2015
- EN 61034-2
- EN 60332-1-2
- EN 60332-1-3
- EN 50642:2018
