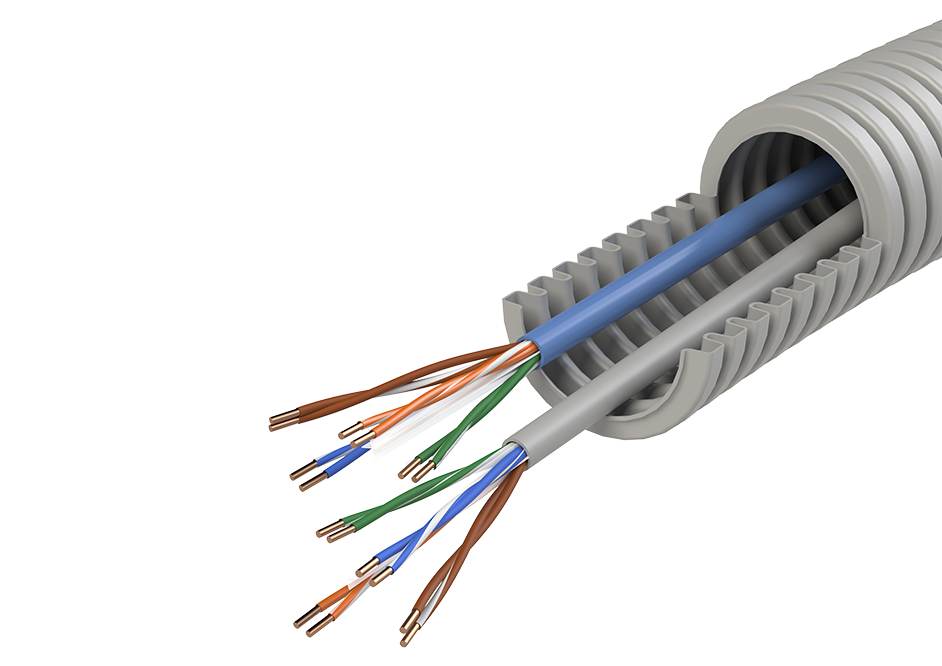

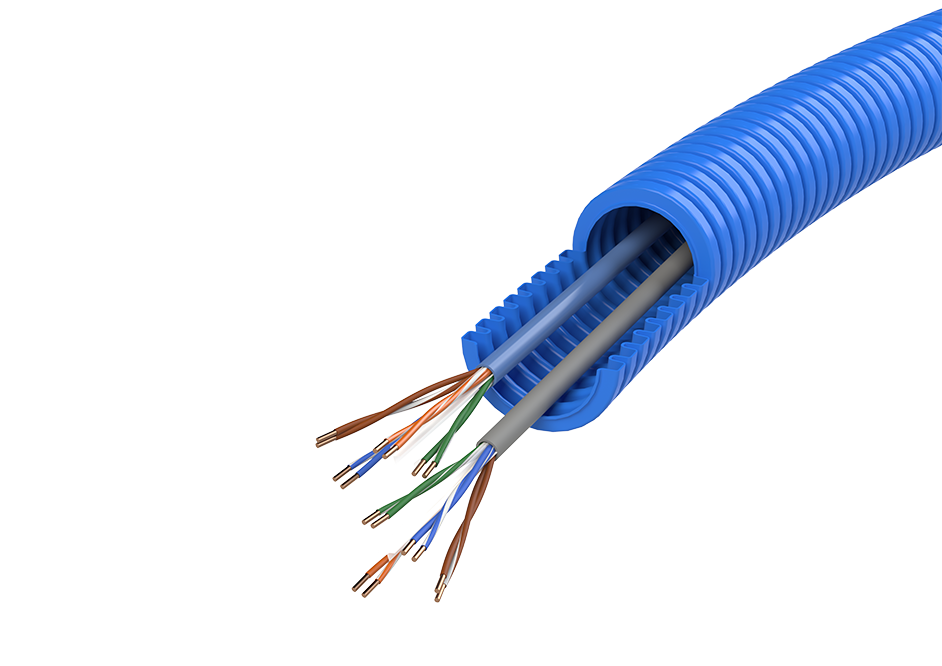

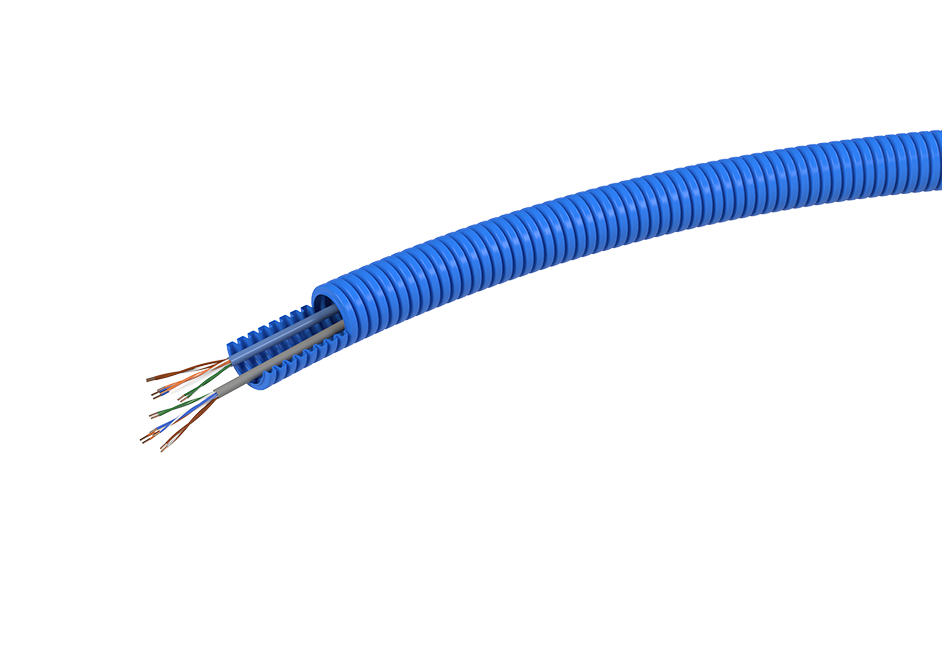

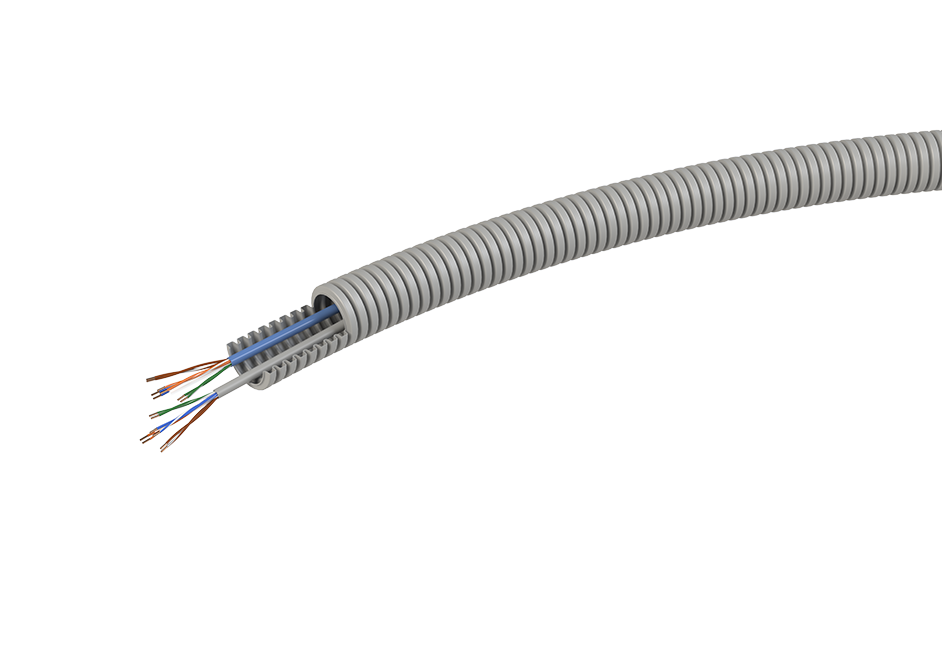

FM-0H-SMART PRE-CABLED 2x UC400 Cat 6 HD LSHF

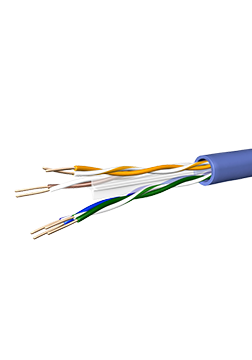

U/UTP Cat 6 Installation Dca class halogen free cable
Comp. strength: 750 N/5cm, Classification: 33433
SMART PRE-CABELED are conduits with pre-cabled power or communication cables. The electro-installation works are much quicker and simpler because cables are already industrially preinstalled at the factory and do not need to be pulled on-site. This reduces the total costs of installation significantly.
- Available in sizes: 20 [mm]

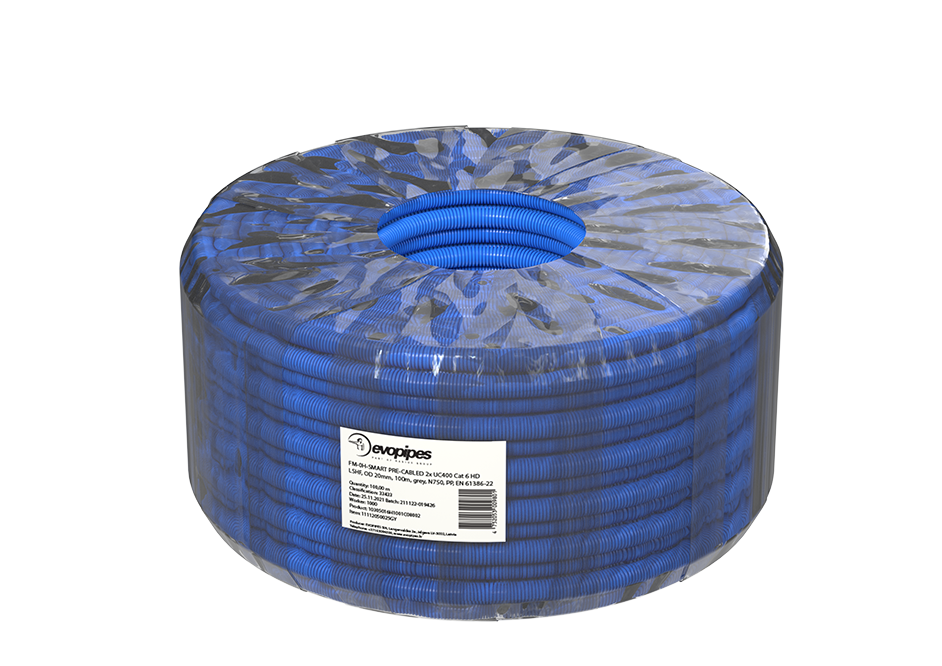

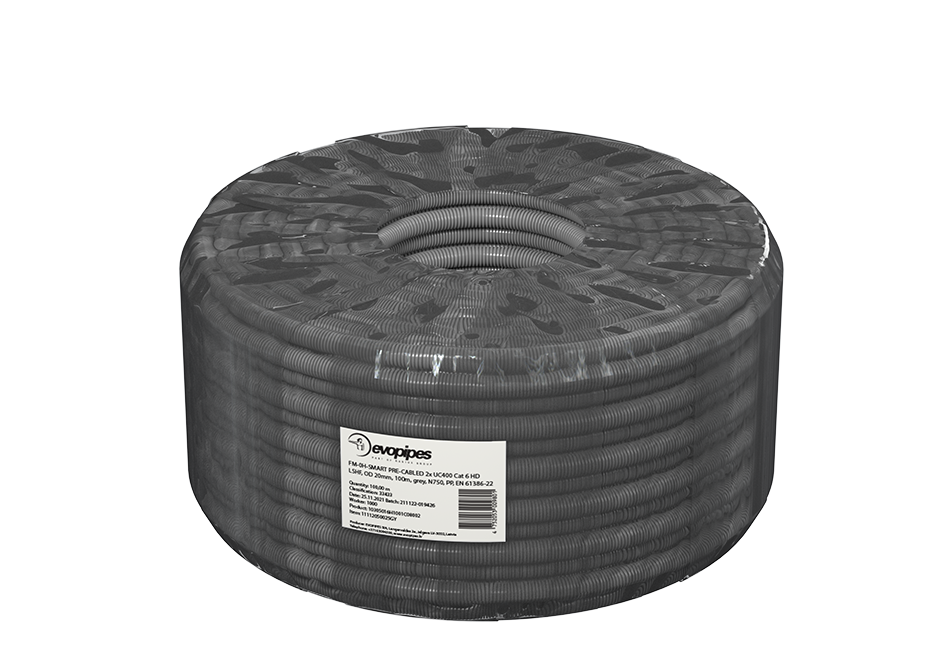

- Packed in coils of 100 [m]
Pipe solutions to increase your efficiency and make you more competitive in the installation market!
-
Advantages
- Time saving (no pulling of cables into conduits required)
- Cost saving (less man-hours required for the work)
- Halogen-free material for conduits (meets the requirements of EN 50642) and cables
-
Recommended application
Internal wiring of private dwellings
Due to the halogen-free material, SMART PRE-CABLED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings.
- All indoor applications with medium load
- Installation on plastering
- In floors
- In dry concrete
- In keramzite layers
-
Technical information
Conduit specifications:
- Material- a special plastic (halogen-free)
- Compression strength- medium 750 [N/5cm]
- Impact strength- medium >2J @-25 [°C]
- Temperature range from -25 to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN 20 Outer Ø [mm] 20 Inner Ø [mm] 14.5 Bend radius ≥ [mm] 60
R- Bend radius
D- Bend diameterCable CPR classification (reaction to fire) Aca
B1ca
B2ca
Cca
Dca
Eca
Fca
No reaction Very low reaction
Non-flame propagator
Non-fire propagator
Very low heat emissionLow reaction
Non-flame propagator
Non-fire propagator
Low heat emissionReduced reaction
Non-flame propagator
Non-fire propagator
Reduced heat emissionImproved reaction
Non-flame propagator
Improved heat emissionBasic reaction
Non-flame propagatorUndetermined The SMART conduits are manufactured in compliance with standards:
- EN 61386-22
- EN60754-1:2015
- EN60754-2:2015
- EN 61034-2
- EN 60332-1-2
- EN 60332-1-3
- EN 50642:2018
-

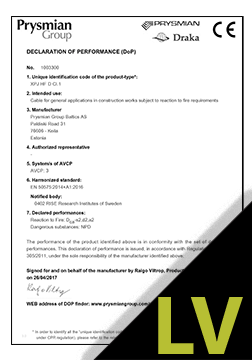

Certificates
