ULTRASTRESS
PE100-RC type potable water pipes
EN 12201-2, PAS 1075 type 1, DN/OD 16-1200 [mm]

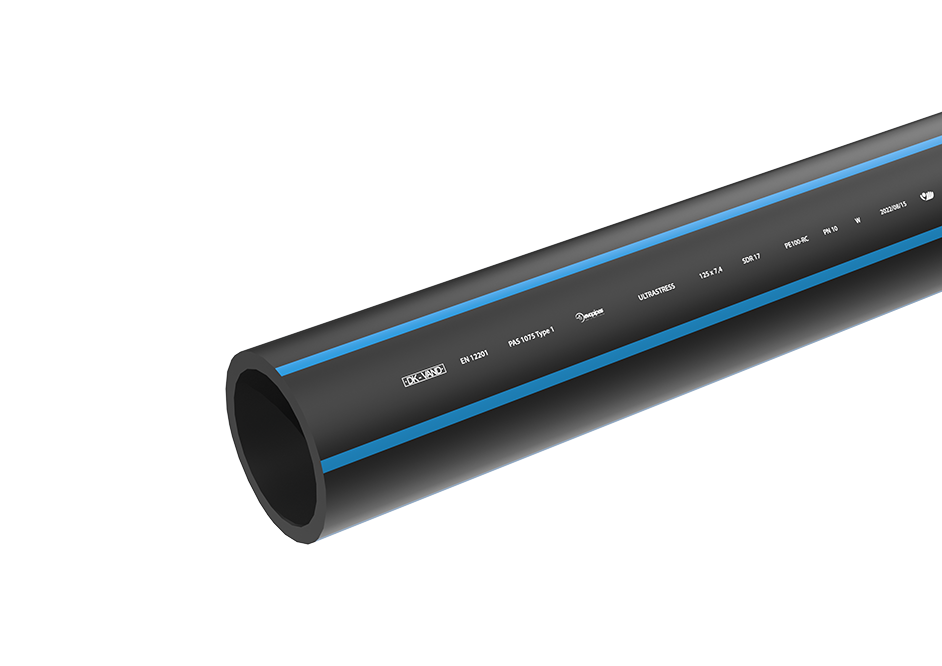

Ultrastress pressure pipes for potable water are made from PE100-RC material.
PE100-RC material pipes are resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface of the pipe.
-
Revit BIM files
-
Advantages
- Minimum 100 years of lifetime
- Design conforms to PAS 1075 Type 1
- High resistance to point-type loads
-
Construction methods
Conventional (traditional) construction:
- In open trenches without bedding and filling according to EN 1610, EN 1046, EN 12327, EN 12007-2 (does not apply to soil-filled in around the pipe)
Alternative installation techniques:
- Laying into the soil with a plough or a milling cutter according to EN 1610, EN 1046, EN 12327, EN 12007-2 (does not apply to soil-filled around the pipe)
- Horizontal directional drilling according to EN 12889, EN 14457
HORIZONTAL DIRECTIONAL DRILLING is used for the construction of new or the reconstruction of old pipelines. The old pipelines can remain fully functional during the reconstruction. Only short-term interruptions of work may occur in order to perform new connections. The use of this method is suitable for areas where trench works must be avoided due to, for instance: water bodies, roads and railroads, squares, buildings, etc.
-
Technical information
- Corresponds to PAS1075 type 1*
- Dimensions of the pipe conform to EN 12201
- Made of high-density polyethylene (HDPE), type PE100-RC
- Following ISO/TR 10358 and ISO/TR 7620, the pipes and fittings possess chemical resistance between pH 2 (acid) and pH 12 (alkaline)
Pipe welding operations:
Buttfusion jointing should be carried out according to ISO 12176-1 standard requirements. Electrofusion jointing should be carried out according to ISO 12176-2 standard requirements.
EVOPIPES PIPE CLASSIFICATION ACCORDING TO PAS* 1075
* PAS = Publicly Available Specification serves as an addition to the existing system of normative acts and directives and refers to polyethylene pipes that are intended for installation using alternative construction methods.
Type 1 – monolith wall pipe made of PE100 – RC material.
Type 2 – 2 layer pipe made of PE100 – RC material, 10% VISIO layer, 90% base layer.
Type 3 – monolith wall pipe made of PE100 – RC material with polypropylene (PP) protective layer, the green lines identify additional protective layer.ULTRASTRESS pulling parameters:
Max.admissible pulling force [kN] DN/OD Air temperature 20°C SDR17 SDR11 50 6.2 9.2 63 9.9 14.6 75 14.0 20.4 90 20.1 29.5 110 30.0 44.0 125 38.3 57.0 140 48.1 71.1 160 62.9 93.4 180 79.7 118.0 200 98.4 145.5 225 124.7 184.4 250 153.1 226.9 280 192.3 284.4 315 243.7 360.3 355 309.9 457.2 400 392.2 580.7 450 497.1 735.9 500 614.3 907.7 560 769.2 1137.7 630 974.8 1441.0 -
