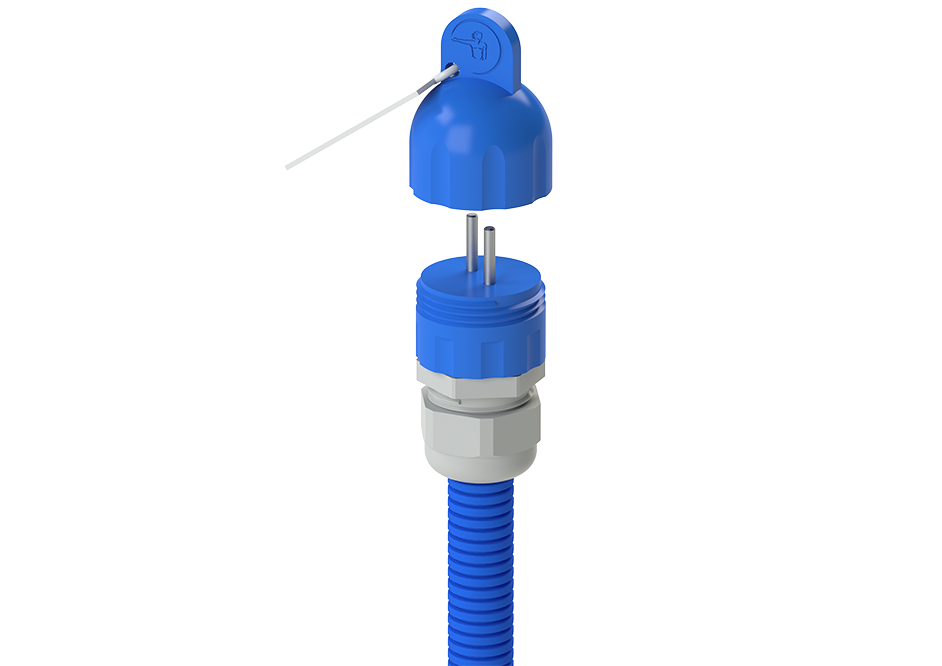

TRACER connection hub
Connection hub for signal location
 |
By using TRACER signal wire system, it is possible to determine the exact location and depth of the pipeline construction and to trace the constructed pipeline without additional earthwork. |

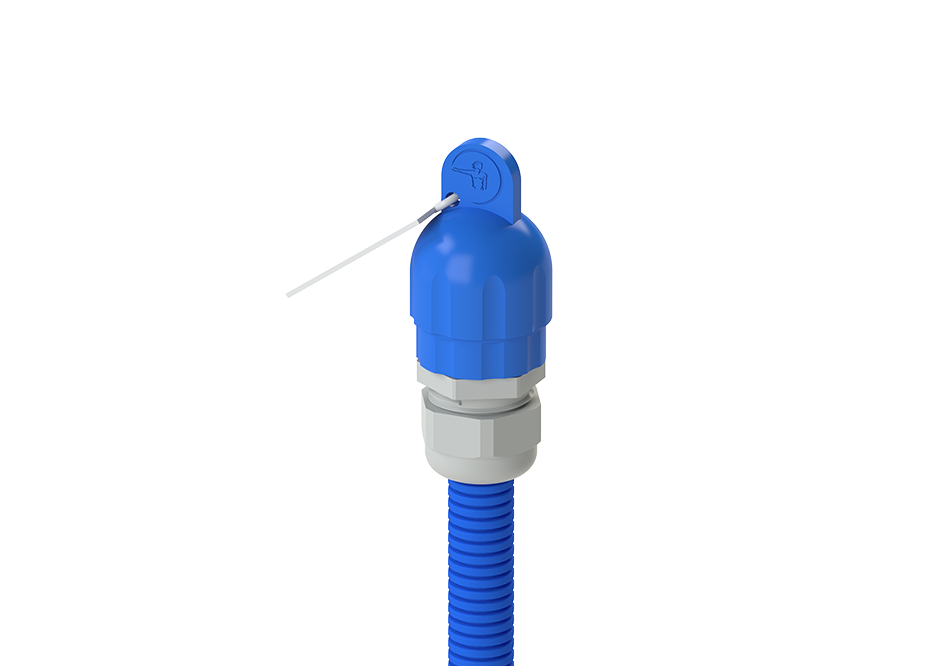

TRACER connection hub is intended to provide convenient access to signal wire systems above ground. It can be mounted in the surface box.
-
Recommended application
TRACER connection hub

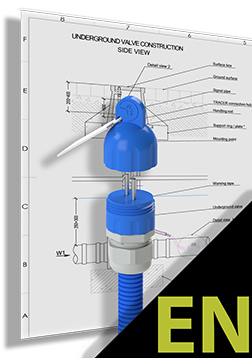

Designed installation - with ULTRASTRESS PROTECT TRACER potable water or wastewater pressure pipes. The connection hub is bundled with straps for attachment to the extension rod inside the road surface box.
-
Technical information
Two signal wires:
- Diameter- 0.5 [mm]
- Material- stainless steel (1.4301 / V2A)
- Cross section area - 0.24 [mm2]
- Electrical resistivity - 0.72 [Ω x mm2/m]
- Isolation material of wries - polyamide (PA)
- Isolation colour - red and black

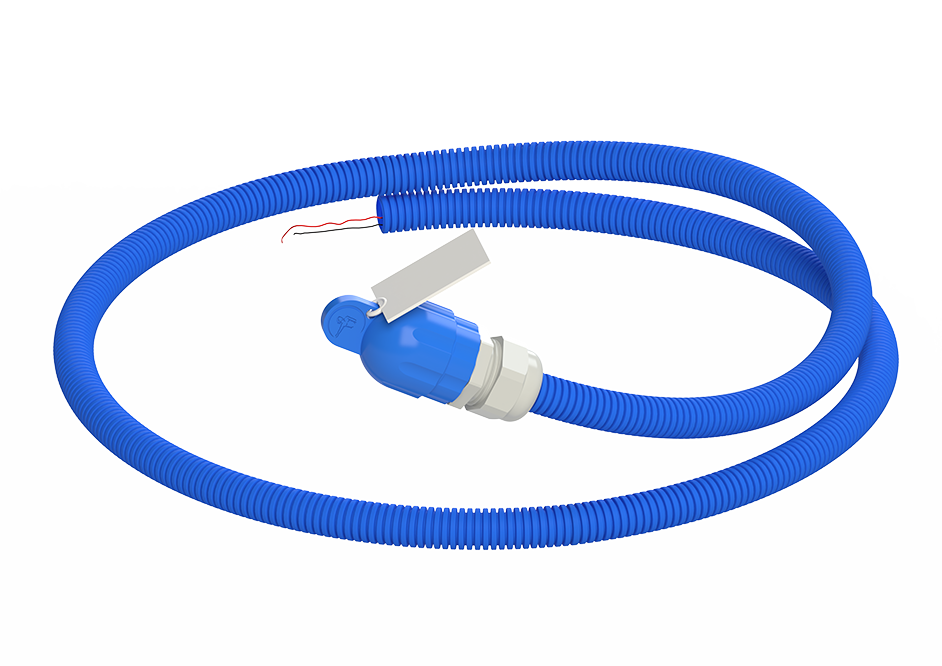

Protective pipe:
- DN/OD - 16 [mm]
- DN/ID - 11.1 [mm]
- Length 3 [m]
- Material - polypropylene (PP)
- Compression strength - medium 750 [N/5cm]
- Conformity - EN 61386-22:2004+AC/A11:2011
