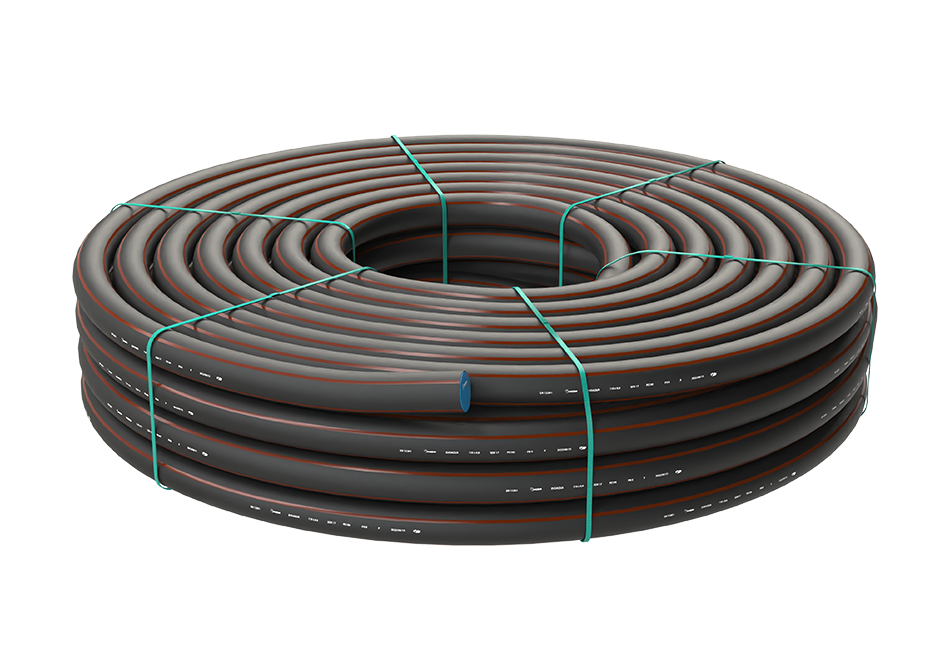

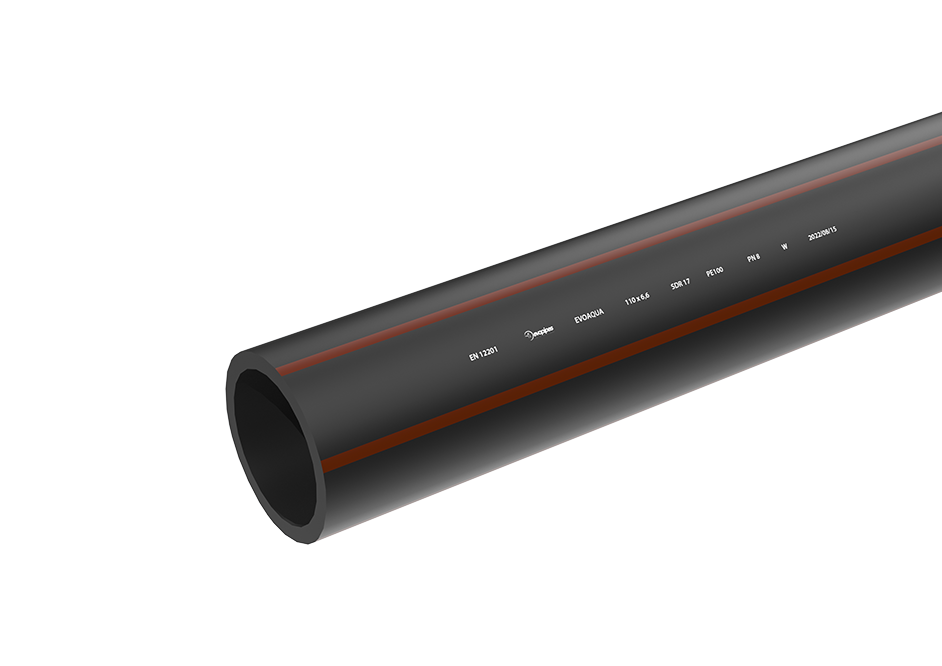

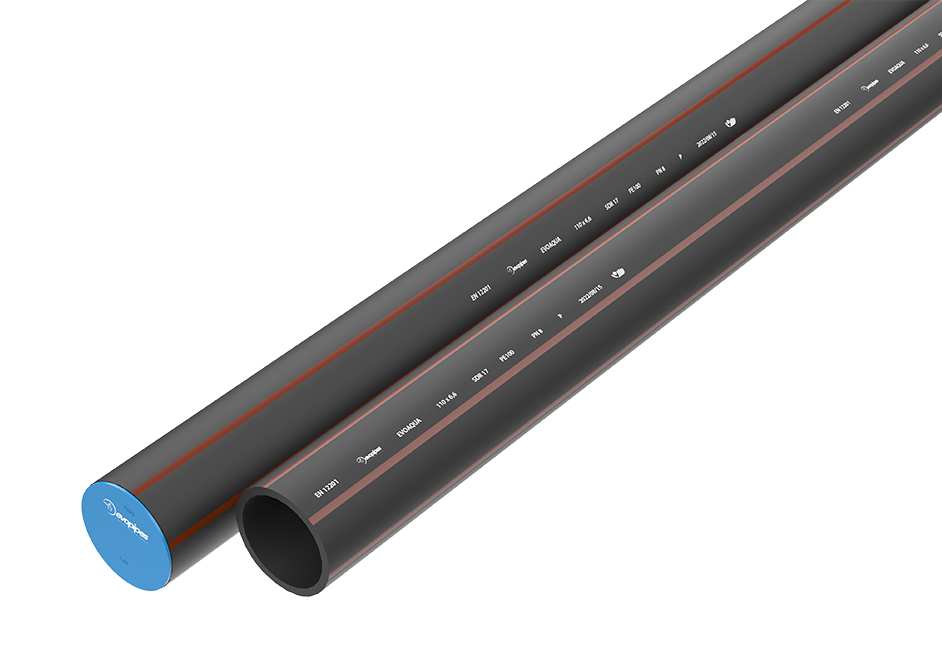

EVOAQUA PE100
Polyethylene (PE100) wasterwater pressure pipe
EN 12201-2, DN/OD 20, 25, 32, 40, 50 [mm]
EVOAQUA wastewater pressure pipe from PE100 type material
- Standard dimension ratio - SDR11 or SDR17
- Pipe pressure class PN16 or PN10*
*Other pressure class and SDR pipes available on request
-
Advantages
- Excellent long-term durability properties (up to 50 years in service)
- High resistance to corrosion
- Very low resistance to flow
- Chemically and biologically inert material
- Comprehensive range of joints and adapter fittings
- Environmentally-friendly material PE is 100% recyclable
-
Recommended application
Conventional (traditional) construction:
- In open trench with bedding and filling according to EN 1610, EN 1046, EN 12007-2, EN 12327
-
Technical information
- Produced according to EN 12201
- Pipes are made of high density polyethylene (HDPE) type PE100
- Pipe pressure class PN16 or PN10 bar*
- Standard dimension ratio - SDR11 or SDR17
- Pipe connection methods:
- By contact welding
- By electrofusion fittings
- Following ISO/TR 10358 and ISO/TR 7620 the pipes and fittings possess chemical resistance between pH 2 (acid) and pH 12 (alkaline)
*Other pressure class and SDR pipes available on request
-

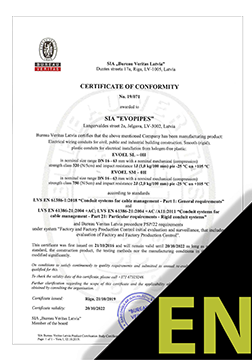

Certificates
