ULTRASTRESS PROTECT GAS TRACER

PE100-RC type gas pipes with integrated signal wires

EN 1555, PAS 1075 type 3, DN/OD 32-630 [mm]
ULTRASTRESS PROTECT GAS TRACER
ULTRASTRESS PROTECT GAS TRACER
ULTRASTRESS PROTECT GAS TRACER
ULTRASTRESS PROTECT GAS TRACER

ULTRASTRESS PROTECT GAS TRACER gas supply pressure pipes made from PE100-RC material with integrated signal wires and added polypropylene (PP) protective layer.

By using TRACER products it is possible to determine the exact location and depth of the pipeline construction and to trace the constructed pipeline without additional earthwork.

PE100-RC material pipes are resistant to long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface of the pipe.

PE100-RC pipes with PP coating provide additional durability against scratching in cases of especially complex installation, for
instance, while burst lining.

  • Advantages
    • Pipe system with a reliable and accurate location detection system
    • Minimum 100 years lifetime
    • The protective layer provides maximum resistance to mechanical damage
    • Conforms to PAS 1075 Type 3
    • High resistance to point-type loads
    • Designed for alternative installation methods- horizontal directional drilling, relining, and bursting
  • Construction methods
    For traditional (open trench) installation:
    • In open trenches without bedding and filling according to EN 1610, EN 1046, EN 12327, EN 12007-2 (does not apply to soil-filled in around the pipe)
    For alternative installation methods:
    • Laying into the soil with a plough or a milling cuter according to EN 1610, EN 1046, EN 12327, EN 12007-2 (does not apply to soil-filled around the pipe)
    • Horizontal directional drilling according to EN 12889, EN 14457


    Horizontal directional drilling is used for the construction of new or the reconstruction of old pipelines. The old
    pipelines can remain fully functional during the reconstruction. Only short term interruptions of work may occur in order to
    perform new connections. Use of this method is suitable for areas where trench works must be avoided due to, for instance:
    water bodies, roads and railroads, squares, buildings, etc.

    • Drawing into the old pipe (relining) according to EN 12889, EN 14457


    Relining method is used for the reconstruction of old pipelines. ULTRASTRESS pipe with a slightly smaller diameter is drawn into the
    old pipe. This method is used in several cases of reconstruction. Only the beginning of the pipeline span has to be reconstructed
    and junctions of the pipe are excavated during the works.

    • Burst lining according to EN 12889, EN 14457


    Burst lining is used if the old pipeline is heavily deformed or its diameter does not conform with the new requirements. A hydraulic burst
    head is used as the guide, which builds the way for the new pipe. The specific nature of the method permits the drawing in of a
    pipe of the same diameter or larger than the existing one. Advantages of the method:

    1. Reconstruction of easily bursting pipes made of materials like ceramic, concrete, cast iron, polymer, steel, etc. is possible.
    2. The flow rate parameters of the new pipe are higher or equal to the throughput capacity of the reconstructed pipe (drawing
      in of a pipe with a larger diameter is possible).
    3. Compact equipment permits operation in restricted conditions.
    Pipe welding operations:

    Buttfusion welding should be carried out according to ISO 12176-1 standard requirements.

    Electrofusion jointing should be carried out according to ISO 12176-2 standard requirements.



  • Technical information

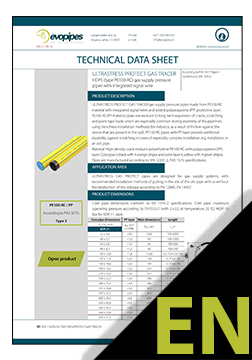

    ULTRASTRESS PROTECT GAS TRACER TDS ENG

    Product technical datasheet

    Download
    ULTRASTRESS PROTECT GAS TRACER TDS ENG
    • Conforms to PAS1075 type 3*
    • Dimensions of the pipe conform to EN 1555

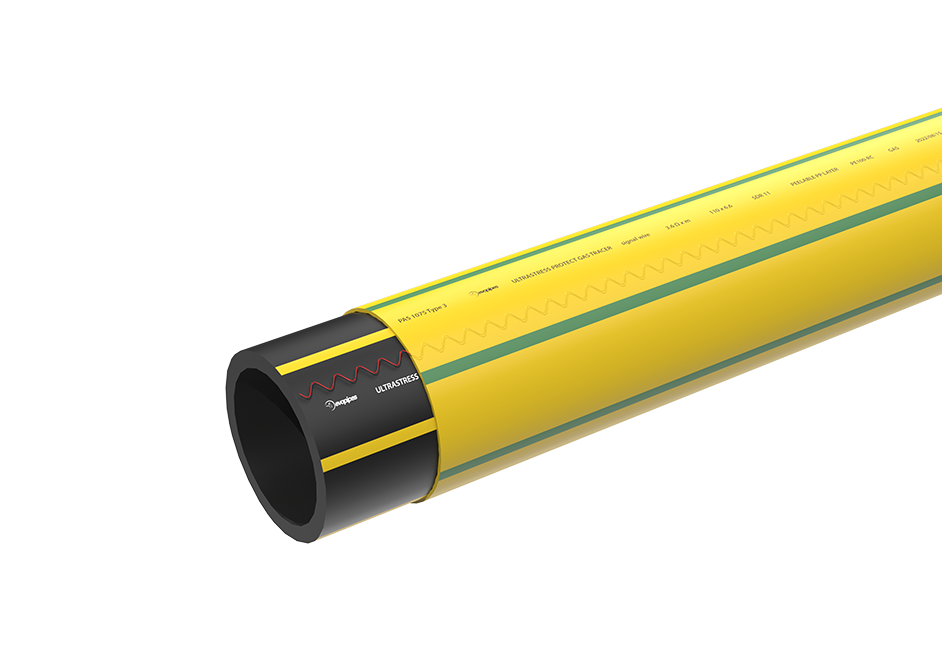

    • Core pipe from high-density polyethylene (HDPE), type PE100-RC
    • Peelable protective layer from polypropylene (PP)
    • Protective layer thickness: ~10% of the thickness of the core pipe wall thickness

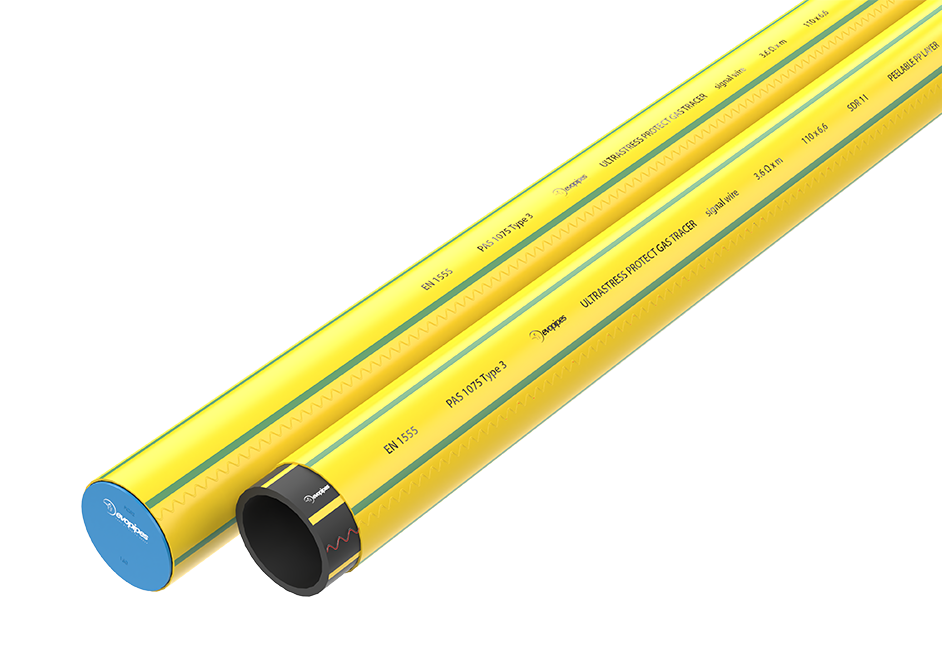

    • Green stripes identify additional PP protective layer
    • Two signal wires, laminated into polyester tape:
      • Signal wire isolation material - polyamide (PA)
      • Colour - red and black
      • Signal wire material - stainless steel
      • Diameter of signal wires 0.5 [mm]
      • Cross-sectional area 0.2 [mm2]
    • Following ISO/TR 10358 and ISO/TR 7620, the pipes and fittings possess chemical resistance between pH 2 (acid) and pH 12 (alkaline)
    Pipe dimensions:

    dn en [mm] em (±10%) [mm] Dm [mm]
    SDR11^
    32 3.0 ~0.9 33.8
    40 3.7 ~1.0 42
    63 5.8 ~1.0 65
    90 8.2 ~1.5 93
    110 10.0 ~1.8 113.6
    125 11.4 ~2.0 129
    160 14.6 ~2.0 164
    180 16.4 ~2.0 184
    200 18.2 ~2.0 204
    225 20.5 ~3.0 231
    250 22.7 ~3.0 256
    280 25.4 ~3.0 286
    315 28.6 ~3.0 321
    355 32.2 ~4.0 363
    400 36.3 ~4.0 408
    450 40.9 ~4.0 458
    500 45.4 ~4.0 508
    560 50.8 ~5.0 570
    630 57.2 ~5.0 640
    EVOPIPES PIPE CLASSIFICATION ACCORDING TO PAS* 1075

    * PAS = Publicly Available Specification serves as an addition to the existing system of normative acts and directives and refers to polyethylene pipes that are intended for installation using alternative construction methods.

    Type 1 – monolith wall pipe made of PE100 – RC material.

    Type 2 – 2 layer pipe made of PE100 – RC material, 10% VISIO layer, 90% base layer.

    Type 3 – monolith wall pipe made of PE100 – RC material with polypropylene (PP) protective layer, the green lines identify additional protective layer.

  • Certificates

    ULTRASTRESS PROTECT / TRACER EPD

    Environmental product declaration (EPD HUB)

    Download
    ULTRASTRESS PROTECT / TRACER EPD

    EVOGAS and VISIO Certificate ENG

    Certificate of conformity (Bureau Veritas)

    Download
    EVOGAS and VISIO Certificate ENG

    ULTRASTRESS GAS, VISIO, PROTECT Certificate ENG

    Certificate of conformity (Bureau Veritas)

    Download
    ULTRASTRESS GAS, VISIO, PROTECT Certificate ENG

ULTRASTRESS PROTECT GAS TRACER

PE100-RC type gas pipes with integrated signal wires

EN 1555, PAS 1075 type 3, DN/OD 32-630 [mm]
Downloads

ULTRASTRESS, VISIO, PROTECT Information ENG

Pressure pipe systems for alternative and traditional construction methods

Download
ULTRASTRESS, VISIO, PROTECT Information ENG

ULTRASTRESS PROTECT TRACER Catalogue LV

Pressure pipes with integrated tracing signal wires

Download
ULTRASTRESS PROTECT TRACER Catalogue LV

ULTRASTRESS PROTECT / TRACER EPD

Environmental product declaration (EPD HUB)

Download
ULTRASTRESS PROTECT / TRACER EPD

EVOGAS and VISIO Certificate ENG

Certificate of conformity (Bureau Veritas)

Download
EVOGAS and VISIO Certificate ENG

ULTRASTRESS GAS, VISIO, PROTECT Certificate ENG

Certificate of conformity (Bureau Veritas)

Download
ULTRASTRESS GAS, VISIO, PROTECT Certificate ENG

ULTRASTRESS PROTECT GAS TRACER TDS ENG

Product technical datasheet

Download
ULTRASTRESS PROTECT GAS TRACER TDS ENG

Calculators

Hydraulic performance of gas pressure systems

Calculations of gas throughflow, flow speed and pressure drop.

Horizontal directional drilling calculations

Calculation of pipe pulling force and length according to GW 321

Order information

DN/OD Wall thickness ᵃ
[mm]
Length
[m]
Code Max. length
[m]
ULTRASTRESS PROTECT GAS TRACER, MOP10 [bar], SDR11ᵇ

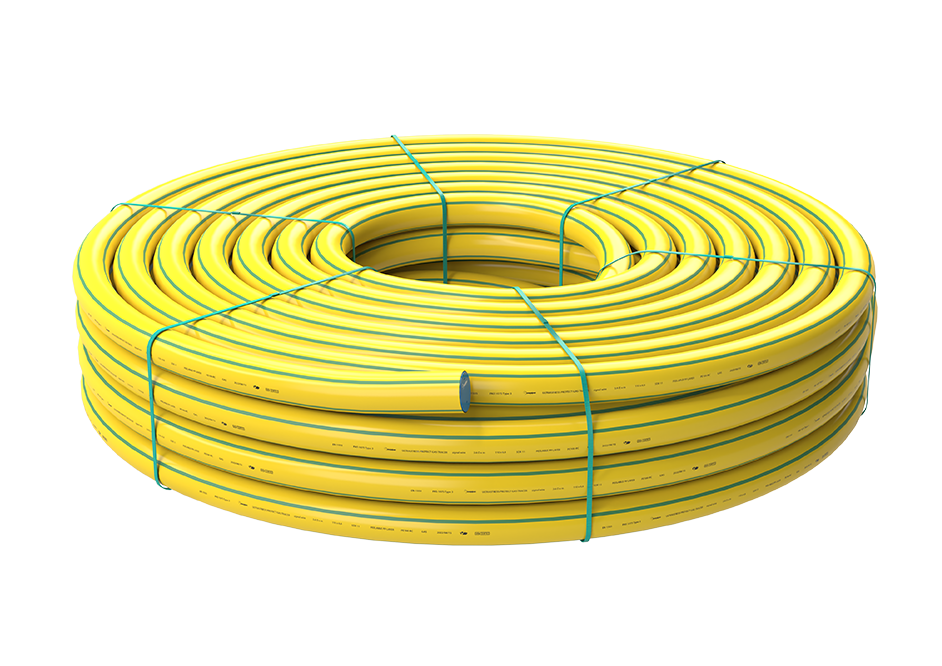

Pipes in coils
32 3.0 100 50900032H10210D590I up to 2000
40 3.7 100 50900040H10210D590I up to 1000
50 4.6 100 50900050H10210D590I up to 800
63 5.8 100 50900063H10210D590I up to 600
75 6.8 100 50900075H10210D590I up to 300
90 8.2 100 50900090H10210D590I up to 200
110 10.0 12 50900110H10210D590I 13.4/20/50/100

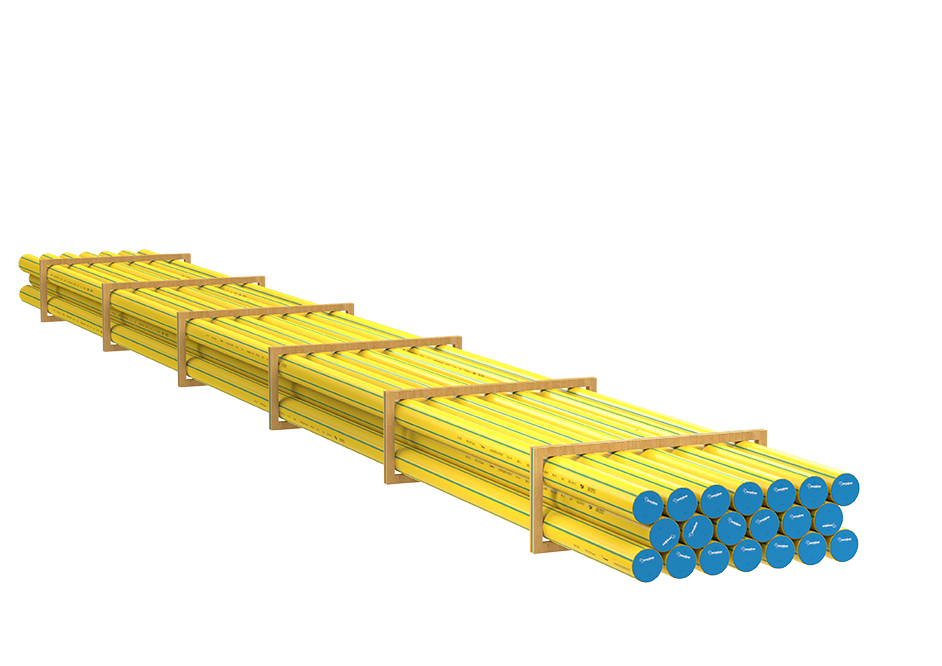

Pipes in bars
125 11.4 12 50900125134210D590I 13.4/20
160 14.6 12 50900160134210D590I 13.4/20
180 16.4 12 50900180134210D590I 13.4/20
200 18.2 12 50900200134210D590I 13.4/20
225 20.5 12 50900225134210D590I 13.4/20
250 22.7 12 50900250134210D590I 13.4/20
280 25.4 12 50900280134210D590I 13.4/20
315 28.6 12 50900315134210D590I 13.4/20
355 32.2 12 50900355134210D590I 13.4/20
400 36.3 12 50900400134210D590I 13.4/20
450 40.9 12 50900450134210D590I 13.4/20
500 45.4 12 50900500134210D590I 13.4/20
560 50.8 12 50900560134210D590I 13.4/20
630 57.2 12 50900630134210D590I 13.4/20

ᵃ Core pipe wall thickness
ᵇ Other SDR and maximum operating pressure (MOP) pipes available on request
Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
