TRACER / PROTECT GAS signal wire system

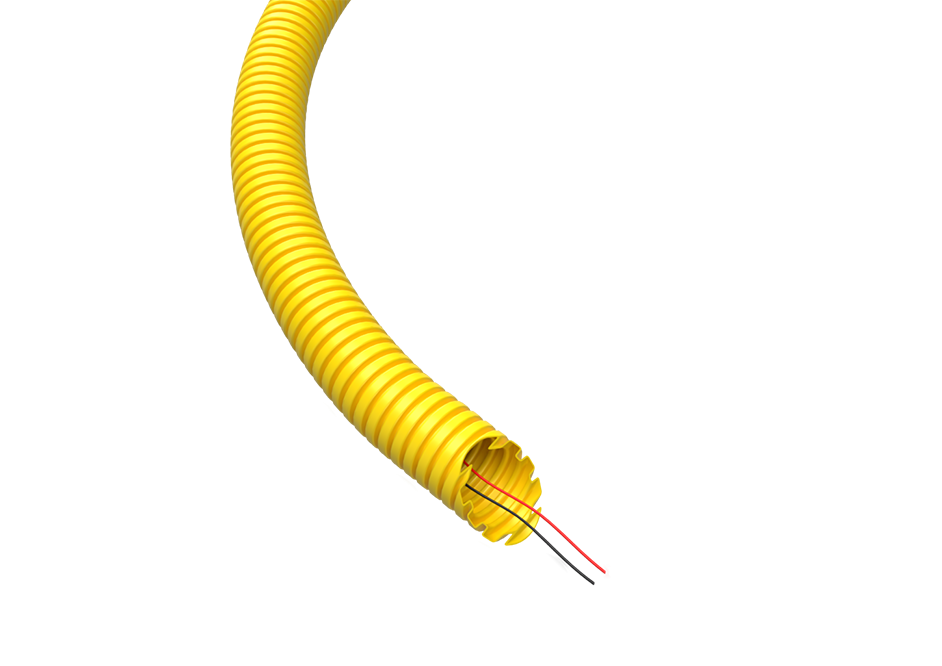

Signal wires with protection pipe
Protection pipe - DN/OD 16 mm
 |

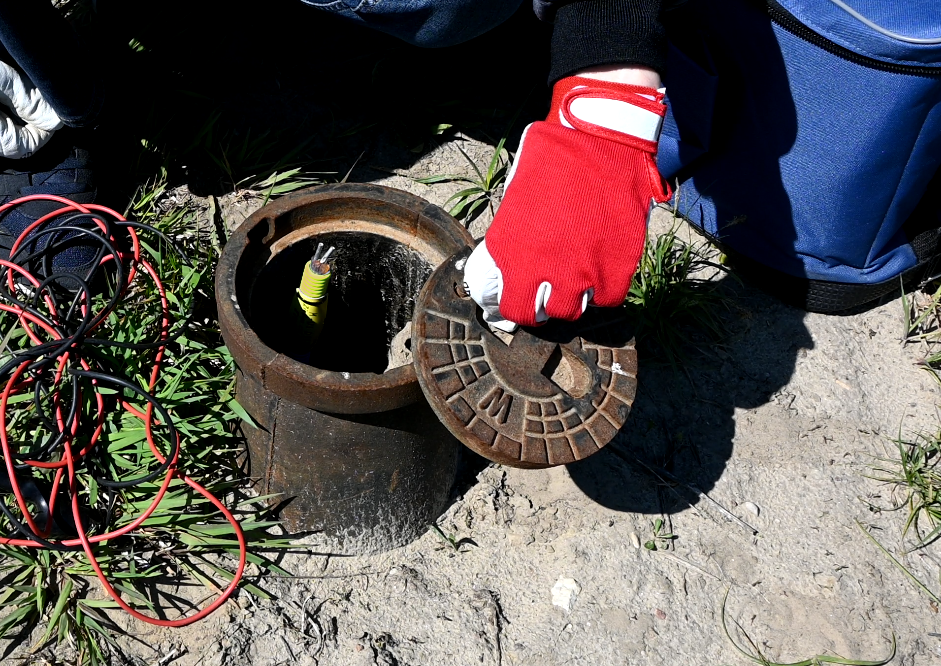

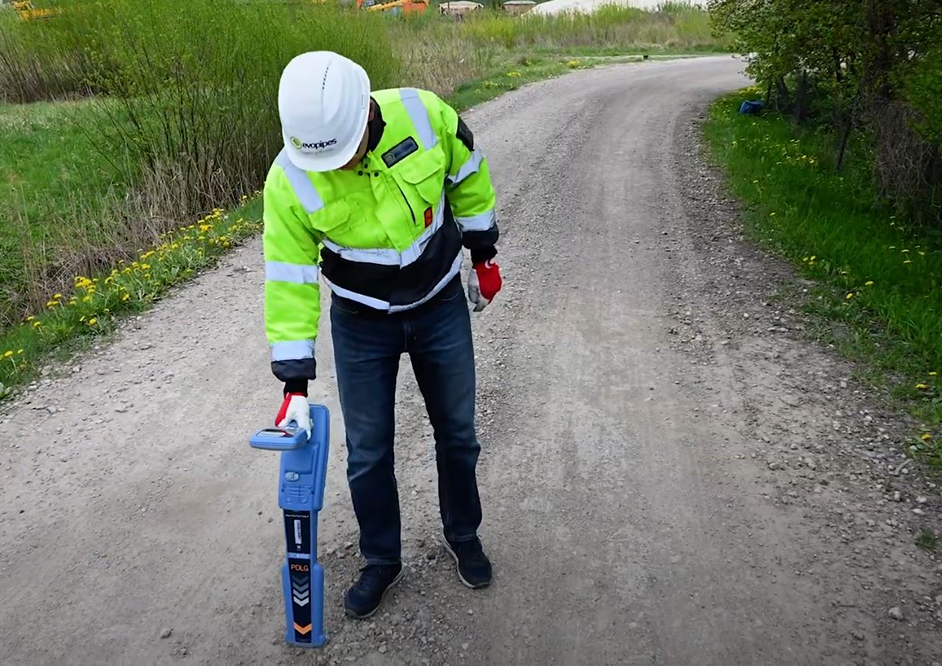

By using TRACER / PROTECT GAS signal wire system it is possible to determine the exact location and depth of the pipeline construction and to trace the constructed pipeline without additional earthwork. |

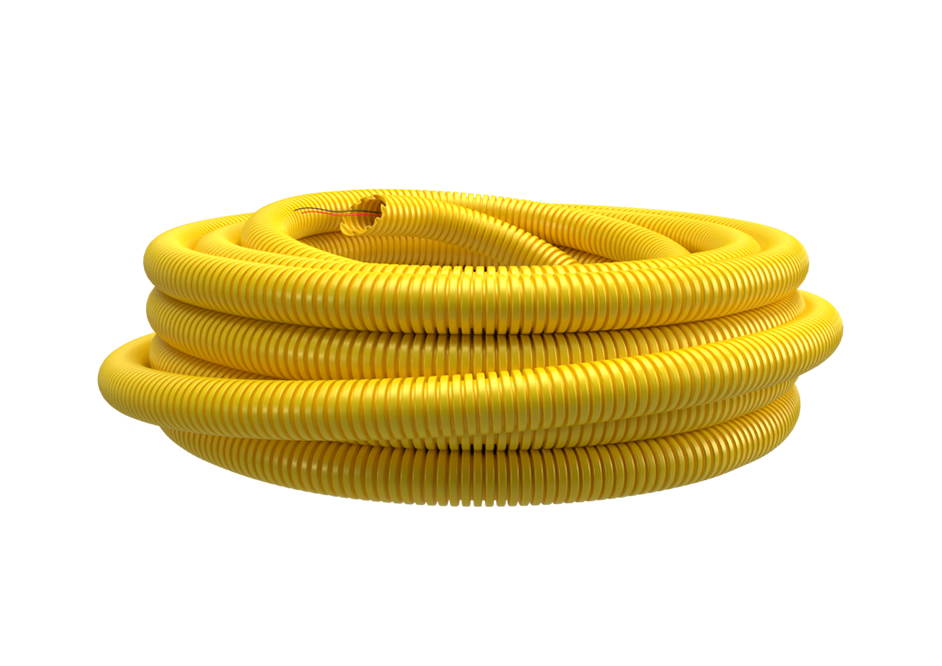

TRACER / PROTECT GAS signal wire system is delivered in coils. Length in each coil: 100 [m].
-
Recommended application
Designed installation - with ULTRASTRESS VISIO GAS or ULTRASTRESS PROTECT GAS gas supply pipes. Installation directly above pressure pipe together with warning tape.
-
Technical information
Two signal wires:
- Diameter - 0.5 mm
- Material - stainless steel (1.4301 / V2A)
- Cross section area - 0.24 mm2
- Electrical resistivity - 0.72 Ω x mm2/m
- Isolation material of wries - polyamide (PA)
- Isolation colour - red and black
Protective pipe:
- DN/OD - 16 mm; DN/ID - 11.1 mm
- Material - polypropylene (PP)
- Compression strength - medium 750 [N/5cm]
- Conformity - EN 61386-22:2004+AC/A11:2011
- Colour - yellow
