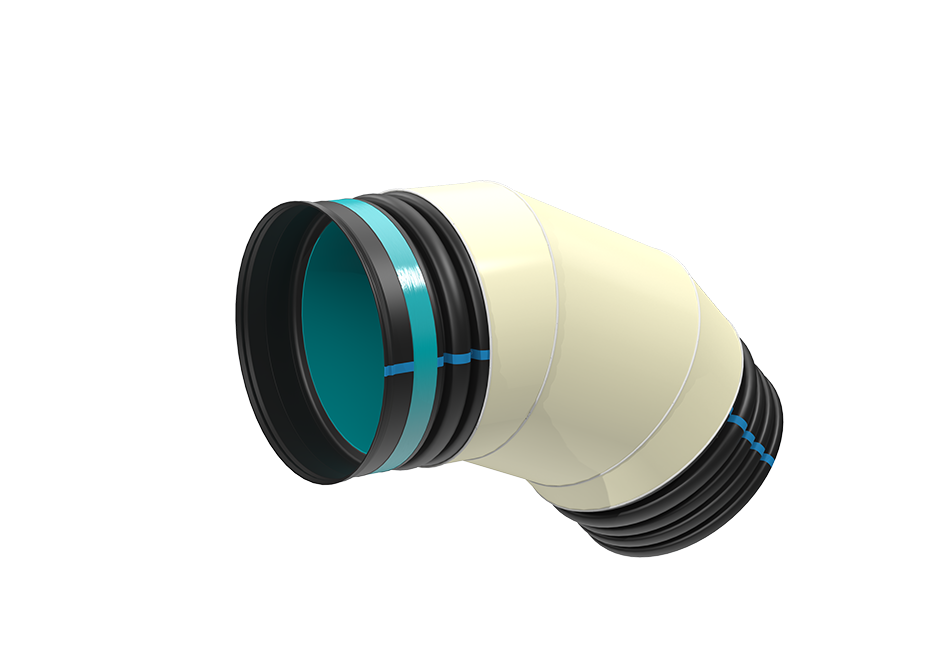

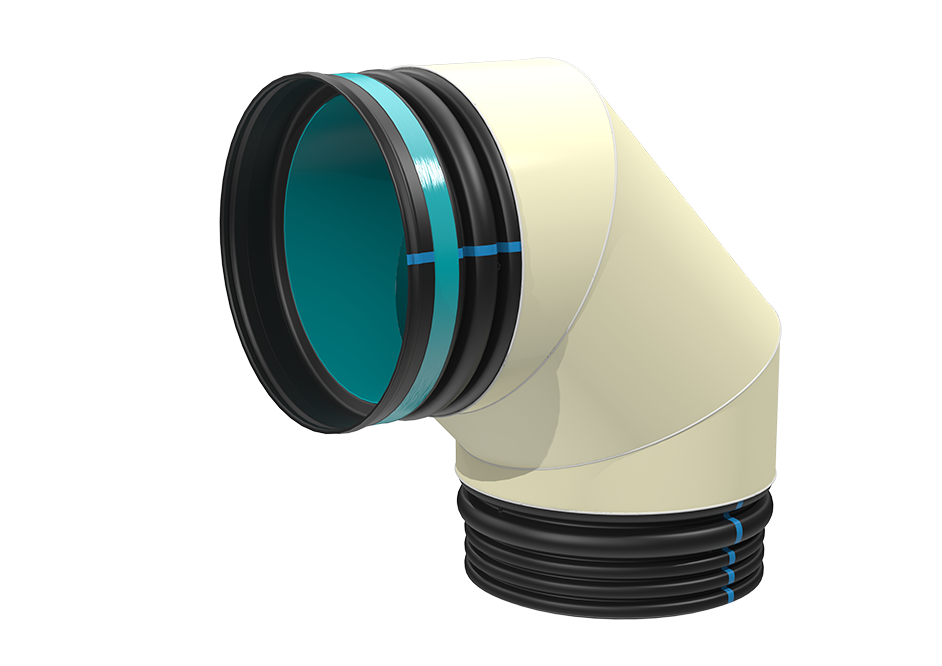

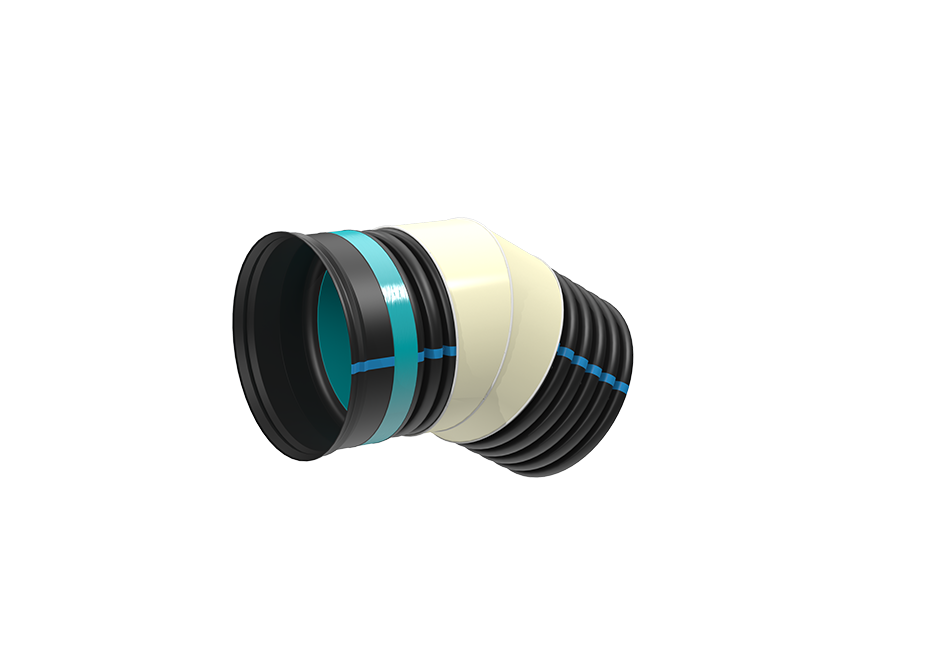

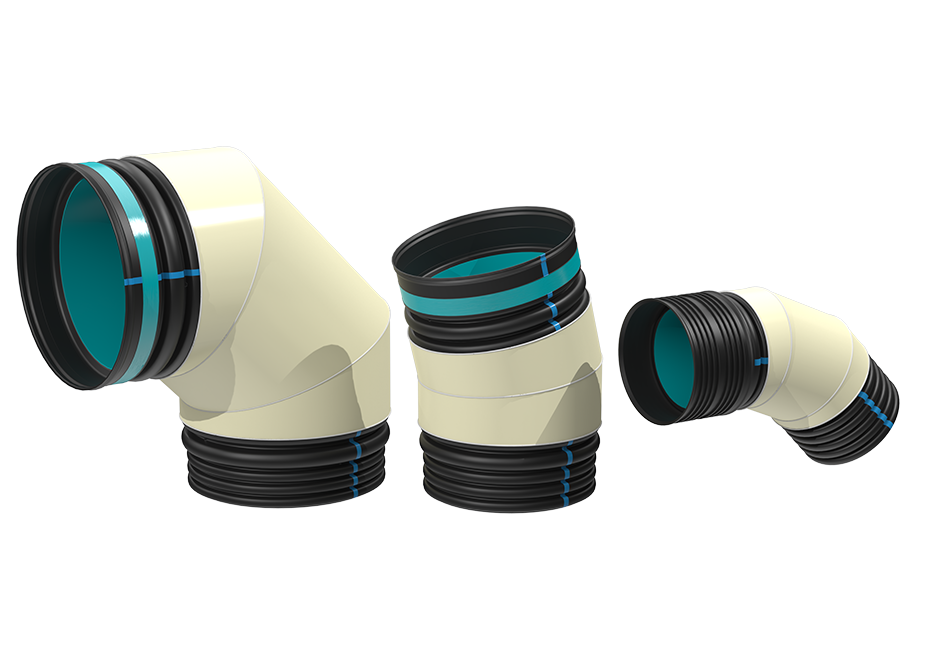

GIGAPIPE Elbow 15°, 30°, 45°, 90°

GIGAPIPE accessories

DN/ID 500 .. 1000 mm
GIGAPIPE Elbow 15°, 30°, 45°, 90°
GIGAPIPE Elbow 15°, 30°, 45°, 90°
GIGAPIPE Elbow 15°, 30°, 45°, 90°
GIGAPIPE Elbow 15°, 30°, 45°, 90°
GIGAPIPE Elbow 15°, 30°, 45°, 90°


Elbow for GIGAPIPE pipes

  • Downloads

    GIGAPIPE Catalogue ENG

    Pipeline system for construction of culverts, rain and waste water infrastructure

    Download

    Drawings of GIGAPIPE DN/ID 300, 400, 500, 600 elbows

    Dimensions of standard GIGAPIPE elbows

    Download

    Drawings of GIGAPIPE DN/ID 800, 1000 elbows

    Dimensions of standard GIGAPIPE elbows

    Download
GIGAPIPE Elbow DN/ID 300, 400, 500, 600 mm
  DN [mm] Configuration Code
Elbow 15°
300 Pipe socket / Pipe spigot 826010I300003D0299
400 Pipe socket / Pipe spigot 826010I400003D0099
500 Double socket / Pipe spigot 826010I500003D0099
600 Pipe socket / Pipe spigot 826010I600003002FH
Elbow 30°
300 Pipe socket / Pipe spigot 826010I300005D0299
400 Pipe socket / Pipe spigot 826010I400005D0099
500 Double socket / Pipe spigot 826010I500005D0099
600 Pipe socket / Pipe spigot 826010I600005D0299
Elbow 45°
300 Pipe socket / Pipe spigot 826010I300006D0299
400 Pipe socket / Pipe spigot 826010I400006D0099
500 Double socket / Pipe spigot 826010I500006D0099
600 Pipe socket / Pipe spigot 826010I600006D0099
Elbow 90°
300 Pipe socket / Pipe spigot 826010I300008D0299
400 Pipe socket / Pipe spigot 826010I400008D0099
500 Double socket / Pipe spigot 826010I500008D0099
600 Pipe socket / Pipe spigot 826010I600008D0099
GIGAPIPE Elbow DN/ID 800 mm
  DN [mm] Configuration Code
Elbow 15°
800 High profile socket / Low profile spigot 826010I80U003D0299
800 Low profile socket / High profile spigot 826010I80U703D0299
800 Low profile socket / Low profile spigot 826010I80U803D0299
800 High profile socket / High profile spigot 826010I80U903D0299
Elbow 30°
800 High profile socket / Low profile spigot 826010I80U005D0299
800 Low profile socket / High profile spigot 826010I80U705D0299
800 Low profile socket / Low profile spigot 826010I80U805D0299
800 High profile socket / High profile spigot 826010I80U905D0299
Elbow 45°
800 High profile socket / Low profile spigot 826010I80U006D0299
800 Low profile socket / High profile spigot 826010I80U706D0299
800 Low profile socket / Low profile spigot 826010I80U806D0299
800 High profile socket / High profile spigot 826010I80U906D0299
Elbow 90°
800 High profile socket / Low profile spigot 826010I80U008D0299
800 Low profile socket / High profile spigot 826010I80U708D0299
800 Low profile socket / Low profile spigot 826010I80U808D0299
800 High profile socket / High profile spigot 826010I80U908D0299
 GIGAPIPE Elbow DN/ID 1000 mm
  DN [mm] Configuration Code
Elbow 15°
1000 High profile socket / Low profile spigot 826010I10U003D0299
1000 Low profile socket / High profile spigot 826010I10U703D0299
1000 Low profile socket / Low profile spigot 826010I10U803D0299
1000 High profile socket / High profile spigot 826010I10U903D0299
Elbow 30°
1000 High profile socket / Low profile spigot 826010I10U005D0299
1000 Low profile socket / High profile spigot 826010I10U705D0299
1000 Low profile socket / Low profile spigot 826010I10U805D0299
1000 High profile socket / High profile spigot 826010I10U905D0299
Elbow 45°
1000 High profile socket / Low profile spigot 826010I10U006D0299
1000 Low profile socket / High profile spigot 826010I10U706D0299
1000 Low profile socket / Low profile spigot 826010I10U806D0299
1000 High profile socket / High profile spigot 826010I10U906D0299
Elbow 90°
1000 High profile socket / Low profile spigot 826010I10U008D0299
1000 Low profile socket / High profile spigot 826010I10U708D0299
1000 Low profile socket / Low profile spigot 826010I10U808D0299
1000 High profile socket / High profile spigot 826010I10U908D0299

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
