• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

Electrofusion reduction T-pieces are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions

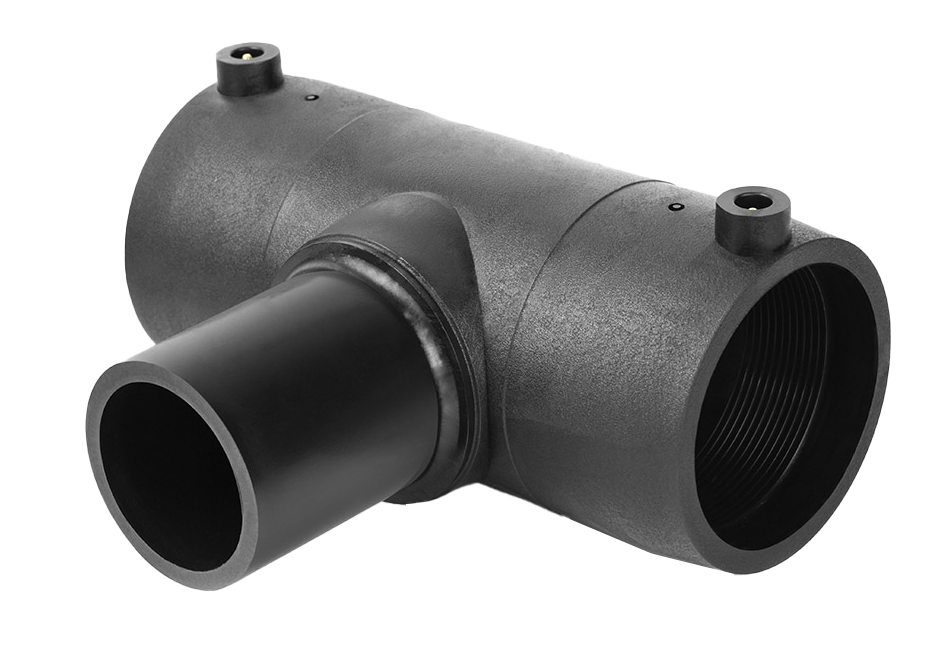

Standard T-piece
D1 [mm]	D2 [mm]	D3 [mm]	A [mm]	L1 [mm]	Weight [kg]
25	20	37	108	48	0.08
32	20	45	108	45	0.11
32	25	45	108	56	0.11
40	25	58	107	41	0.17
40	32	58	107	45	0.17
50	25	68	157	56	0.28
50	32	68	157	68	0.29
50	40	68	157	63	0.29
63	32	80	164	77	0.32
63	40	80	164	77	0.33
63	50	80	164	77	0.34
75	63	95	224	78	0.71
90	63	113	244	82	1.00
90	75	113	244	82	1.00
110	63	137	267	86	1.52
110	75	137	266	86	1.50
110	90	137	265	88	1.50
125	63	151	285	102	1.70
125	75	152	285	104	1.80
125	90	152	285	102	1.80
125	110	152	284	101	1.90
160	63	193	348	114	3.10
160	75	194	350	116	3.30
160	90	193	349	115	3.20
160	110	193	349	113	3.57
160	125	194	351	114	3.60

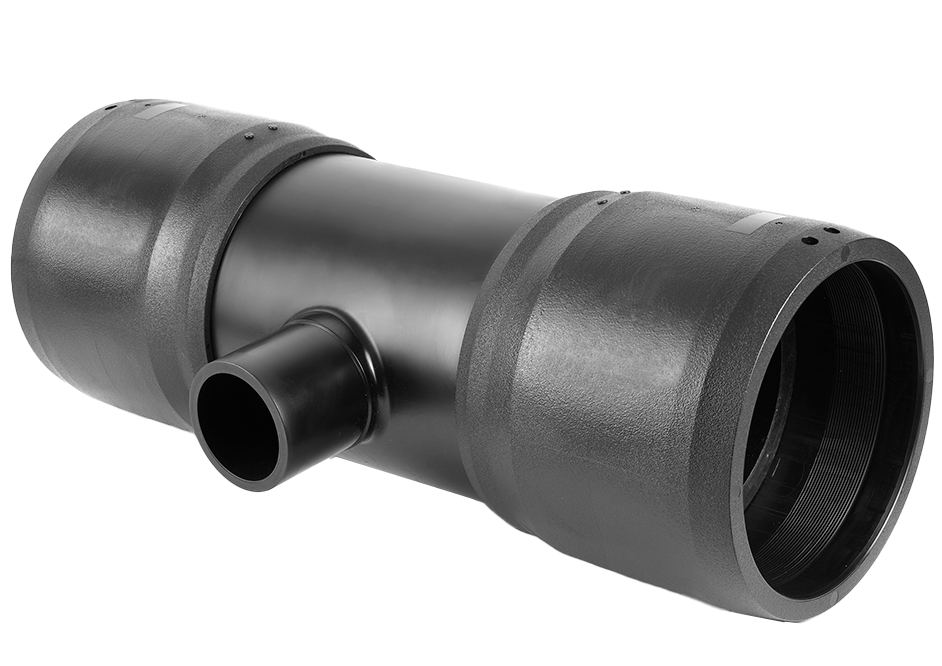

Special T-piece
D1 [mm]	D2 [mm]	D3 [mm]	A [mm]	L1 [mm]	Weight [kg]
200	90	238	741	96	11,52
200	110	238	696	86	11,41
200	160	238	691	101	11,74
225	90	266	665	79	15,88
225	110	266	671	85	16,33
225	160	266	709	98	15,70
250	110	299	790	90	17,00
250	160	299	790	107	18,56
315	110	379	922	90	32,21
315	160	379	923	106	38,06
315	250	379	931	150	39,00
