• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

Reduction sockets are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions

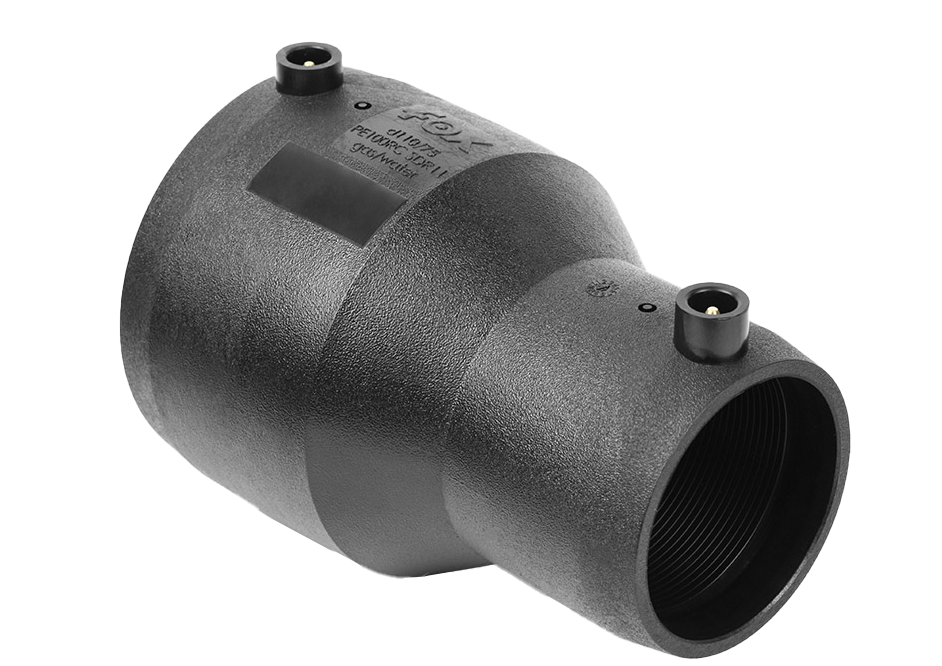

Standard reduction
D1 [mm]	D2 [mm]	A [mm]	D3 [mm]	D4 [mm]	Weight [mm]
25	20	84	35	35	0,05
32	20	87	45	37	0,06
32	25	87	45	38	0,06
40	25	87	57	37	0,10
40	32	92	52	42	0,07
50	25	85	68	46	0,13
50	32	117	65	43	0,11
50	40	87	68	57	0,14
63	25	113	82	45	0,21
63	32	127	82	47	0,20
63	40	110	81,5	58	0,19
63	50	122	82	66	0,21
75	63	128	100	82	0,38
90	63	168	115	82	0,48
90	75	161	112	95	0,45
110	63	180	135	82	0,61
110	75	163	140	100	0,82
110	90	175	135	111	0,68
125	63	198	151	83	0,77
125	90	181	151	112	0,83
125	110	181	151	135	0,88
160	90	231	195	133	1,97
160	110	231	195	136	1,69
160	125	201	196	153	1,57
180	125	210	220	153	1,87
200	125	227	238	152	2,03
200	160	226	239	196	2,39
200	180	225	238	213	2,39
225	160	260	266	196	3,38
225	180	251	266	214	3,15
225	200	250	266	239	3,42

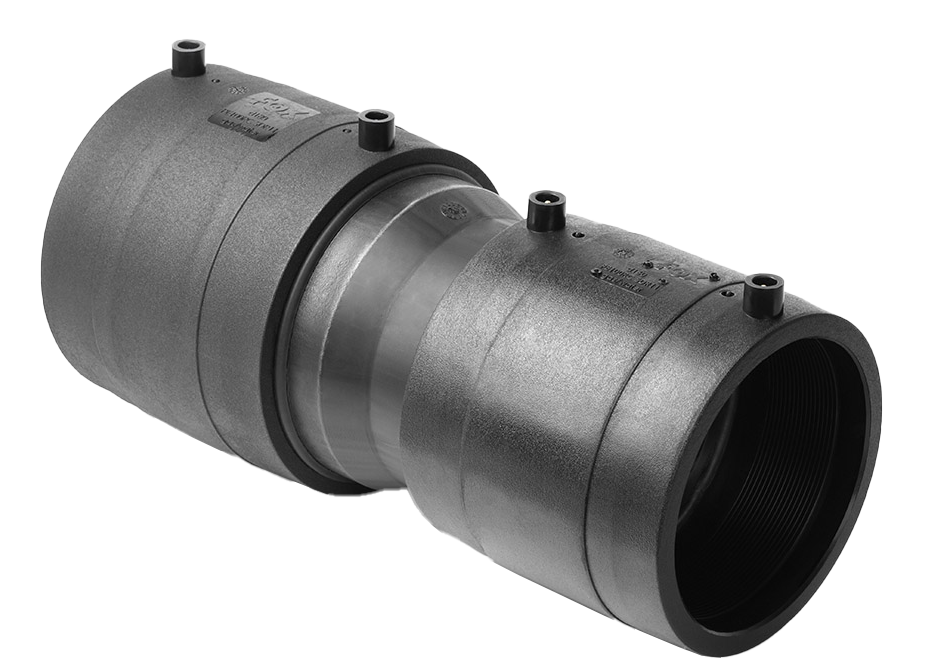

Special reduction
D1 [mm]	D2 [mm]	A [mm]	D3 [mm]	D4 [mm]	Weight [mm]
180	160	463	213	195	5,44
250	160	518	295	195	10,08
250	200	533	295	238	10,47
250	225	555	295	266	12,19
