• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

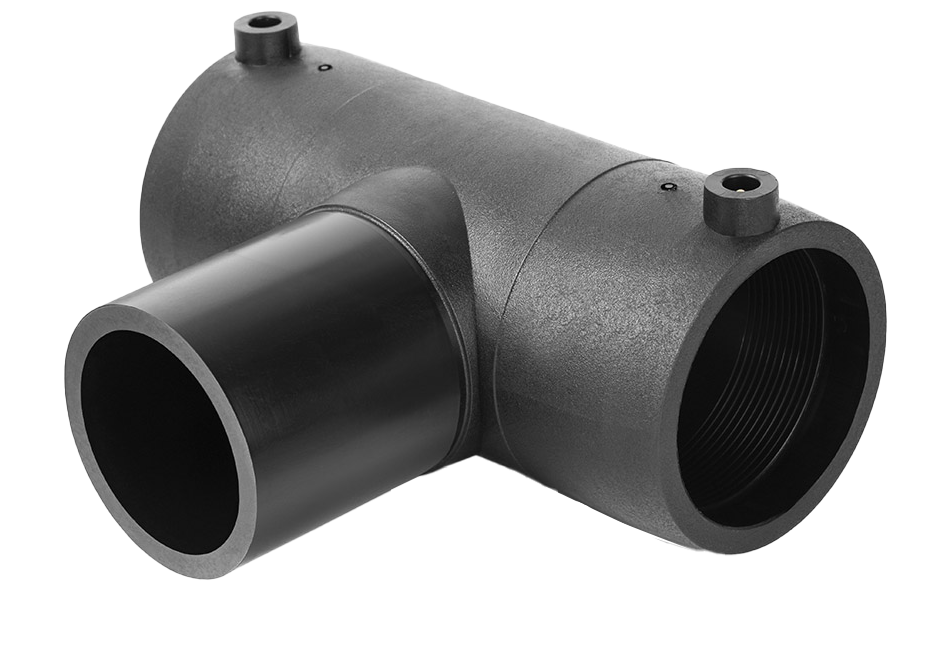

T-pieces are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	A [mm]	D3 [mm]	L1 [mm]	Weight [kg]
20	107	37	48	0,09
25	108	37	44	0,08
32	108	45	44	0,11
40	108	58	50	0,18
50	145	66	74	0,252
63	164	80	77	0,37
75	225	96	82	0,73
90	244	112	88	1,01
110	267	136	96	1,50
125	285	152	101	2,05
160	351	193	114	3,86
180	390	223	112	5,87
