• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

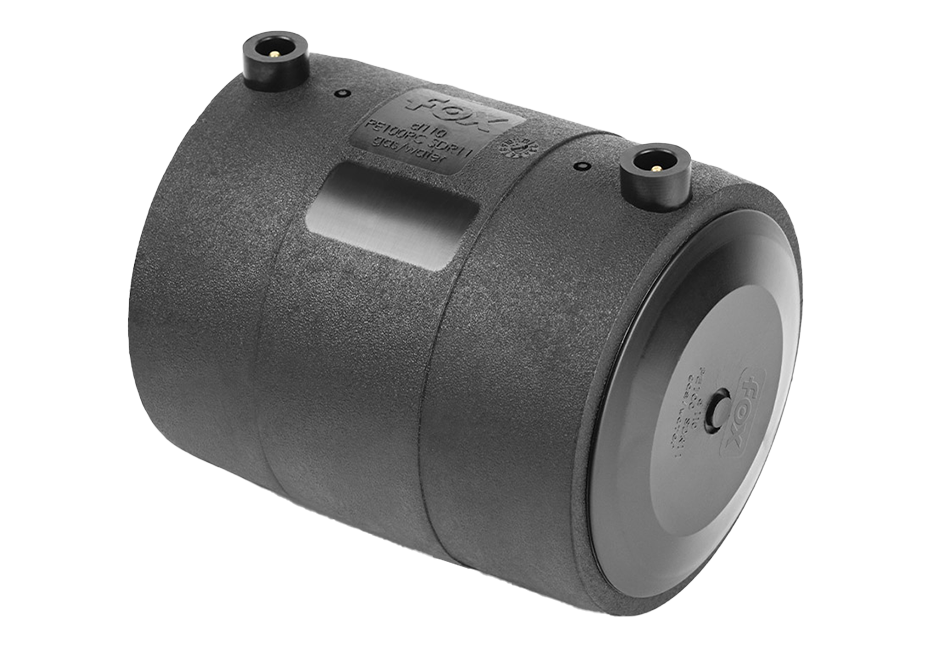

Electrofusion end caps are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	A [mm]	D3 [mm]	Weight [kg]
20	88	35.5	0.07
25	88	35.5	0.06
32	88	42.5	0.08
40	96	52.5	0.11
50	97	64	0.15
63	118	79	0.23
75	139	97	0.49
90	154	112	0.68
110	164	134	1.07
125	170	152	1.42
140	179	168	1.85
160	178	195	2.63
180	260	213	3.19
200	275	238	4.00
225	314	266	5.85
250	331	295	6.71
280	363	336	10.11
315	386	379	14.21
355	439	425	19.29
400	470	476	23.82
450	325	537	40.65
500	383	600	55.54
