• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

PE/brass transition fittings are used in installations distributing gas and water.

• Material - Polyethylene PE100-RC
• Work pressure water systems - 16 [bar]
• Work pressure gas systems - 10 [bar]
• Treads comply with EN10226-1

Product dimensions

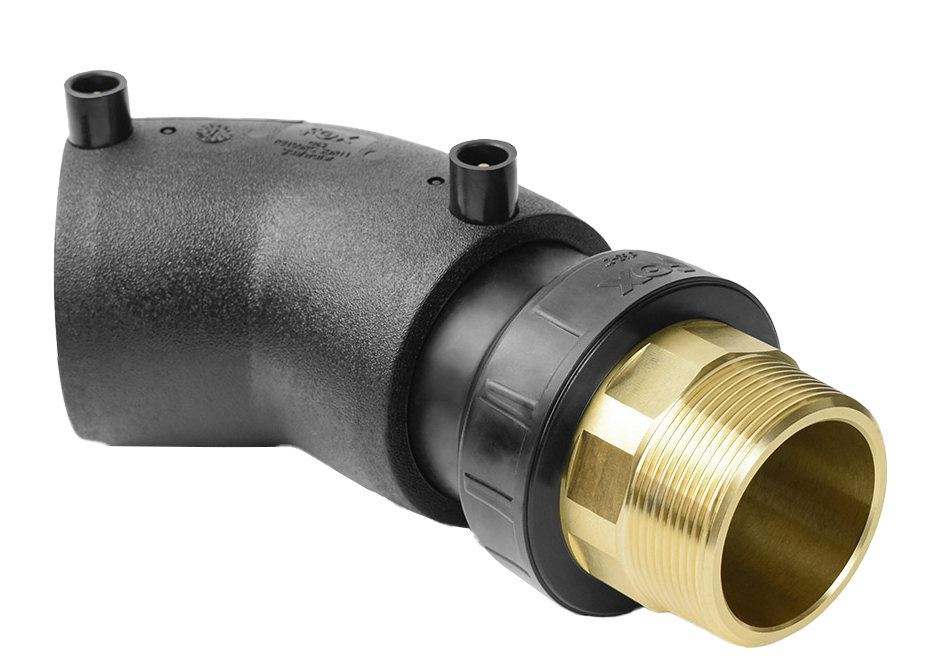

External thread (male)
D1 x D2 [mm]	C [mm]	D3 [mm]	A [mm]	B [mm]	Weight [kg]
20 x ½"	22	35	147	67	0.15
25 x ¾"	28	37	150	71	0.14
32 x 1''	34	44	163	78	0.25
40 x 1''	34	56	177	86	0.33
40 x 1¼''	44	56	184	88	0.42
50 x 1¼''	49	67	201	97	0.54
63 x 2''	61	81	231	115	0.94
75 x 2½"	76	93	272	142	1.37
90 x 3''	88	112	306	165	2.03
110 x 4''	114	135	344	189	3.29
125 x 4''	114	151	263	210	3.64

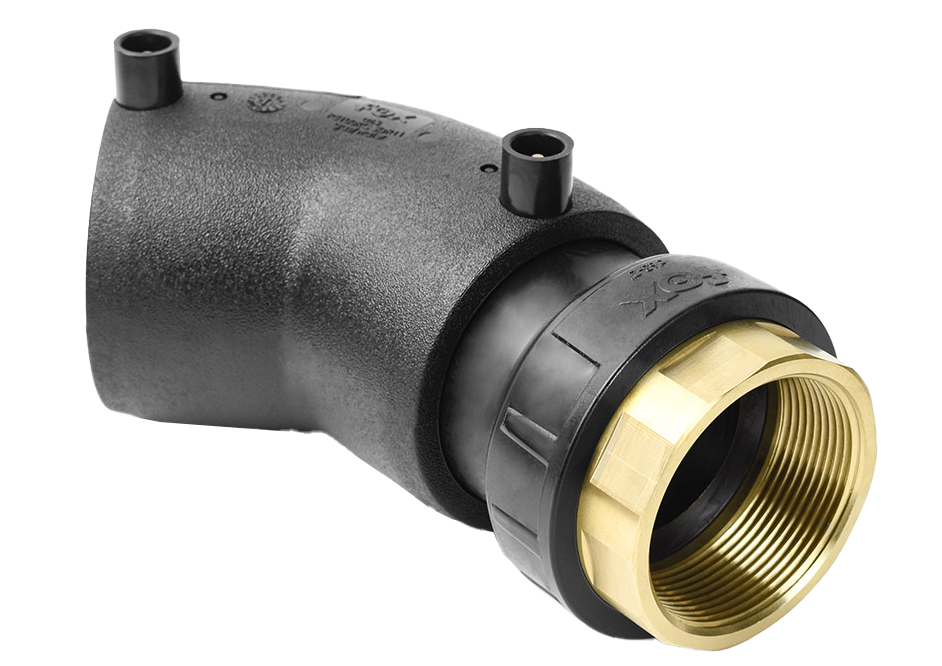

Internal thread (female)
D1 x D2 [mm]	C [mm]	D3 [mm]	A [mm]	B [mm]	Weight [kg]
20 x ½"	26	35	133	67	0.14
25 x ¾"	32	37	135	71	0.15
32 x 1''	40	44	145	78	0.22
40 x 1''	40	56	159	86	0.29
40 x 1¼''	48	56	167	89	0.34
50 x 1¼''	55	67	181	98	0.46
63 x 2''	67	81	207	116	0.68
75 x 2½"	83	93	245	145	1.06
90 x 3''	96	112	278	165	1.65
110 x 4''	122	135	308	189	2.44
125 x 4''	122	151	327	210	2.79
