• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

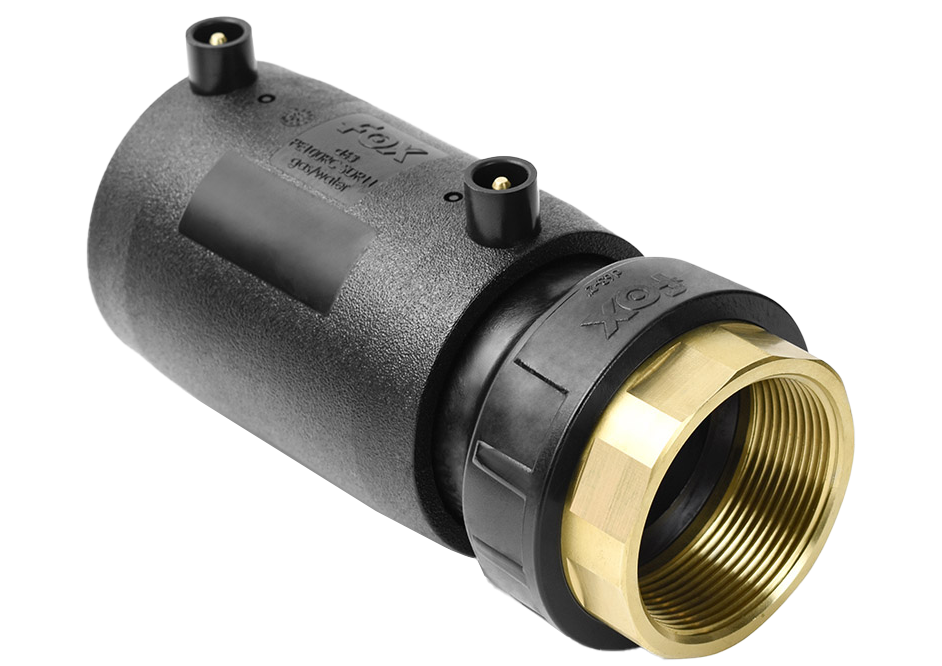

PE/brass transition fittings are used in installations distributing gas and water.

• Material - Polyethylene PE100-RC
• Work pressure water systems - 16 [bar]
• Work pressure gas systems - 10 [bar]
• MRS: 10 [MPa]
• Treads comply with EN10226-1

Product dimensions
External thread (male)
D1 x D2 [mm]	C [mm]	D3 [mm]	A [mm]	Weight [kg]
20 x ½"	22	35	134	0.14
25 x ¾"	28	36	136	0.17
32 x 1''	34	43	146	0.24
40 x 1''	34	53	154	0.36
40 x 1¼''	44	53	160	0.27
50 x 1¼''	49	64	170	0.47
63 x 2''	61	79	197	0.85
75 x 2½"	76	96	226	1.31
90 x 3''	88	112	250	1.90
110 x 4''	114	134	276	3.05
125 x 4''	114	152	280	3.34
Internal thread (female)
D1 x D2 [mm]	C [mm]	D3 [mm]	A [mm]	Weight [kg]
20 x ½"	26	35	120	0.13
25 x ¾"	32	36	121	0.14
32 x 1''	40	43	126	0.19
40 x 1''	40	53	135	0.23
40 x 1¼''	48	53	143	0.28
50 x 1¼''	55	64	150	0.39
63 x 2''	67	79	173	0.59
75 x 2½"	83	96	198	1.00
90 x 3''	96	112	222	1.52
110 x 4''	122	134	239	2.20
125 x 4''	122	152	244	2.49
